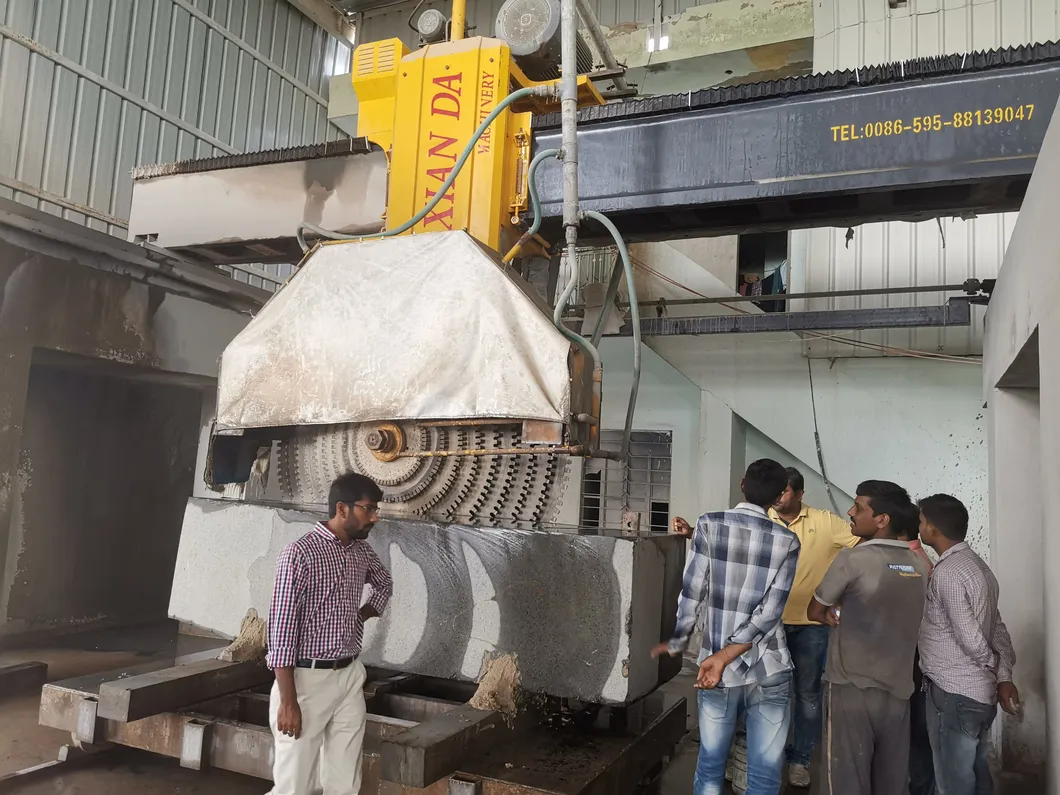

multi-blade large stone block cutting machine
marble granite block cutter
BTC-2500/2800 uses inverter to control left-right feeding adjusts the speed
according to the stone material.It uses hydraulic lifting
system(screw lifting system optional),forward-backward slicing uses
high-precision screw nut driving,automatic slicing,main spare parts
adopt imported good-quality materials;The block can be placed in
the ground directly to save worktable and its maintenance
costs;Thus the whole machine is featured as high cutting
efficiency,high slicing precision,flatness of plate after
cutting,high stability,easy-operating to suit specially cutting
granite and marble block with high wave.
Product Parameters
| Parameter | Unit | BTC-2200 | BTC-2500 | BTC-2800 |
| Max blade diameter | mm | φ2200 | φ2500 | φ2800 |
| Max processing length | mm | 3800 | 3500 | 3200 |
| Max processing width | mm | 2200 | 2200 | 2200 |
| Max lifting stroke | mm | 1320 | 1320 | 1320 |
| Main motor | kw | 45/55 | 45/55 | 55/65 |
| Gross motor | kw | 57/67 | 57/67 | 67/77 |
| Outline dimension | mm | 8000*4800*3700 | 8000*4800*3700 | 8000*4800*3700 |
| Water consumption | m³/h | 15 | 15 | 15 |
| Gross weight | kg | 14000 | 14500 | 15000 |
Detailed Photos
Packaging & Shipping
Company Profile
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and tools in
China, established in 1985 and covers 20,000m³ area which located
in Jinjiang Wuli lndustrial area, nearby the longest and oldest
stone bridge in the world, named "Wuli Bridge" and next to biggest
stone market in the world- Shuitou.
With more than 34 years' experience specializing in developing and
producing a series of diamond wire saw machine, column processing
machine, bridge cutting machine, carving machine, profiling linear
machine, baluster machine, etc. We occupied around 80% market in
China for column processing machines, and own more than 30 overseas
countries users.
Since its foundation in 1985, we keep"Top Technology and Superior
Quality"as our standard for all machines and got CE, ISO Quality Gold Award , etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise
Credit Evalution" , etc for company.And we are always the sponsor
for education as our CEO Mr Roy is enthusiastic about the public
welfare establishments.
Xianda always keep"Creat the highest value of your stone"as
purpose,your visiting and contacting is always welcomed.
Certifications
Our Advantages
| Manufacturer Profiles | Quality Control |
*We are the Top 10 stone cutting machine manufacturer with ISO & CE
certificate since 1985.
*We own 70% China market share at special shape stone cutting
machine series.
*We are a company which is specially for producing stone machines
for exporting. | *We have our own experienced QC.
*Our machine will be strictly inspected.
*We will provide a Testing Video for each machines before shipping
out if required by customer. |
| Delivery time | Warranty |
| *Based on order quantity, normally three weeks against payment. | *All the machines have one year warranty. |
After-sales service 24 hour on line.
We will service staff training, so that continuously improve the
overall quality of service.
We are responsible for receiving and processing customers on
product quality and service quality complaints;
We have professional and technical personnel to guide the
installation and commissioning of your machine and operator
training.
FAQ
Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years
Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service
Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines
,big arc shaped slabs and special stone shapes.
