Description:

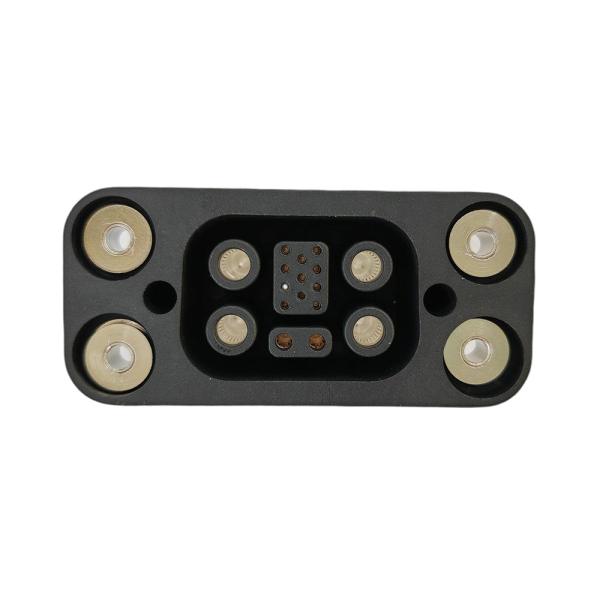

The Neopower 80A High Power BESS Connector is the definitive solution for large-scale and high-demand Battery Energy Storage Systems. Engineered to handle a formidable 1500V DC and 80A of continuous current, this heavy-duty connector provides a secure and efficient power bridge between stacked battery modules. It addresses the critical need for a simplified, scalable, and robust connection in commercial and residential solar storage systems. By replacing cumbersome traditional wiring, the Neopower modular power connector drastically reduces assembly time and improves overall system reliability and safety.
Features:
-
High Power Performance: Capable of handling up to 1500V DC and 80A, making it ideal for energy-dense storage applications.
-
Integrated Temperature Sensing: Features an optional NTC (Negative Temperature Coefficient) thermistor, allowing for real-time thermal monitoring to enhance battery management and system safety.
-
Superior Conductivity & Longevity: Silver-plated brass terminals offer minimal electrical resistance and superior corrosion protection, ensuring maximum efficiency and a long service life.
-
Flexible and Fast Assembly: Designed for modularity, this connector allows for effortless system upgrades and maintenance, significantly improving upon traditional wiring harnesses.
-
Extreme Environment Ready: With a wide operating temperature range of -40°C to 125°C and an IP67 waterproof rating, it is built to perform reliably in harsh indoor and outdoor conditions.
-
Uncompromised Safety: The UL94-V0 rated Nylon housing provides the highest degree of flame retardancy, guaranteeing safety and peace of mind.
Application:
Specifically designed for high-performance and safety-critical systems, including:
-
Large-Scale Residential Solar Battery Banks
-
Commercial & Industrial Energy Storage Systems (BESS)
-
Uninterruptible Power Supplies (UPS)
-
Data Center Battery Backup Systems
-
Heavy-Duty DC Power Distribution
Parameters:
| Specification | Value |
| Rated Current | 80A |
| Rated Voltage | 1500V DC |
| IP Rating | IP67 |
| Fire Resistance Rating | UL94-V0 |
| Operating Temperature | -40°C to +125°C |
| Housing Material | Nylon |
| Hardware Material | Brass |
| Surface Coating | Silver Plated |
| Wire Range | 8-10AWG / 12-14AWG / 20-22AWG |
| Optional Feature | NTC Thermistor Integration |
| Salt Spray Resistance | 96H |
| Overvoltage Rating | Category II |
| Pollution Level | Level II |
Product Pictures:
Company Profile
NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.
NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.
Certifications & Approvals
The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
