250mm Extra-Deep HDPE Welded Geocell for Extreme Load Applications With 12kN/m Peeling Strength 25kN/m Tensile Strength In German
GEOMAX® GEOCELL PRODUCT INTRODUCTION
GeoMax® Geocell: Engineered for Performance.

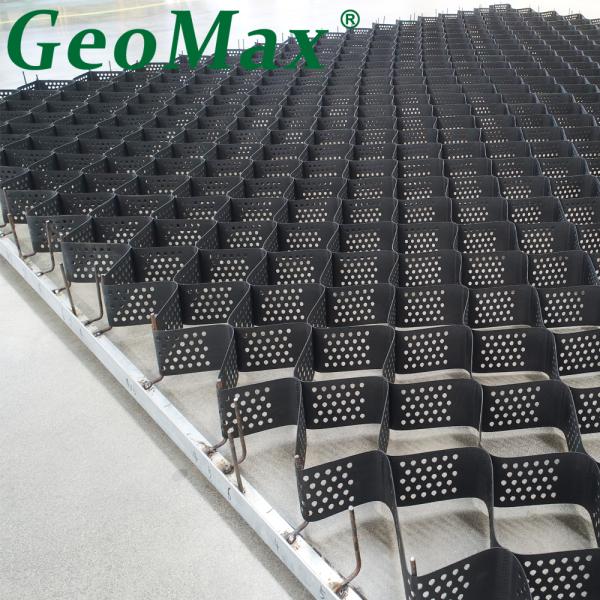

This high-strength, 3D cellular confinement system, made from ultrasonically welded HDPE, creates a stable honeycomb matrix that is filled with sand, soil, or local aggregates. It delivers superior load distribution and erosion control for infrastructure projects.
By choosing GeoMax® Geell, you can:
-
Reduce project costs and material usage.
-
Accelerate construction timelines.
-
Minimize environmental impact.
Achieve durable, sustainable, and cost-effective results with GeoMax® Geocell.
| Index Properties | Test Method | Units | Values |
| Material | - | - | 100% Virgin HDPE |
| Carbon Black content | ASTM D 1603 | % | ≥1.5 |
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 |
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 |
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 |
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 |
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 |
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 |
| |
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 |
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 |
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 |
| Dimensions |
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 |
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 |
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 |
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
DETAILED PHOTOS
APPLICATIONS
