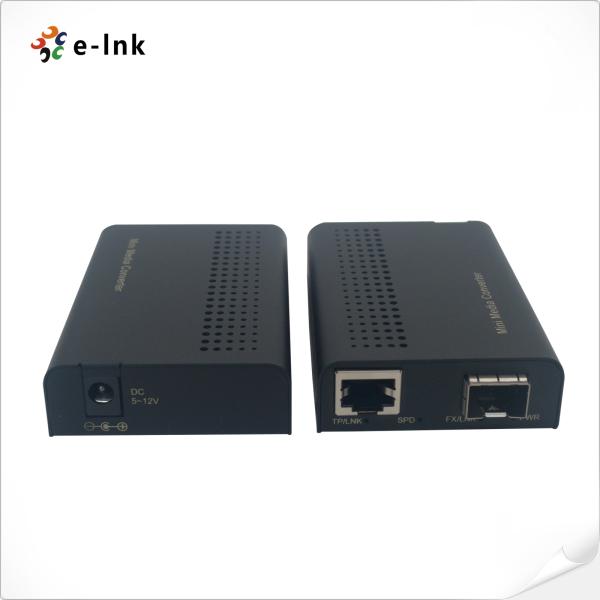

Mini 10/100Base-TX to 100Base-SFP Media Converter
Mini 10/100Base-TX to 100Base-SFP Media Converter Advantage
► 10/100Base-TX UTP to 100Base-FX fiber media converter
► Support IEEE802.3 & 802.3U Fast Ethernet Standards
► SFP Port
► DIP switch to set different configuration
► LFP (Link Fault Pass-through) support
► Support jumbo frame
► Compact package size
Mini 10/100Base-TX to 100Base-SFP Media Converter Overview
The mini 10/100Base-TX to 100Base-FX SFP media converter is fully compliant with IEEE 802.3 & 802.3u
Fast Ethernet Standards. The converter can support auto MDI-MDIX function, flow control
for full and half
duplex operation, etc.
A DIP switch is placed at the bottom of the case. Depend on
different configurations; the user can set the
different operating mode (Force FX to 100M, pass through mode,
etc).
Mini 10/100Base-TX to 100Base-SFP Media Converter Technical Indexes
Parameter | Specifications |
Access mode | 10/100Mbps |
Standard | IEEE802.3, IEEE802.3u |
100Base-FX |
Wavelength | 850nm/1310nm/1550nm |
Transmission distance | Multi-mode:
62.5/125μm fiber: 220m;
50/125μm fiber: 550m |
single mode:
20/40/60/80/100 km; |
Cat-5 twisted pairs: 100m |
Conversion means
| Store and Forward mode or Cut-Through mode |
Flow control | Full duplex: flow control; |
Half duplex: back pressure |
Input voltage | DC 5V~12V |
Power consume | <3W |
Operating temperature | 0~50ºC |
Operating humidity | 5%~90% |
Maintaining temperature | -40~70ºC |
Maintaining humidity | 5% ~ 90% non-condensing |
Dimensions | 58 (W) x 20 (H) x 90 (L) (mm) |
Mini 10/100Base-TX to 100Base-SFP Media Converter Ordering
Information
Item | Description |
|
LNK-MN-100MC-SFP | Mini 10/100Base-TX to 100BASE SFP Media Converter, excl. SFP
modules, standalone, external power adaptor |
