TR Shear Pumps – Efficient Drilling Fluid Handling & Mixing
Solutions

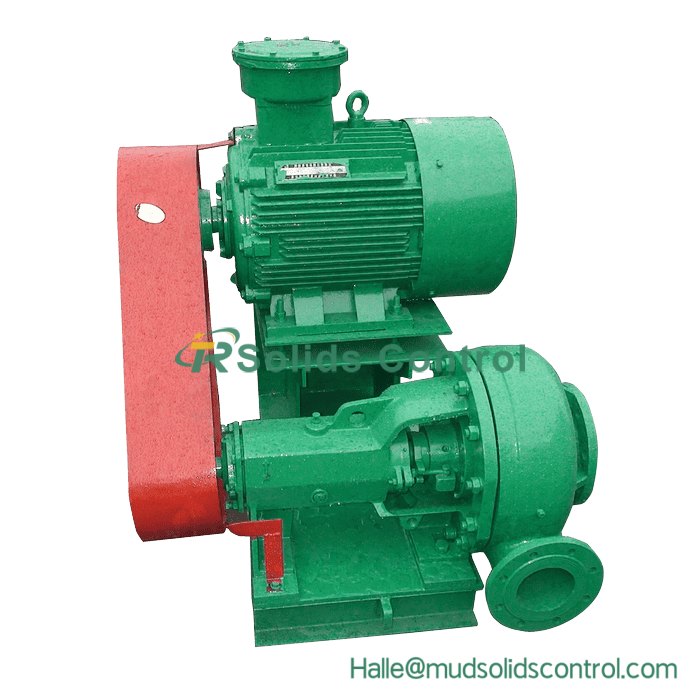

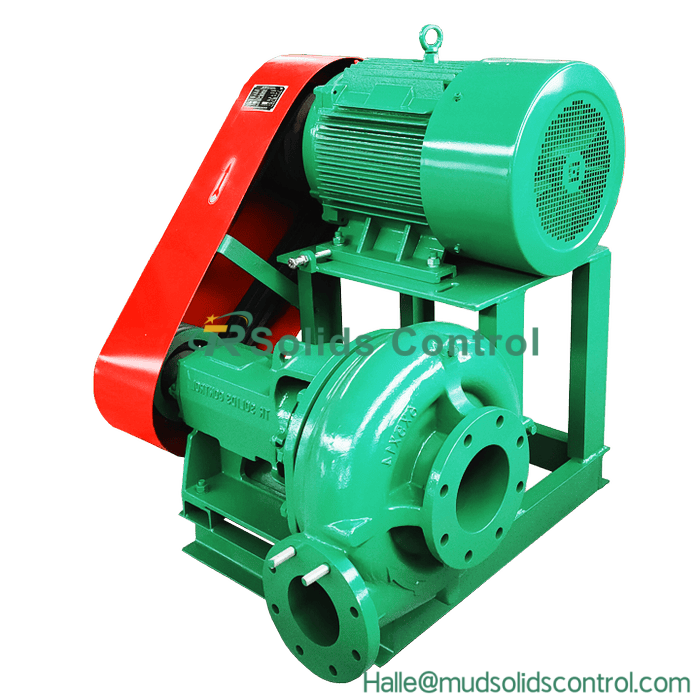

The TRJQB6545 shear pump is a high-performance drilling fluid
handling equipment designed for rapid mixing, shearing, and
suspension of drilling fluid materials. The pump adopts a high-flow
circulation and strong shear structure, which can effectively
handle high-viscosity slurry, avoid solid-phase deposition, and
ensure stable drilling fluid performance. Suitable for oil
drilling, horizontal directional drilling (HDD), mine mud
circulation and other industrial fields, it is ideal for demanding
fluid handling applications.
Product Features and Advantages
✔ Efficient shearing and mixing – Powerful impellers and optimized runner design for fast mixing
and uniform shear for improved drilling fluid performance.
✔ Wear-resistant structural design – Overflow components are lined with high chromium alloy or rubber
to resist wear and corrosion, extending service life.
✔ Heavy-duty mechanical seals – German/Japanese brand mechanical seals are selected, which are
suitable for high pressure and high frequency working conditions,
with low leakage rate and reliable operation.
✔ Maintenance-friendly construction – Modular design allows for quick replacement of impellers, seals,
and other components, reducing downtime.
✔ Strong motor and electrical compatibility – supports a variety of explosion-proof motors and variable
frequency control, adapting to different drilling rig power
systems.
✔ Low vibration and smooth operation – the rotor has high dynamic balancing accuracy, low working noise
and strong stability.
Technical Specifications
Model | TRJQB6545 |
Capacity | 150m3/h |
Head | 45m |
Motor | 55KW |
Weight | 980kg |
Dimension | 1050*1000*1360 |
Technical advantages
✔ High-efficiency hydraulic design, low energy consumption, large
output flow;
✔ The impeller and the pump body are matched with special
materials, taking into account wear resistance and corrosion
resistance;
✔ Support frequency conversion control, which is convenient to
adjust the flow rate and pressure and adapt to the needs of
different working conditions.
✔ Compact and flexible installation, suitable for both stationary
and mobile slurry systems;
Typical applications:
✔ Drilling fluid preparation and circulation system at oil drilling
well sites
✔ Horizontal directional drilling (HDD) mud mixing and recovery
✔ Slurry preparation and conveying in mine mining
✔ Shield construction mud circulation and regulation
✔ Sludge treatment and mixing process in environmental protection
projects
Why Choose TRJQB6545 Shear Pumps?
TRJQB6545 shear pumps, with their excellent mixing efficiency,
reliable mechanical structure, and wide applicability, have become
indispensable key equipment in drilling fluid treatment systems.
Its optimized hydraulic performance and long-life design not only
improve drilling efficiency, but also significantly reduce
maintenance costs and downtime. Many oilfield, HDD project and mine
customers trust the TR brand because of our consistent high-quality
manufacturing and timely service response.
About TR Solids Control
TR Solids Control is a professional manufacturer specializing in
drilling fluid solid control equipment and fluid handling
solutions, covering vibrating screens, desand and silting devices,
centrifuges, shear pumps, mixing systems, etc., which are widely
used in the oil, gas, trenchless and geothermal drilling
industries. The company has passed the ISO9001 quality management
system certification, and its products meet international standards
such as API and CE, and are exported to more than 60 countries and
regions around the world.
