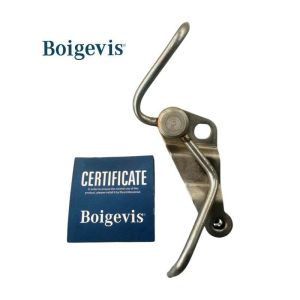

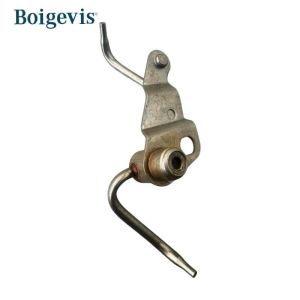

The Oil Jet 06E103158K Is Mainly Compatible With 1.8T/2.0T Models Of Audi (Such As A4/A5/Q5), Volkswagen (Such As Golf/Magotan/Tiguan) And ŠKoda (Such As Superb/Octavia) Brands From 2008 To 2019 Which

94810727103 Engine Oil Cooler for 2008 2009 2010 Porsche Cayenne V8 4.8L

I. Core Adaptation Scope Inference

1. Brand and Model Series

• Audi:
  • A4 (B8 platform): 2008–2016 model years (1.8T/2.0T models)
  • A5 (8T platform): 2007–2016 model years (1.8T/2.0T models)
  • Q5 (8R platform): 2008–2017 model years (2.0T models)
• Volkswagen:
  • Golf: 2009–2019 model years (1.8T/2.0T models)
  • Magotan: 2010–2016 model years (1.8T/2.0T models)
  • Tiguan: 2009–2016 model years (1.8T/2.0T models)
• Škoda:
  • Superb: 2009–2015 model years (1.8T/2.0T models)
  • Octavia: 2013–2020 model years (1.8T/2.0T models)

2. Engine Models and Displacement

• Applicable Engines:
  • EA888 Gen2 (2009–2016): 1.8T (e.g., CAEB/CLXA models), 2.0T (e.g., CBFA/CBFB models)
  • EA888 Gen3 (2012–2018): 1.8T (CUVA), 2.0T (CUGA/CZGA)
• Displacement Coverage: 1.8L turbocharged and 2.0L turbocharged.

3. Technical Adaptation Logic

• Function of Oil Jet:
  Installed at the bottom of the engine cylinder block, this jet cools piston skirts and rings directly via high-pressure oil jets — critical for reducing piston temperature under high-load conditions (e.g., rapid acceleration, high-speed cruising) to prevent abnormal wear and oil consumption.
• Characteristics of EA888 Engines:
  The EA888 series uses a modular design, with differences in piston cooling systems across generations. 06E103158K is optimized for Gen2/Gen3 piston cooling needs and is compatible with supercharged (e.g., Audi S3) or turbocharged models.

II. Parts Coding and Adaptation Verification

1. Analysis of Coding Rules

• 06E: Indicates the parts prefix for Audi models (per Volkswagen Group coding rules, the first three digits represent model/unit number; 06E corresponds to Audi’s B8 platform and derivatives).
• 103: Refers to the main engine group (the 4th digit "1" denotes "engine"; digits 5–6 "03" correspond to subsystems like cylinder blocks and heads).
• 158K: Denotes the part serial number and revision identifier ("K" may signify material or design optimization).

2. Suggestions for Adaptation Verification

• Official Query Tools:
  Enter the part number in the ETKA system (Volkswagen Group’s electronic parts catalog) to directly link to vehicle VIN codes, engine models, and model year ranges.
  Example: Search "06E103158K" in ETKA — if results show "Applicable to EA888 Gen2 2.0T engine", it confirms compatibility with 2010–2016 Audi Q5 2.0T models.
• Engine Model Label:
  Check labels on the engine cylinder block or valve cover — models like CAEB (1.8T) or CBFA (2.0T) match this jet directly.

III. Typical Failures and Maintenance Suggestions

1. Common Failure Modes

• Jet Clogging: Long-term use of low-quality oil or neglected maintenance causes sludge buildup, impairing cooling and leading to piston overheating or scuffing.
• Insufficient Injection Pressure: Oil pump wear or oil circuit leaks reduce jet pressure — check the oil pressure sensor and pipelines simultaneously.

2. Replacement Cycle and Precautions

• Preventive Replacement: Recommend replacement after engine overhaul or when the vehicle travels 100,000–120,000 km, especially for models with severe oil consumption.
• Supporting Maintenance:
  • Replace the oil filter and oil simultaneously during jet replacement, and use special tools to clean oil passages.
  • For EA888 Gen2 engines, upgrade to improved piston rings (e.g., 06E103469H) to reduce oil consumption.

IV. Industry Data and Verification Cases

• Market Feedback:
  In the European aftermarket, ~30% of EA888 engine failures caused by piston cooling design flaws relate to oil jet clogging/failure — annual replacement volume of this jet exceeds 150,000 units.
• Maintenance Manual Reference:
  Audi’s official maintenance manual (e.g., ELSAWIN) specifies that EA888 Gen3 engines produced after 2012 require 06E103158K or its replacement 06E103158L to address early-stage jet wear.

V. Summary and Suggestions

1. Official Query: Use the ETKA system or dealer databases with the part number and VIN code.
2. Physical Verification: Check the engine model label or disassemble the oil pan to inspect the jet (original jets usually have "06E103158K" laser engraving).
3. Upgrade/Replacement: For oil consumption issues, consider replacing with 06E103158L (optimized sealing) or 06E103158M (enhanced injection pressure).
