Stage lighting - FINE 1400 PERF
Product Introduction
This flagship moving-head spotlight shatters optical and mechanical
boundaries. Powered by a 1,400W OSRAM SSR light source, it
unleashes 26,000 lumens of pure radiance. Coupled with a
7-color mixing system (CMY + CTO + independent
cyan/magenta/amber), it achieves laboratory-grade color
precision—CRI 93 / TLCI 96 ensures hyperrealistic scene
reproduction in broadcast environments, rendering textures from
skin pores to silk sheen with microscopic fidelity.
Revolutionary Dual-Optics Architecture
✓ Beam Mode: 0.3° ultra-tight beam angle cuts through 300m of haze
with diamond-like sharpness
✓ Pattern Mode: Patented dual-turbo system synchronizes 11+17
bi-rotating metal/glass gobos (including dynamic fission effects)
✓ Optical Fusion: Seamless 0.1s morphing between beam, pattern, and
wash
Engineering-Grade Motion Precision
• 600g lens assembly achieves 400mm/s² acceleration (defying
gyroscopic inertia limits)
• 640° pan / 540° tilt range (0.002° micro-step positioning)
• Tri-axis anti-shake compensation eliminates beam tremors during
high-speed movement
Innovative Effects Matrix
- Holographic Prisms: Independently rotating 4/8/16 prism +
adjustable diffusion
- Dynamic Iris: 0.4s transition from 5% pinhole to 100% full open
- 20-step CTO filter (2800K–8500K)
- 3D Pixel Mapping Engine for spatial trajectory pre-programming
All-Terrain Performance Design
IP54-rated body (hot-swappable modules IP65 front) withstands stage
pyro residue
Dual-loop liquid cooling maintains optics ≤45°C (noise <37dB)
Mil-spec connectors endure 2,000 rough plug/unplug cycles
Intelligent Ecosystem Integration
▸ Art-Net 3.0 supports 1024-channel granular control
▸ Preloaded MA/AVO/HOG native profiles
▸ Power Sense chip auto-adapts to 100–240V surges
▸ RFID chips embedded per unit for rapid warehouse inventory
Dominance by Specification
• Blackout Dimming: 0.01%–100% smooth gradient (16-bit resolution)
• Strobe: 1–25Hz arbitrary split-pulse sequencing
• Power Draw: 12A@220V at full load
• Weight: 23.8kg (flight case <45kg)
Engineered to conquer:
◆ Broadway dynamic chase sequences
◆ Stadium 360° immersive light sculpting
◆ Film festival AR virtual production
◆ Immersive theatre spatial partitioning
With 1,400W luminosity sculpting kinetic sculptures—where
mechanical precision becomes artistic medium, the FINE 1400 PERF is
the ultimate syntax of stagecraft. (Peak Intensity: 480,000cd |
Bortle Scale Class 1 visibility)
Product Parameters
Optical System
| Light Source | OSRAM Lok-it 1400-PS Brilliant |
| Optical Lens Diameter | 140mm |
| Total Luminous Flux | > 35,000lm |
| Uniformity | > 80% |
| Zoom Range | 8°-50° |
| Color Rendering Index (Ra) | Ra > 95 |
| Color Mixing System | CMY Infinite Color Mixing |
| CTO Color Temperature Adjustment | Linear adjustment (2700K-6500K) |
| Color Filters | 7 color filters + white light |
| Pattern Disc Specs | Outer Diameter: Ø37.3mm, Thickness: 1.1mm, Pattern Area: Ø26mm,
Material: Glass |
| Pattern Plates | 1 rotating pattern disc with 5 bidirectional rotating positioning
pattern plates |
| Animation Wheel | 1 animation wheel |
| Viewfinder System | 1 set of omnidirectional viewfinder system + 90° image position |
| Prism | 1 rotating four-prism, bidirectional rotation |
| Diffusion Effect | Independent soft diffusion |
| Frost Effect | Electric linear frost |
| Aperture | Quick electric aperture |
| Pan/Tilt Range | Pan: 540°, Tilt: 270° |
| Control Channels | 32 (Standard) / 35 (16Bit) / 42 (Extended), 3 control modes |
| Control Protocols | Standard DMX512, Art-Net, Wireless DMX512 (Optional) |
| Input Voltage | 200-240V~, 50/60Hz |
| Ballast Type | Electronic ballast |
| Power Consumption | 1800W |
| Power Factor (PF) | PF ≥ 0.98 |
| Fixture Dimensions | 465 x 439 x 777.5mm |
| Packaging Dimensions | 654 x 524 x 819mm |
| Net Weight | 42.5kg |
| Gross Weight | 78kg |
| Package Quantity | 1 set / air case |

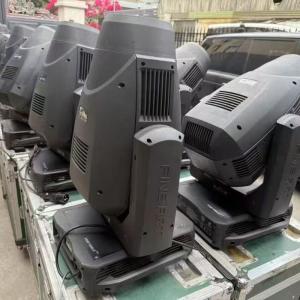

Product warehouse map
