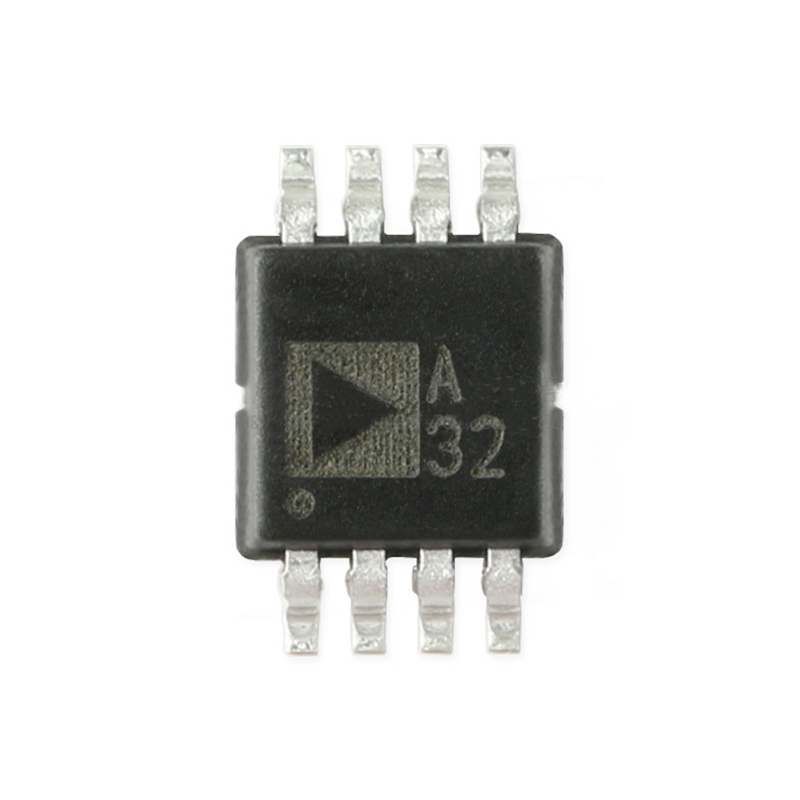

ADA4528-2ARMZ-R7 Precision Amplifiers MSOP-8 Analog Devices 8 Pins

Add to Cart

ADA4528-2ARMZ-R7 Precision Amplifiers MSOP-8 Analog Devices 8 Pins

Manufacturer:	Analog Devices Inc.
Product Category:	Precision Amplifiers
RoHS:	Details
Number of Channels:	2 Channel
GBP - Gain Bandwidth Product:	3.4 MHz
SR - Slew Rate:	500 mV/us
Vos - Input Offset Voltage:	300 nV
Ib - Input Bias Current:	350 pA
Supply Voltage - Max:	5.5 V, 2.75 V
Supply Voltage - Min:	2.2 V, 1.1 V
Operating Supply Current:	1.5 mA
Output Current per Channel:	40 mA
CMRR - Common Mode Rejection Ratio:	160 dB
en - Input Voltage Noise Density:	5.9 nV/sqrt Hz
Package / Case:	MSOP-8
Mounting Style:	SMD/SMT
Shutdown:	No Shutdown
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Series:	ADA4528-2
Packaging:	Reel
Packaging:	Cut Tape
3 dB Bandwidth:	6.2 MHz
Brand:	Analog Devices
Dual Supply Voltage:	1.1 V to 2.75 V
Height:	0.85 mm
Input Voltage Range - Max:	5 V
Length:	3 mm
Maximum Dual Supply Voltage:	2.75 V
Minimum Dual Supply Voltage:	1.1 V
Operating Supply Voltage:	2.2 V to 5.5 V
Output Type:	Rail-to-Rail
Product:	Precision Amplifiers
Product Type:	Precision Amplifiers
PSRR - Power Supply Rejection Ratio:	150 dB
	1000
Subcategory:	Amplifier ICs
Type:	General Purpose Amplifier
Voltage Gain dB:	139 dB
Width:	3 mm
Unit Weight:	0.004938 oz
