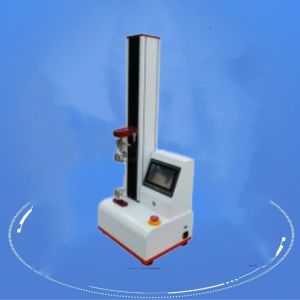

ST103 ointment 180 degree electronic peel test machine for
Pharmaceutical Testing Instruments with precise control and low
noise
The ST103 ointment 180 ° electronic peel test machine is designed
strictly in accordance with the requirements of the new 2020
Chinese Pharmacopoeia "0952 Adhesion Force Determination Method".
It adopts modern mechanical design concepts and ergonomic design
principles, and uses advanced microcomputer processing technology
for careful and reasonable design. It is a new generation of
testing machine with novel design, convenient use, excellent
performance, and beautiful appearance
Principle:
The sample is clamped between the two clamps of the fixture, and
the two clamps move relative to each other. The force and
displacement changes during the test process are collected through
the force sensor located on the moving clamp and the built-in
displacement sensor of the machine, and the 180 degree peel
strength of the sample is calculated.
Product features
l The instrument adopts high-precision ball screw, which drives
smoothly and accurately; Adopting imported servo motors, with low
noise and precise control
l Large screen touch screen display and Chinese menu. Real time
display of force time, force deformation, force displacement, etc.
during the experiment; The instrument has strong data display,
analysis, and management capabilities.
l Adopting a 24 bit high-precision AD converter (resolution up to
1/10000000) and high-precision weighing sensors, ensuring the fast
and accurate collection of instrument force data
l Adopting a modular all-in-one printer, it is easy to install and
has low malfunctions; Thermal printer.
l Direct measurement results: After completing a set of
experiments, it is convenient to directly display the measurement
results and print statistical reports, including mean, standard
deviation, and coefficient of variation.
l High degree of automation: The instrument design adopts advanced
domestic and foreign devices, with microcomputers for information
sensing, data processing, and action control. It has the
characteristics of automatic reset, data memory, overload
protection, and fault self diagnosis.
Product parameters
l Specification: 100N or 500N
l Accuracy: better than level 0.5
l Deformation resolution: 0.001mm
l Test speed: 1-500mm/min stepless speed regulation
l Travel: 400mm
l Boundary dimensions: 500mm (L) x 300mm (W) x 1150mm (H)
l Power supply: AC220V, 50HZ
Packing list
| S/N | Name | Quantity | Unit | Remarks |
| 1 | Electronic peel testing machine | 1 | set | |
| 2 | Special 180 ° peel off fixture | 1 | piece | |
| 3 | Standard pressure roller | 1 | piece | |
| 4 | Stainless steel peel test plate | 1 | piece | |
| 5 | Printing paper | 4 | roll | |
| 6 | Power cord | 1 | piece | |
| 7 | Certificate of conformity warranty card | 1 | copy | |
| 8 | Instructions | 1 | copy | |
