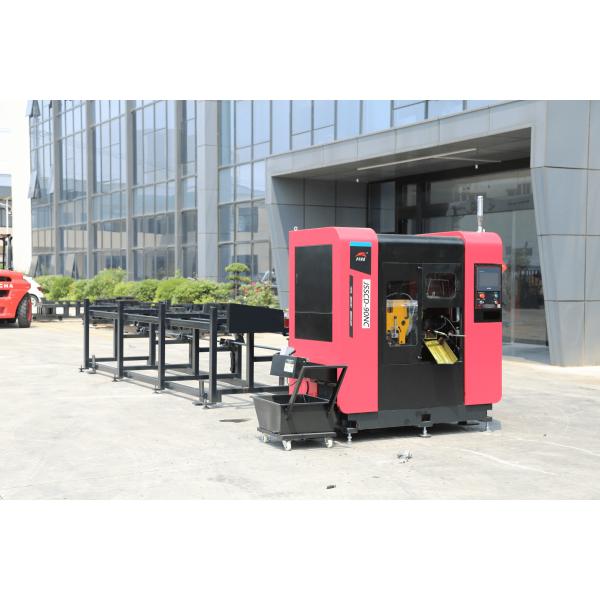

JSSCD-90NC/X CNC High Speed Circular Saw for Metal Cutting
Description
The JSSCD-160NC/X CNC high-speed circular saw is a cutting-edge
solution designed for precision metal profile cutting, with
exceptional capabilities in angled cuts. Its innovative 15°
top-to-bottom cutting technique sets it apart, delivering high
efficiency, automation, and environmental sustainability. This
machine is indispensable in the metalworking industry, serving as a
cornerstone for modern production lines.
Versatile and Efficient Performance
Engineered to handle diverse profiles such as round tubes, angle
steels, and square tubes, this machine eliminates the hassle of
frequent fixture adjustments. Its adaptability ensures seamless
processing of metal materials across various sizes and shapes,
significantly enhancing operational flexibility. The unique 15°
cutting method disperses stress evenly during the cutting process,
minimizing workpiece deformation and producing cleaner, more
precise edges. This feature is particularly valuable for
applications demanding superior cut quality.
Advanced Technology for Unmatched Precision

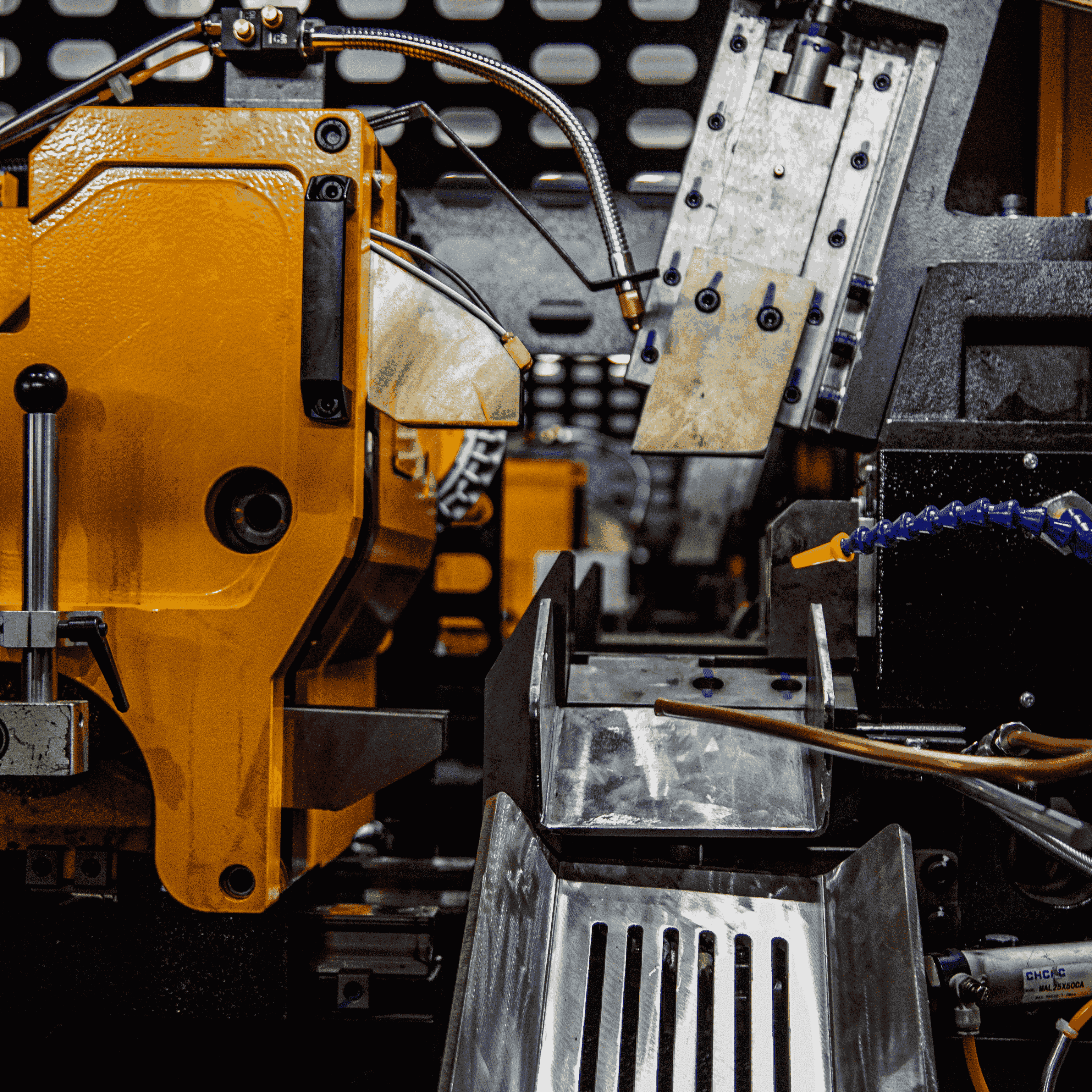

Equipped with a robust transmission and clamping system, the
machine utilizes high-strength materials and precision engineering
to secure workpieces firmly. Even under high-speed cutting
conditions, it maintains stability, ensuring consistent and

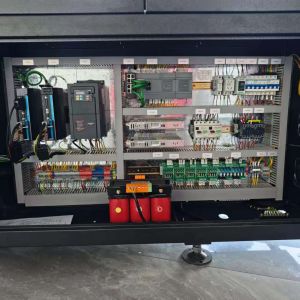

reliable performance. At its core lies an intelligent control
module that meticulously adjusts cutting speed, angle, and other
parameters to achieve flawless results every time.
Specification
| Model | Unit | JSSCD-90NC/P |
| Mainframe dimensions | mm | 2250*1790*1760 |
| Bar & round pipe | mm | 15-90 |
| Angle bar & square bar | mm | 15-70 |
| Saw blade size | mm | φ315*2.25*φ32 |
| Pin holes and hole diameters | mm | 4*φ11*63φ32 |
| Spindle motor power | KW | 11/(4P) |
| Spindle speed | rpm | 20-168 |
| Feed servo motor power | KW | 1.5 |
| Feeding servo motor power | KW | 1.5 |
| Material removal length at the front end | mm | 10-99 |
| Single feeding length(repeatable) | mm | 6-860 |
| Hydraulic drive motor power | KW | 1.5(4p) |
| Rated pressure of the hydraulic system | mpa | 5.5 |
| Hydraulic oil capacity | L | 70 |
| Cut off feed mode |
| AC servo motor & ball screw/15° cutting-in |
| Main clamping method |
| Hydraulic type / one set each for horizontal and 15° |
| Saw blade debris removal device |
| Passive/active circular wire brush (optional) |
| Gear backlash compensation device |
| Hollow external rotating magnetic powder brake |
| Feeding drive mode |
| AC servo motor & ball screw |
| Feeding clamp method |
| Hydraulic type/Horizontal clamping |
| Residual material length at the rear end | mm | 65&a(a represents the length less than one cut-off workpiece) |
| Self-lubrication oil system |
| Timed and quantitative forced oil supply |
| Micro-lubrication system for cutting tools |
| Quasi-dry intermittent oil supply |

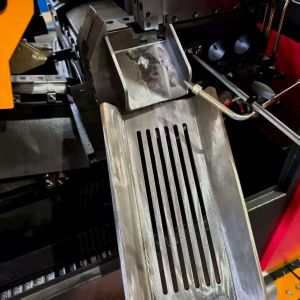

| Material separating device |
| Pneumatic reciprocating |
| Blade swing anti-vibration device |
| Tungsten carbide parallel block |
User-Friendly Automation
The machine’s high-precision CNC control system features an
intuitive human-machine interface, allowing operators to easily
program and save multiple cutting configurations. This automation
reduces manual intervention, minimizes human errors, and
streamlines production workflows. For enhanced productivity, an
optional automatic feeding system is available, enabling
uninterrupted batch processing to meet high-volume production
demands.
Boosting Productivity and Sustainability
By integrating intelligent control and high-speed cutting
technology, the JSSCD-160NC/X maximizes material utilization,
reduces waste, and shortens production cycles. Its ability to
handle both large-scale and high-precision tasks makes it an ideal
choice for metal processing enterprises aiming to elevate
efficiency and competitiveness. This machine not only supports
sustainable development but also drives innovation in modern
metalworking workshops, providing a reliable and cutting-edge
solution for the industry’s evolving needs.
FAQ
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a
30,000 square meter factory and a team of dedicated technicians
specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our
city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a
test cut using our machine. After the test is complete, we will
provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for
your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of
your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
