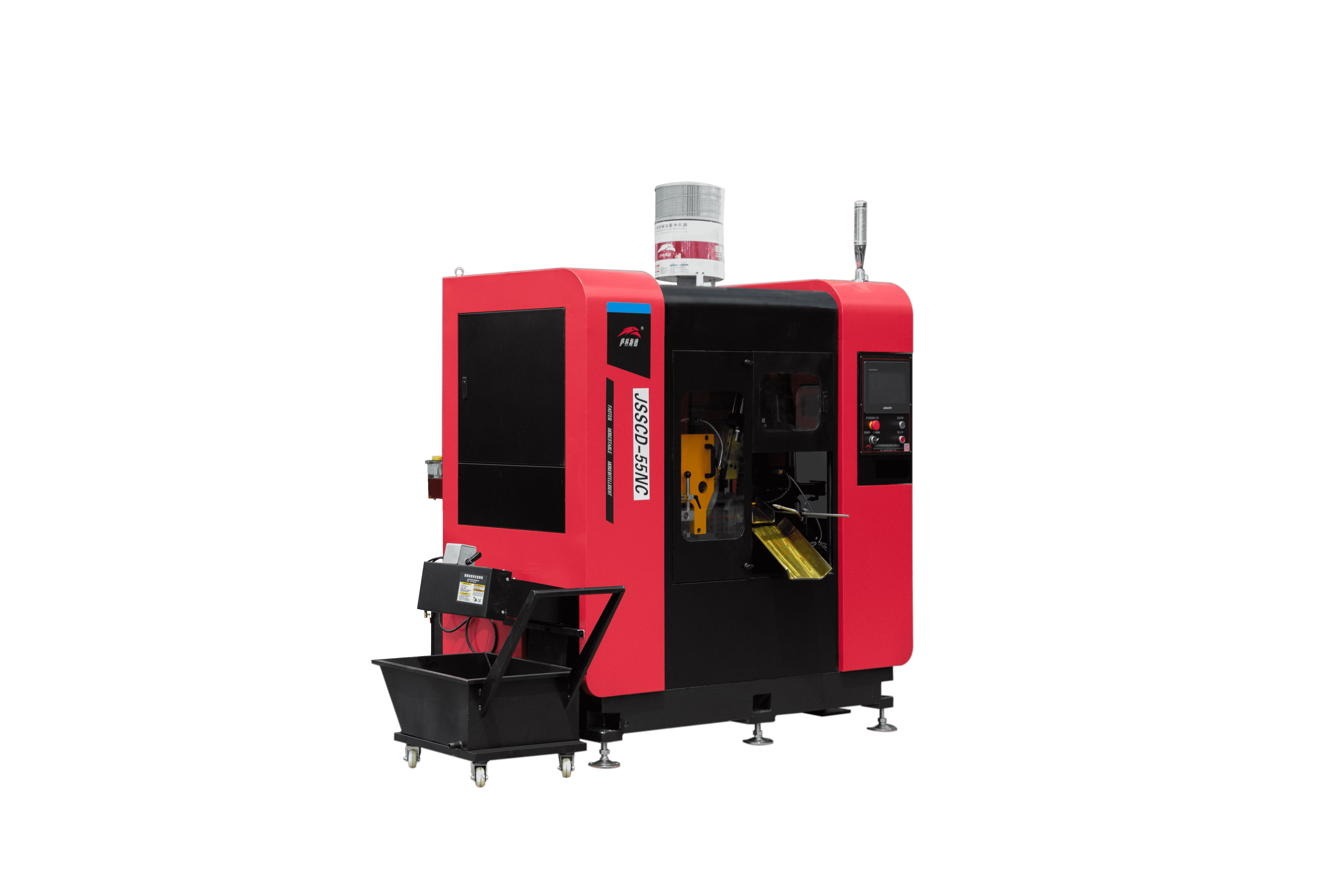

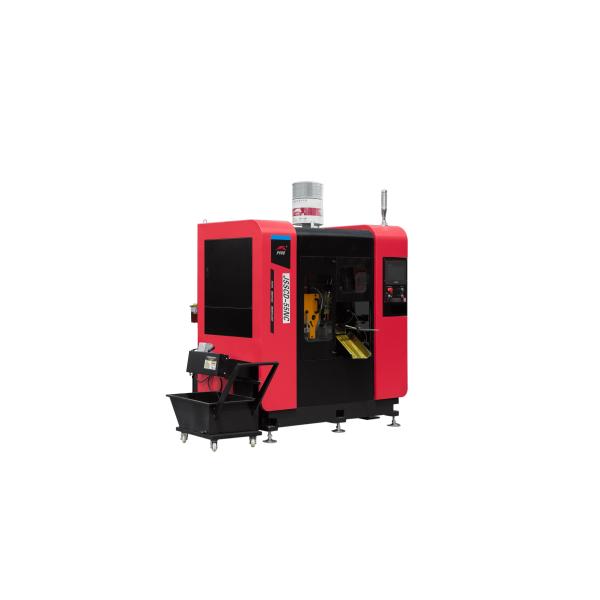

JSSCD-55NC/P CNC High Speed Circular Saw Machine(Horizontal-Push)
Meeting the rigorous demands of modern metalworking requires
high-efficiency, high-precision cutting solutions, especially for
horizontal operations. This CNC high-speed circular sawing machine
delivers precisely that. It seamlessly combines rapid cutting
performance, automated precision, and eco-friendly operation,
establishing itself as a cornerstone of reliable and productive
metal processing lines.
Versatility Meets Simplified Operation
Say goodbye to constant fixture swaps. This saw handles a diverse
range of profiles—round tubes, angle steels, square tubes, and
more—with remarkable flexibility. It effortlessly adapts to varying
sizes and shapes of metal stock. Central to its operation is a
sophisticated intelligent control module, the true "brain" of the
machine. It meticulously governs cutting speed, angle, and other
critical parameters, ensuring consistent, high-precision results
meeting exact specifications every time.
Robust Performance & Intelligent Control

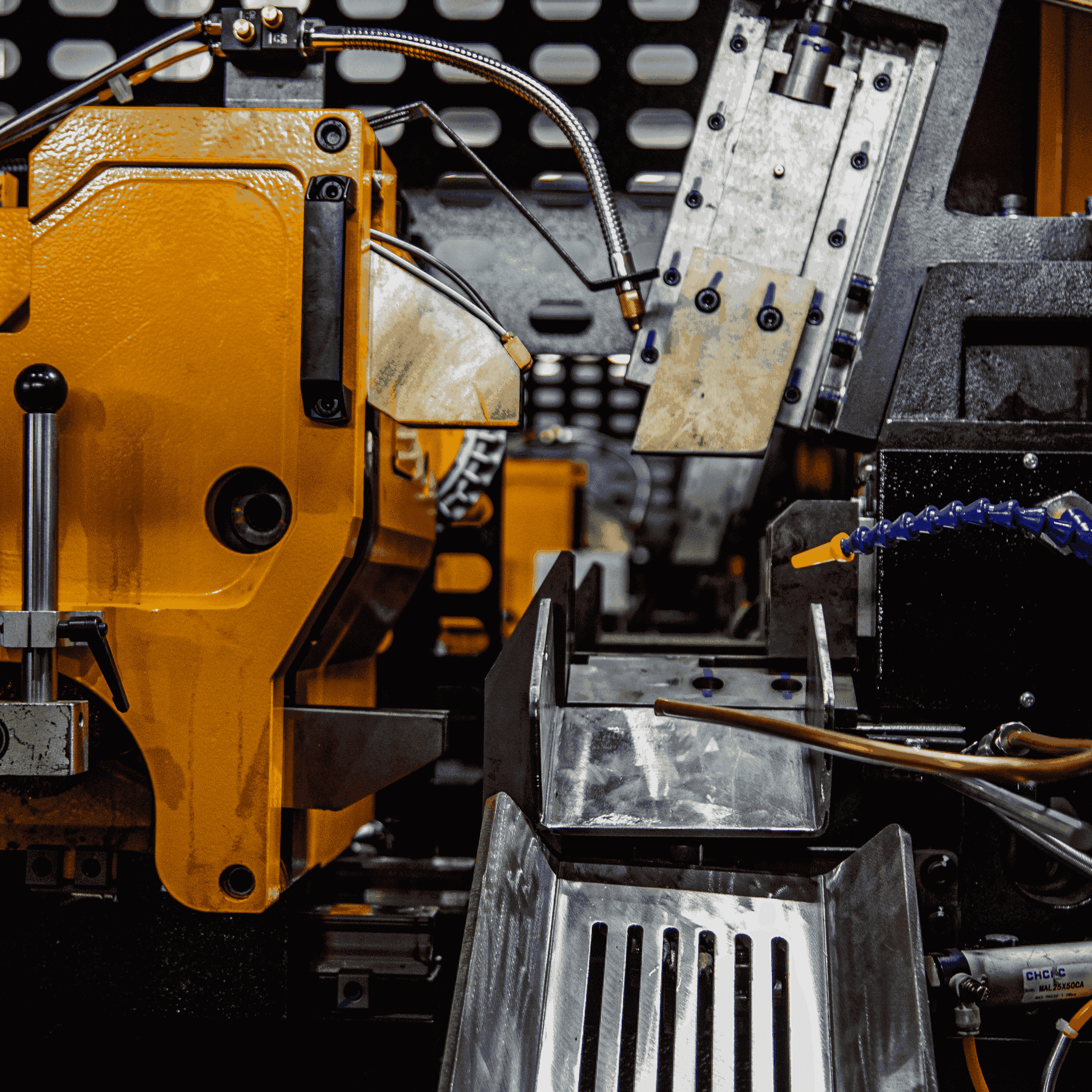

Stability is paramount during high-speed cutting. The JSSCD-55NC/P
incorporates a high-strength transmission and clamping system,
featuring an accurate structural design. This guarantees the
workpiece is held immovably secure, preventing any displacement and
guaranteeing dependable, vibration-free operation. Complementing

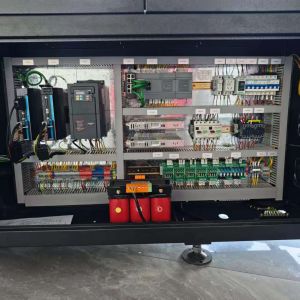

this is a high-precision CNC control system with an intuitive
human-machine interface (HMI). Programming is simplified: operators
configure cutting parameters through the user-friendly interface
and can store multiple programs, paving the way for seamless, fully
automated production runs. This drastically cuts manual
intervention and minimizes human error.
Boosting Productivity & Sustainability
For enhanced throughput, an optional automatic feeding system is
available, enabling continuous, unattended batch cutting. This
capability allows the machine to operate non-stop, significantly
elevating overall productivity to meet large-scale demands. The
synergy of intelligent CNC control and high-speed cutting
technology delivers tangible business advantages:
Optimized Material Use: Improved utilization reduces costly waste.
Enhanced Efficiency: Faster cutting speeds and automation shorten production cycles.
Lower Operational Costs: Reduced labor requirements and minimized errors translate to cost
savings.
Specifications:
| Model | Unit | JSSCD-55NC/P |
| Mainframe dimensions | mm | 1950*1700*1700 |
| Bar & round pipe | mm | 10-55 |
| Angle bar & square bar | mm | 10-40 |
| Saw blade size | mm | φ250*2.0*φ32 |
| Pin holes and hole diameters | mm | 4*φ11*63 φ32 |
| Spindle motor power | KW | 5.5(4P) |
| Spindle speed | rpm | 20-168 |
| Feed servo motor power | KW | 1.5 |
| Feeding servo motor power | KW | 1.5 |
| Material removal length at the front end | mm | 10-99 |
| Single feeding length(repeatable) | mm | 6-780 |
| Hydraulic drive motor power | KW | 1.5(4p) |
| Rated pressure of the hydraulic system | mpa | 5.5 |
| Hydraulic oil capacity | L | 60 |
| Cut off feed mode |
| AC servo motor & ball screw / horizontal entry |
| Main clamping method |
| Hydraulic type / one set each for horizontal and 15° |
| Saw blade debris removal device |
| Passive/active circular wire brush (optional) |
| Gear backlash compensation device |
| Hollow external rotating magnetic powder brake |
| Feeding drive mode |
| AC servo motor & ball screw |
| Feeding clamp method |
| Hydraulic type/Horizontal clamping |
| Residual material length at the rear end | mm | 90&a(a represents the length less than one cut-off workpiece) |

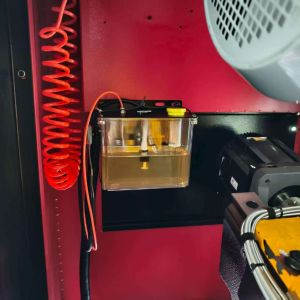

| Self-lubrication oil system |
| Timed and quantitative forced oil supply |
| Micro-lubrication system for cutting |
| Quasi-dry intermittent oil supply |

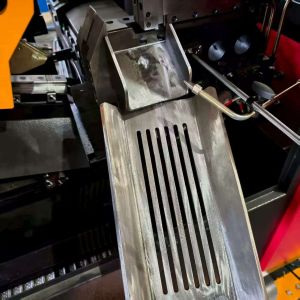

| Material separating device |
| Pneumatic reciprocating |
| Long material receiving device |
| Optional |
| Blade swing anti-vibration device |
| Tungsten carbide parallel block |
FAQ
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a
30,000 square meter factory and a team of dedicated technicians
specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our
city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a
test cut using our machine. After the test is complete, we will
provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for
your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of
your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
