| Price : | $19,000/units 1-9 units |
| Delivery Time : | 7-30 days |
| Payment Terms : | T/T |
| Supply Ability : | Meet large-scale orders |







Vehicle technical parameters | ||||||||

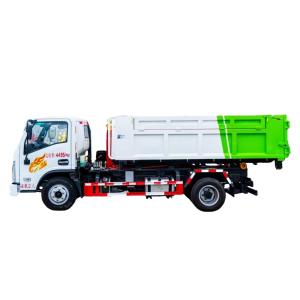

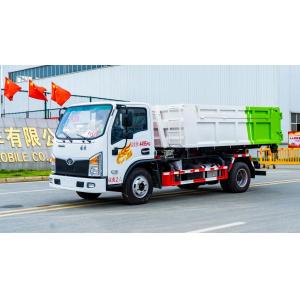

product name | Hook arm garbage truck | product model | HTT 5128ZXXG17FB0 | |||||
gross mass (Kg) | 11995 | Production address | Suizhou City, Hubei Province | |||||
Rated load mass (Kg) | 7865,7565,7470 | outline dimension (mm) | 5500,5600,5700,5800,5900,6000,6100×1930,1980,2100×2100,2150,2180,2200,2300 | |||||
curb weight (Kg) | 4000,4300,4395 | axle weight | 4240/7755 | |||||
Number of cab members (person) | 2,3 | number of axles | 2 | |||||
Approach angle / departure angle of (°) | 20/21 | Front suspension / rear suspension (mm) | 1130/1020,1130/1090,1130/1190,1130/1290,1130/1120,1130/1220,1130/1320,1110/1040,1110/1110,1110/1210,1110/1310,1110/1140,1110/1240,1110/1340 | |||||
wheel base | 3280,3650 | Top vehicle speed (Km/h) | 89 | |||||
Chassis technical parameters | ||||||||
Chassis model | ZZ1128G17FB1 | Chassis brand | truck chassis | |||||
number of axles | 2 | Number of tires | 6 | |||||
tyre size | 245/70R19.5 16PR,245/70R17.5 18PR | |||||||
Number of steel plate spring sheets | 11/9+7,8/9+6,3/8+5 | |||||||
front gauge (mm) | 1485,1501,1517,1530,1548,1660,1740 | rear track (mm) | 1491,1510,1540,1584,1615,1650 | |||||
Fuel types | diesel oil | ABS | have | |||||
Chassis wheelbase | 3300,3850 | effluent standard | Euro 4 5 6 | |||||
engine type | displacement (ml) | power (Kw) | horsepower | |||||
WP2.5NQ180E62 | 2493 | 132 | 180 | |||||
After-sales service: If after-sales problems occur, please contact
our customer service personnel in time, and we will contact our
pesonnel in time to solve the problem for you. | ||||||||







|
