| Brand Name : | GNEE |
| Certification : | SGS |
| Price : | Negotiable |
| Payment Terms : | Negotiable |
| Supply Ability : | 100 ton/week |
| Delivery Time : | 5-9 working days |

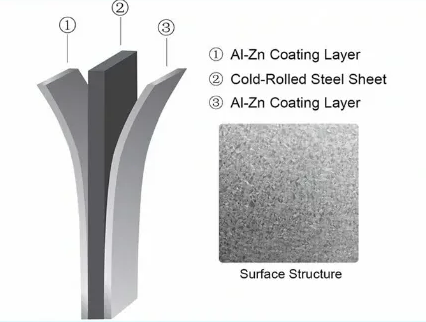

Galvalume Coil composition by weight ratio of 55%
aluminum,43.4%zinc,1.6% silicon, at high temperature 600 high
temperature solidificationand aluminized zinc plate surface is a
unique smooth flat gorgeous starflower, the base color is silver
white special coating structure makes ithas excellent corrosion
resistance
Galvalume Coil/ Sheet is mainly used in the construction of
householdappliances, automobile containers, especially steel
structure building.automobile parts, steel plate warehouse
manufacturing and otherindustries.Their characteristics are mainly:
strong corrosion resistance.good surface quality, economic and
practical.

| Technical Standard | EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Steel Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer's Requirement |
| Type | Coil/Sheet/Plate/Strip |
| Thickness | 0.12-6.00mm,or customer's requirement |
| Width | 600mm-1500mm, according to customer's requirement |
| Type of Coating | Hot Dipped Galvanized Steel(HDGI) |
| Zinc Coating | 30-275g/m2 |
| Surface Treatment | Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
| Surface Structure | Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| ID | 508mm/610mm |
| Coil Weight | 3-20 metric ton per coil |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
| Export market | Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |



|
