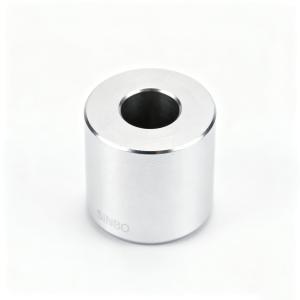

    Precision CNC Machining China Coreless Motor Housing φ8mm φ10mm φ12mm for Humanoid Robot Joint Modules

    Product Description

    This coreless motor housing is specifically designed for humanoid robot joint modules, manufactured using high-precision CNC machining technology. Available in three standard specifications of φ8mm, φ10mm, and φ12mm, all are precision machined from brass material to ensure perfect fit and long-term stable operation of the motor internal components. These housings undergo precision turning and milling processes, exhibiting excellent dimensional consistency and superior surface quality, meeting the stringent requirements of humanoid robot joints for precision transmission.

    Features
    • Precision Machining: Using CNC machining technology with dimensional tolerances strictly controlled within ±0.01mm, ensuring perfect fit with internal motor components
    • Premium Material: Selected high-quality brass alloy with excellent durability and corrosion resistance, suitable for long-term use
    • Rigorous QC: Each housing undergoes strict quality inspection to ensure no flaws, no burrs, and absolutely clean surface
    • Design Optimization: Structural design is optimized for easy installation and integration into joint modules, reducing assembly complexity
    • Fast Response: Support small-batch rapid prototyping and large-volume production to meet different R&D and production needs
    Technical Parameters Table
    Parameterφ8mm Housingφ10mm Housingφ12mm Housing
    Outer Diameter Tolerance±0.01mm±0.01mm±0.01mm
    Inner Diameter Tolerance±0.008mm±0.008mm±0.008mm
    MaterialBrass AlloyBrass AlloyBrass Alloy
    Surface Roughness (Ra)≤0.4μm≤0.4μm≤0.4μm
    Concentricity≤0.005mm≤0.005mm≤0.005mm
    Roundness≤0.003mm≤0.003mm≤0.003mm
    Optional Surface TreatmentNone/Nickel PlatingNone/Nickel PlatingNone/Nickel Plating
    Operating Temperature Range-30°C to +120°C-30°C to +120°C-30°C to +120°C
    Applications
    • Humanoid Robot Joint Modules: Particularly suitable for dexterous hand joints and fine expression control modules in drive units
    • Precision Medical Devices: Used in surgical robots, laboratory automation equipment, and micro-injection pumps and other high-precision medical equipment
    • High-Precision Industrial Automation: Suitable for drive components in electric grippers, precision positioning systems, and small automation equipment
    • Aerospace Field: Meeting driving applications in aerospace equipment that require miniaturization, lightweight, and high reliability
    Customization Services

    We provide comprehensive customization services according to customer requirements:

    • Size Customization: Support non-standard sizes and special tolerance requirements
    • Material Selection: Besides brass, we also offer aluminum alloy, stainless steel, and other special alloy materials
    • Surface Treatment: Provide nickel plating, chrome plating, or other surface treatments based on application needs
    • File Format Support: Accept common engineering file formats such as STEP, IGES, DXF, DWG
    Support and Services
    • Technical Consultation: Provide professional technical personnel consultation services to help solve integration and application technical issues
    • Rapid Prototyping: Support sample production within 3-5 working days to accelerate customer R&D progress
    • Mass Production: Possess automated production lines supporting large-volume orders of 100,000+ sets per month
    • Quality Assurance: Provide full-process quality monitoring reports to ensure products meet design requirements
    • After-sales Support: Provide comprehensive after-sales service to promptly address customer usage issues
