| Model Number : | CKA 40100 |
| Brand Name : | SUMA |
| Price : | $26-30 |

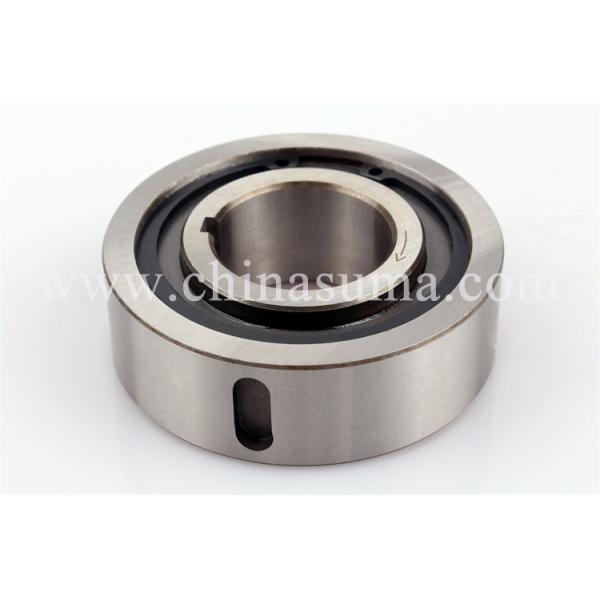

CKA40100 100mm Outside Diameter One Way Clutch Bearing 40x100x34mm
Features of CKA40100 one way clutch bearing
CKA is a sprag type freewheel non-bearing supported . Bearings are required to support axial and radial loads, Units are delivered grease lubricated.
Product name | One way clutch bearing |
Model | CK-A 40100 |
Material | GCr15 |
Inner diameter | 40mm |
Outer diameter | 100mm |
Thickness | 34mm |
Torque capacity | 780Nm |
Weight | 1.2Kg |
Structure | Sprag type |
Application | Packing machine, printing machine, conveyor, Hoister, Textile machine, Medical machine, Chemical Equipments |
Package | Wooden box |
Payment terms | TT. L/C, D/A,D/P,Western Union, Paypal |
Delivery time | 3-5 Days |
Catalogue of hydraulic bearing clutch for your choice

| Model | Nominal Torque | Overrunning Limiting Speed (r/min) | Dimension [mm] | Bearing | Weight | ||||||
| Outer race | Inner race | ||||||||||
| [N.m] | Inner race | Outer race | D[h7] | B | bwxtw | d[h7] | C | bnxtn | [kg] | ||
| CK-A1542 | 54 | 1750 | 500 | 42 | 23 | 3x1.8 | 15 | 24 | 3x1.4 | 6302 | 0.17 |
| CK-A1747 | 75 | 1575 | 400 | 47 | 23 | 3x1.8 | 17 | 24 | 3x1.4 | 6304 | 0.21 |
| CK-A2052 | 95 | 1400 | 400 | 52 | 23 | 3x1.8 | 20 | 24 | 3x1.4 | 6305 | 0.25 |
| CK-A2562 | 145 | 1260 | 350 | 62 | 23 | 4x2.5 | 25 | 24 | 4x1.8 | 6306 | 0.35 |
| CK-A3072 | 208 | 1050 | 300 | 72 | 23 | 5x3.0 | 30 | 24 | 5x2.3 | 6307 | 0.47 |
| CK-A3580 | 340 | 815 | 200 | 80 | 28 | 8x4.0 | 35 | 30 | 6x2.8 | 6308 | 0.69 |
| CK-A4090 | 462 | 700 | 200 | 90 | 28 | 8x4.0 | 40 | 30 | 6x2.8 | 6309 | 0.87 |
| CK-A45100 | 783 | 560 | 200 | 100 | 28 | 8x4.0 | 45 | 30 | 6x2.8 | 6310 | 1.07 |
| CK-A50110 | 850 | 525 | 180 | 110 | 28 | 10x5.0 | 50 | 30 | 8x3.3 | 6311 | 1.59 |
| CK-A60130 | 1050 | 490 | 180 | 130 | 34 | 10x5.0 | 60 | 36 | 8x3.3 | 6312 | 2.16 |
| CK-A65140 | 1224 | 490 | 180 | 140 | 34 | 10x5.0 | 65 | 36 | 10x3.3 | 6313 | 2.49 |
| CK-A70150 | 1850 | 455 | 150 | 150 | 40 | 10x5.0 | 70 | 42 | 10x3.3 | 6314 | 3.36 |
| CK-A75160 | 2140 | 455 | 150 | 160 | 40 | 12x5.0 | 75 | 42 | 12x3.3 | 6315 | 3.81 |
| CK-A80170 | 2450 | 420 | 150 | 170 | 40 | 12x5.0 | 80 | 42 | 12x3.3 | 6316 | 4.29 |
| CK-A1250 | 31.5 | 1750 | 400 | 50 | 22 | 3x1.8 | 12 | 24 | 3x1.4 | 0.24 | |
| CK-A1855 | 50 | 1575 | 350 | 55 | 22 | 4x2.5 | 18 | 24 | 4x1.8 | 0.28 | |
| CK-A2060 | 63 | 1600 | 350 | 60 | 22 | 6x3.5 | 20 | 24 | 6x2.8 | 0.33 | |
| CK-A2563 | 100 | 1260 | 350 | 63 | 24 | 6x3.5 | 25 | 26 | 6x2.8 | 0.37 | |
| CK-A2563T | 140 | 1260 | 350 | 63 | 30 | 6x3.5 | 25 | 32 | 8x3.3 | 0.68 | |
| CK-A2870 | 180 | 1050 | 300 | 70 | 30 | 8x4.0 | 28 | 32 | 8x3.3 | 0.6 | |
| CK-A3080T | 340 | 875 | 200 | 80 | 30 | 8x4.0 | 30 | 32 | 8x3.3 | 0.75 | |
| CK-A3585 | 400 | 815 | 200 | 85 | 30 | 8x4.0 | 35 | 32 | 8x3.3 | 1 | |
| CK-A35100 | 780 | 875 | 200 | 100 | 32 | 10x5.0 | 35 | 34 | 10x3.3 | 1.34 | |
| CK-A35140 | 1000 | 490 | 180 | 140 | 35 | 8x4.0 | 35 | 35 | 10x3.5 | 3.28 | |
| CK-A40100 | 780 | 560 | 200 | 100 | 34 | 10x5.0 | 40 | 34 | 10x3.3 | 1.2 | |
| CK-A40110 | 850 | 700 | 180 | 110 | 32 | 10x5.0 | 40 | 34 | 10x3.3 | 1.19 | |
| CK-A50125 | 1000 | 490 | 180 | 125 | 36 | 14x5.5 | 50 | 35 | 14x3.8 | 2.21 | |
| CK-A50130 | 1050 | 560 | 180 | 130 | 36 | 14x5.5 | 50 | 38 | 14x3.8 | 3.02 | |
| CK-A55160 | 2000 | 455 | 150 | 160 | 52 | 16x6.0 | 55 | 55 | 16x4.3 | 6.96 | |
| CK-A58130 | 1050 | 490 | 180 | 130 | 36 | 14x5.5 | 58 | 38 | 14x3.8 | 2.6 | |
| CK-A60180 | 2000 | 420 | 140 | 180 | 52 | 18x6.0 | 60 | 52 | 18x4.4 | 7.4 | |



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Q: How do you pack the goods?
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
|
