The marine engine parts ultrasonic cleaner adopts ultrasoic
technology to clean and degrease ship parts, such as engine,
wheels, etc. Ultrasonic bubbles can get anywhere that it's hard to
clean by hand or the traditional machine.Tank size of the machine can be customized according to customer's
requirements.
Ideal to clean rust,carbon,pait,heavy oil, without damage to parts
inside tank with suitable cleaning liquid.

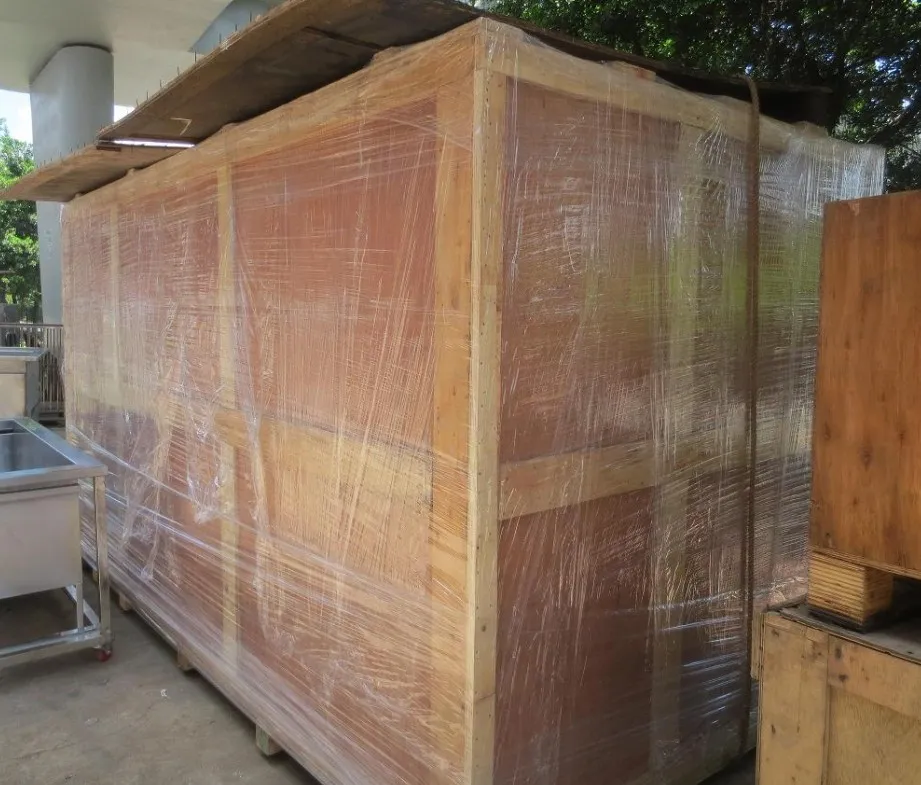

Picutres of the machine FYI:
Features:
Adjustable ultrasonic power
Original BLT type transducer
SUS 316L stainless steel tank
Adaptable for continuous operation
Adjustable thermo controller
Adjustable ultrasonic power
With separate control ultrasonic electronic generator
sweep mode control available
digital timer & heating control
boost mode& oil skimmer upon clients requirement
pressure pump and filter system are available
Warranty: 1 year
Lead time: in 25 working days
Functions:
JTS series single tank ultrasonic cleaner equipment system includes
replaceable transducer box and generator. The transducer box and
generator can be both build-in or separate but work together to
operate ultrasonic cleaning process with transducer box immersible
mounted in fluid tank, one side or both side or bottom mounted
inside the tank. The number and placement of transducers is
selected to give maximum results in any parts cleaning tank with
any cleaning load. Specification of tank dimension and transducer
boxes are custom made available. Either for mould of parts cleaning
can receive perfect cleaning efficiency. Stainless steel basket is
optional.
| Model: Skymen™ | JTS-1006 | JTS-1012 | JTS-1018 | JTS-1024 | JTS-1030 | JTS-1036 | |
| TANK'S WORKING DIMENSION (mm) | L1 | 305 | 355 | 406 | 500 | 500 | 500 |
| W1 | 250 | 305 | 305 | 355 | 406 | 460 |
| H1 | 305 | 355 | 460 | 500 | 500 | 550 |
| | |
| OVERALL DIMENSION (mm) | L2 | 485 | 535 | 586 | 680 | 710 | 710 |
| W2 | 430 | 485 | 485 | 535 | 586 | 640 |
| H2 | 700 | 750 | 680 | 720 | 720 | 770 |
| TANK'S TOTAL CAPACITY | 23L | 38L | 56L | 88L | 101L | 126L |
| TANK'S MATERIAL | SUS304 / SUS316L |
| IN-TANK SURFACE FINISHING | Hard-Cr Plating Treatment ( 20+ microns ) |
| HOUSING'S MATERIAL | Stainless steel |
| ULTRASONIC FREQUENCY* | 28kHz / 40kHz |
| ULTRASONIC TRANSDUCER | 6 | 12 | 18 | 24 | 30 | 36 |
| ULTRASONIC OUTPUT POWER (MAX.) | 300W | 600W | 900W | 1200W | 1500W | 1800W |
| ELECTRONIC GENERATOR | KG300 | KG600 | KG900 | KG1200 | KG1500 | KG1800 |
| Build-in | Separate |
| HEATER'S (HOT PLATE) POWER | 1.5kW | 3kW | 4.5kW |
