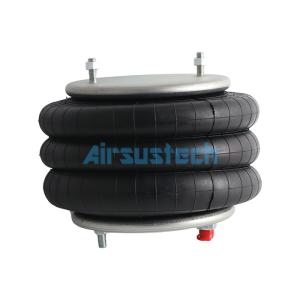

    Truck Air Spring Assembly Triangle 6334 4520 Convoluted Rubber Air Bag 343MM Stroke

    Ask Lasest Price
    Brand Name : AIRSUSTECH
    Model Number : 3B7996
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
    Supply Ability : 1000pcs/week
    Delivery Time : 3-8 Working Days
    • Product Details
    • Company Profile

    Truck Air Spring Assembly Triangle 6334 4520 Convoluted Rubber Air Bag 343MM Stroke

    Truck Air Spring Assembly Triangle 6334 4520 Convoluted Rubber Air Bag 343MM Stroke


    The Production of AIRSUSTECH Air Springs


    One of the most common applications for AIRSUSTECH air spring kits is heavy-duty trucks and commercial vehicles. These vehicles often carry heavy loads and require a suspension system that can handle the weight. AIRSUSTECH air springs provide additional support to the existing suspension system, making it easier to carry heavy loads without damaging the vehicle. Another popular application for AIRSUSTECH air springs is off-road vehicles. These vehicles are often used on rough terrain and require a suspension system that can handle the bumps and impacts of off-road driving. AIRSUSTECH air springs provide additional support and cushioning to the suspension system, making it easier to travel over rough terrain. AIRSUSTECH air springs are also a popular choice for recreational vehicles, such as RVs and campers. These vehicles often carry a lot of heavy loads, including water tanks, propane tanks, and other equipment. AIRSUSTECH air springs provide additional support to the suspension system, making it easier to carry heavy loads without damaging the vehicle.


    3B7996 OEM Cross References


    Triangle 6334 / 4520

    Firestone W01-358-7996

    Firestone W013587996

    Firestone W01 358 7996

    Firestone W01-358-7938

    Firestone W013587938

    Firestone W01 358 7938

    Contitech FT 330-29 520

    Contitech FT 33029 520

    Contitech FT 330 29 520

    Goodyear 3B12-335

    Goodyear 3B12335

    Goodyear 3B12 335

    Goodyear Bellows NO. 578-93-3-100

    Goodyear Bellows NO. 578933100

    Goodyear Bellows NO. 578 93 3 100

    Granning/Tuthill 8221

    The Specifications of AIRSUSTECH 3B7996

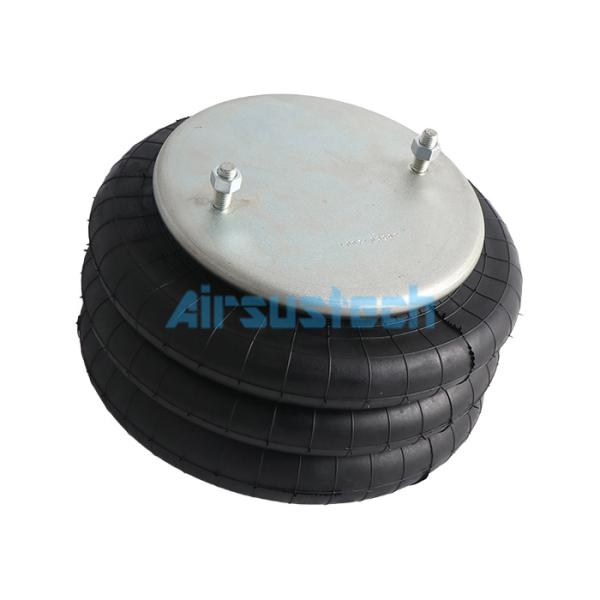

    • This triple convoluted air spring is manufactured from high-quality natural rubber with steel cover plates. It features a minimum usable height of 117 mm, a maximum usable height of 460 mm, and a working stroke of 343 mm.
    • For the 3B7996 model, the cover plate width is 231 mm, and the center-to-center distance is 157.5 mm. When the air pressure reaches 0.7 MPa, the maximum outer diameter of the rubber component reaches 330 mm.
    • The industrial convoluted rubber air spring operates via gas filling. Its air connection is 1/4 NPTF and M18×1.5, and the screw nut size is 3/8-16 UNC.

    FAQ


    Q: What is your advantage?
    A: (1) High quality - Natural rubber.
    (2) Fast delivery - Stock sales.
    (3) Best service - 24 hours online.
    Q: Can you print my logo on inner box and outer box?
    A: Yes. We can do it, but it has MOQ.
    Q: Is the sample available?
    A: Yes, Usually we send the samples by TNT, DHL, FEDEX or UPS.

    The Related Images of 3B7996


    Factory Workshop
    Factory workshop producing air springs Quality control in air spring production Manufacturing process of air springs
