4 Heads Ceramic Pump Filling System Automatic Volume Adjusting For
Packing Machine Filling Part Using Liquid Filling
Features of 4 Heads Ceramic Pump Filling System:
XQX3 is the newest generation fully-auto adjustment system; every
parameter is set and stored from the HMI—no manual handle turning,
no gauges to watch.
Core of the system is an electric rotary ceramic plunger pump
driven by a closed-loop servo/stepper hybrid motor: change the
volume in <2 s simply by entering the target value on the
touchscreen.
Patented kinematic coupling (Patent No. 2023*****) synchronises
plunger rotation and axial displacement, giving single-digit µL
resolution with 0.5 % repeatability—identical to the proven XQX2
series.
Auto-calibration routine uses an inline load-cell scale; the pump
self-corrects drift caused by temperature or wear, guaranteeing
long-term accuracy without operator intervention.
Recipe memory holds 200+ volume presets; recall any format in under
three seconds and eliminate change-over downtime on fully automatic
lines.
Application of 4 Heads Ceramic Pump Filling System:
--Using a high-performance motor to realize extremely fast and
automatic adjustment of the filling volume, which is accurate and
stable.
--The operation of the pump will not produce trace impurities to
pollute the liquid and can be quickly disassembled and assembled.
Industry application:
--It can be used for matching and modification of the filling part
of the packaging machine. Suitable for filling electrolyte,
medicine, biochemical reagent, chemical liquid, etc.
Parameter of 4 Heads Ceramic Pump Filling System:
| Item No. | -3 | -6 | -9 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump Material |
Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon
carbide(SiC), etc |
Metal part: 316L stainless steel |
| Filling Range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore Diameter | Φ4 | Φ5 | Φ7 | Φ10 | Φ13 | Φ15 | Φ22 | Φ25 | Φ36 |
RPM | 450 | 350 | 300 | 250 | 200 |
| Accuracy | Better than ±0.5% |
| Motor Type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 |
| Power Supply | AC220V 50/60Hz (110V can be customized) |
| Power Rate | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |

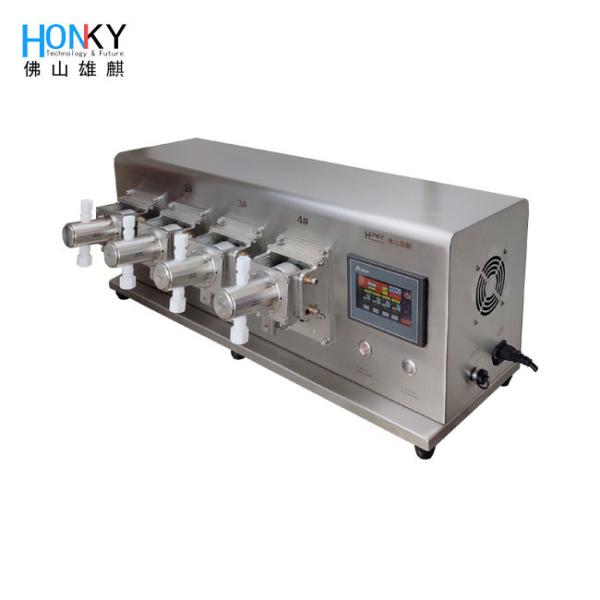

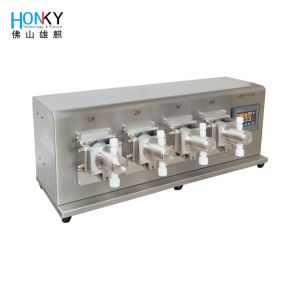

Product display of 4 Heads Ceramic Pump Filling System:
H
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
