    2-24 Core G652D GYXTW Un I- Tube Armoured Outdoor Fiber Optic Cable / Communication SM Optical Fiber

    2-24 Core G652D GYXTW Uni-Tube Armoured Outdoor Fiber Optic Cable Communication Cable SM Optical Fiber


    Constructure

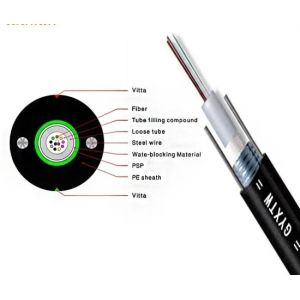

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.


    2-24 Core G652D GYXTW Un I- Tube Armoured Outdoor Fiber Optic Cable / Communication SM Optical Fiber 12-24 Core G652D GYXTW Un I- Tube Armoured Outdoor Fiber Optic Cable / Communication SM Optical Fiber 22-24 Core G652D GYXTW Un I- Tube Armoured Outdoor Fiber Optic Cable / Communication SM Optical Fiber 3

    2-24 Core G652D GYXTW Un I- Tube Armoured Outdoor Fiber Optic Cable / Communication SM Optical Fiber 42-24 Core G652D GYXTW Un I- Tube Armoured Outdoor Fiber Optic Cable / Communication SM Optical Fiber 5


    Feature:

    1. Double wire as strain member provides excellent strain performance
    2. Excellent mechanical performance
    3. Easy to installation and operation
    4. Small outer diameter, lightweight, tight structure, excellent bending property
    5. Good water-resistant properties


    Specification

    Optical Charateristics

    Fiber TypeG.652G.65550/125^m62.5/125^m

    Attenuation

    (+20X)

    850 nm<3.0 dB/km<3.3 dB/km
    1300 nm<1.0 dB/km<1.0 dB/km
    1310 nm<0.36 dB/km<0.40 dB/km
    1550 nm<0.22 dB/km<0.23 dB/km
    Bandwidth850 nm>500 MHz-km>200 Mhz-km
    1300 nm>500 MHz-km>500 Mhz-km
    Numerical Aperture0.200±0.015 NA0.275±0.015 NA
    Cable Cut-off Wavelength cc<1260 nm<1450 nm

    Structure and Technical Specifications

    Fiber Count

    Nominal Diameter

    (mm)

    Nominal Weight

    (kg/km)

    Allowable Tensile Load

    (N)

    Allowable Crush Resistance
    (N/100mm)
    Short TermLong TermShort TermLong Term
    2~127.86015006001500600
    14~248.58515006001500600

    Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for

    more detailed information.


    Application

    Aerial & Duct
