    GYXTW Central Loose Tube Cable 2-24 Core Duct Fiber Optic Cable YD/T 769-2010

    Ask Lasest Price
    Brand Name : MingTong
    Certification : ISO
    Price : 500-3000RNB/KM
    Payment Terms : L/C,T/T
    Delivery Time : It depends on the actual situation
    Supply Ability : 200km/Day
    • Product Details
    • Company Profile

    GYXTW Central Loose Tube Cable 2-24 Core Duct Fiber Optic Cable YD/T 769-2010

    GYXTW Central Tube Type Optic Cable Manufacturer



    Description:

    1. Single jelly compound filled loose tube containing up to 24 fibers
    2. Waterproof tape between the steel tape and loose tube with jelly compound.
    3. Double coated PE corrugated steel tape under PE sheath.
    4. Parallel double steel wire as strength member.
    5. Compact structure, light weight, steel tape armored excellent water-proof layer, good moisture.

    General Specifications:

    Cable TypeCentral Loose Tube fiber optic cable GYXTW
    Fiber TypeSM G.652D
    ApplicationLong-distance communication, LAN
    Recommended installation methodsAerial
    EnvironmentOutdoor
    Temperature Range-40ºC to 70ºC


    Fiber Specifications:

    Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber
    CharacteristicsConditionsSpecified ValuesUnits
    Optical Characteristics
    Mode field diameter (MFD)1310nm
    1550nm
    9.2±0.4
    10.4±0.8
    µm
    µm
    Cut-off wavelength (λcc)≤1260nm
    Attenuation coefficient1310nm
    1383nm
    1550nm
    <0.35
    <0.35
    <0.22
    dB/km
    dB/km
    dB/km
    Macro bending lossφ75mm, 100circles, at 1550nm≤0.1dB
    Attenuation non-uniformity≤0.05dB
    Dispersion coefficient1288~1339nm
    1271~1360nm
    1550nm
    ≤3.5
    ≤5.3
    ≤18
    Ps/(nm.km)
    Ps/(nm.km)
    Ps/(nm.km)
    Zero dispersion wavelength1300~1324nm
    Max zero dispersion slope≤0.093Ps/(nm2.km)
    Group index of refraction (typical value)1310nm
    1550nm
    1.466
    1.467
    Geometric characteristic
    Cladding diameter125.0±1.0µm
    Core/cladding concentricity error≤0.8µm
    Cladding non-circularity≤1.0%
    Coating diameter245.0±10µm
    Cladding/coating concentricity error≤12.0µm
    Coating non-circularity≤8%
    Diameter of colored coating250.0±15µm
    Mechanical characteristic
    Curling (radius)≥4m
    Proof stress>0.69Gpa
    Coating strip forceAverage value
    Peak value
    1.0-5.0
    1.3-8.9
    N
    N
    Dynamic stress corrosion susceptibility parameter (nd value)≥20

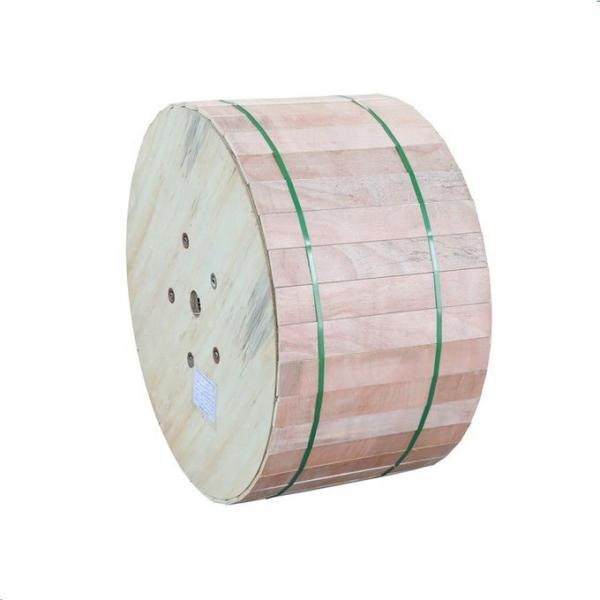

    Packing view : 1-4km/roll in wooden drum

    ​​​​GYXTW Central Loose Tube Duct Fiber Optic Cable YD/T 769-2010 0

    Cable structure:

    GYXTW Central Loose Tube Duct Fiber Optic Cable YD/T 769-2010 1
