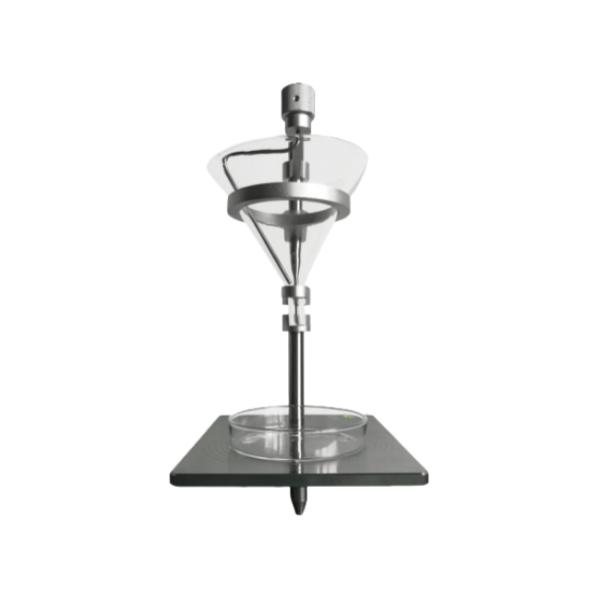

ST-F13B Powder and particle angle of repose tester
The ST-F13B powder and particle angle of repose tester is designed
and produced in accordance with the national standard GB/T 11986-89
for determining the angle of repose of surfactant powders and
particles.
Scope of application:
This product is used by production, operation, and user
laboratories to measure the angle of repose of surfactant powders
and particles.
Applicable standard requirements:
GB/T 11986-89 Surface active agent powders and particles
Determination of angle of repose.
Technical parameters of the measuring instrument:
| Funnel Material | Glass |
| Cone taper | 60° |
| Inner diameter of discharge outlet | 10mm |
| Distance between funnel and container | 75mm |
| Bracket material | Stainless steel or iron plated treatment |
| Environmental temperature | 15-25 ℃ |
| Relative humidity of the environment | ≤ 70% |
| Packaging size | 315 × 295 × 460mm |
| Packaging weight | 7.1kg |
Note: The appearance pictures, dimensions, volume, and weight of the
instrument are for reference only. If there are any updates to the
instrument, there may be slight changes without prior notice.
General performance:
● Compliant with GB-T11986-89 Technical Specification for Measuring
the Angle of Rest of Surfactant Powder and Particles.
● The product meets the requirements of convenient use and
maintenance, safe and reliable, economic and reasonable, practical
and beautiful.
● Installation, debugging, and usage methods of the instrument
● Confirm that the experimental platform for placing this
instrument is in a horizontal state,
● Install the instrument according to the assembly diagram and
technical specifications for measuring the angle of repose of
surface active agent powder and particles in GB-T11986-89.
Installation of instruments:
● There are four adjustable sliding sleeves on the guide rod of the
instrument support. From the top, they are the movable sliding
sleeve of the mixing device, the fixed sleeve at the 60°taper of
the glass funnel, the movable sliding sleeve at the 10mm of the
outlet, and the movable sliding sleeve of the scale
● Loosen and remove the movable sliding sleeve of the mixing
device, pass the glass funnel through the fixed sleeve at the
60°taper and the lower discharge port through the fixed sleeve at
the discharge port 10mm, and make it vertical to the base.
● Place a container with an inner diameter of 100mm and a height of
25mm at the center point with reference to the bottom plate scale
● Adjust the height value between the discharge port under the
glass funnel and the bottom plate by 100mm.
● Adjust the appropriate height visually above the fixed mixing
device and glass funnel, and fix it.
● Complete the test according to the standard requirements
Packing list
| Number | Name | Model and specifications | Unit | Note |
| 1 | Host | | 1 set | |
| 2 | Funnel | Glass material (120mm) | 1 piece | |
| 3 | Overflow tray | Glass material (Φ 100mm) | 1 piece | |
| 4 | Brush | Width 3.0cm | 1 piece | |
| 5 | Certificate of conformity | | 1 copy | |
| 6 | Instructions | | 1 copy | |
