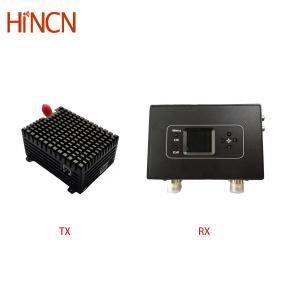

Lightweight COFDM Video Receiver Wireless Transmitter For NLOS Mobile Transmission

Name: Lightweight COFDM Video Receiver Wireless Transmitter For NLOS Mobile Transmission
Brand: Hincn
Price: 798 USD

Ask Lasest Price
Brand Name :	Hincn
Model Number :	HC-S5+HD3
Price :	US$798~US$1,998
Payment Terms :	,T/T,Western Union,MoneyGram,L/C,D/A,D/P
Supply Ability :	689 pcs/ month
Delivery Time :	7~14 working days

Add to Cart

Product Details
Company Profile

Lightweight COFDM Video Receiver Wireless Transmitter For NLOS Mobile Transmission

Light Weight COFDM Wireless Video Transmitter Receiver For NLOS Mobile Transmission

Transmitter Key Features

Modulation	COFDM
Video encoding format	H.265
Low Latency	end-to-end≤120ms
Bandwidth	2/3/4/5/6/7/8MHz adjustable
Input Video format	CVBS:NTSC/PAL
Mini size	674823mm

Applications:

This COFDM wireless video transmitter receiver features ultra-low latency (≤120ms) and advanced H.265 encoding, specifically designed for UAV and UGV that require wireless video transmission signal remain stable and clear even they are moving at high speed.

Other Technical Specifications

Transmitter Model No.	HC-S5
Working voltage	DC11V~DC18V
Working current	Mainboard current:160mA, whole transmitter current:0.5W@≤0.6A DC12V, 1W@≤0.8A DC12V, 2W/@≤1.1A DC12V, 3.5W@≤1.8A DC12V5mm pitch connector
Control interface	Standard RS232 port, 8 data bits, 1 stop bit, even parity, baud rate: 19200
Transparent data interface	Unidirectional serial port (1200-230400 bps) with parity options
Encryption	128-bit AES encryption
Constellation	QPSK(4QAM), 16QAM, 64QAM (default: QPSK)
FEC	1/2, 2/3, 3/4, 5/6, 7/8 (default: 1/2)
Guard interval	1/32, 1/16, 1/8, 1/4 (default: 1/32)
Carriers	2K
Bandwidths	2MHz-8MHz adjustable (default: 2MHz)
Bitrates	1200kbs~20000kbs adjustable (default: 1500kbs)
Transmitted power	Mainboard: -7 dBm; Transmitter: 0.5W-5W (customizable)
Frequency range	170~2900MHz adjustable in 100KHz steps
Video encoding	H.265
Protection	Aluminum case with rust-proof and shock-resistant design
Size	Mainboard: 50×35×10mm; Transmitter: 67×48×23mm
Weight	Mainboard≤15g,Transmitter:≤85g

COFDM Video Receiver Specification

Receiver model No.	HD3
Frequency	170-860MHz VHF&UHF
Bandwidths	2/3/4/5/6/7/8MHz adjustable
RF input level	-94dBm~0dBm (at 8M bandwidth)/-98dBm~0dBm (at 2M bandwidth)
RF input impedance	50Ω
RF input connector	SMA female
Modulation	COFDM
Constellation	QPSK,16QAM,64QAM (optional)
FEC	1/2, 2/3, 3/4, 5/6, 7/8 (optional)
Carriers	2K
Guard interval	1/32, 1/16, 1/8, 1/4 (optional)
Video decoding	H.265
Aspect ratio of the screen	4:3 and 16:9
Video output format	HDMI/CVBS
Working voltage	DC12V <0.3A
Operating temperature	-35℃~+80℃
Receiver size	13611535m
Receiver weight	0.35kg
