100km~150km Range TDD Video Transmitter and Receiver Module with AES128 Encryption for UAV Datalink

• TDD OFDM video transmitter and receiver module for video data Link
• RF Power: 25±2dBm+10W external power amplifier
• Working Frequency: 806~826HMz, 1428~1468MHz, 2402~2482MHz
• Transparent IP Ethernet (2* Ethernet ports) and serial data(3* TTL/RS232 uart) sync telecommunication
• Audio input and output with codec
• Transmission range 100km~150km (UAV-to-ground) with 10W external power amplifier
• Great transfer rate for uplink and downlink

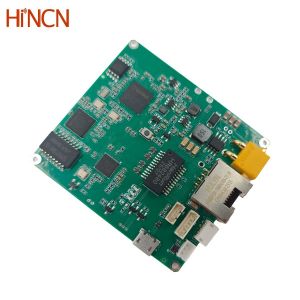

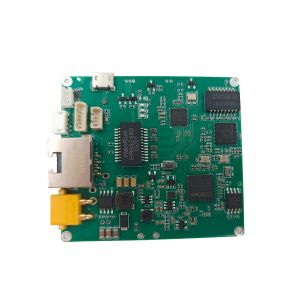

HCL5-M100 TDD video transmitter receiver module was designed for video data wireless transmission with two way wireless data link. This OFDM radio module works at 800MHz, 1.4GHz and 2.4GHz bands, with frequency hopping technology (FHSS) to ensure the stability of signal transmission.

The TDD video transmitter receiver module supports two operating modes: Access Node or Central Node. It can be managed through Web UI or AT command via uart3. The module supports up to 16 Access Nodes connected to a Central Node, all sharing the maximum 30Mbps@20MHz throughput bandwidth. Uplink and downlink stream ratio can be controlled through web UI or AT command.

Q: This TDD video transmitter receiver module seems to support IP camera, what if I want to use a camera with HDMI or SDI video output?

A: For cameras with HDMI, SDI, AHD or AV output, you'll need our mini encoder device to encode the signal for transmission. At the receiver end, connect directly to your computer or NVR. For HDMI monitor output, our decoder device can convert the digital data back to HDMI video and audio signals.
