    ODM COFDM Modulator Video Transmitter Module With HDMI CVBS AV Input

    Ask Lasest Price
    Brand Name : Hincn
    Model Number : HCT820-M
    Price : US$798.00~US$995.00
    Payment Terms : ,T/T,Western Union,MoneyGram,D/P,D/A,L/C
    Delivery Time : 7~14 working days
    Supply Ability : 999pcs/ month
    • Product Details
    • Company Profile

    ODM COFDM Modulator Video Transmitter Module With HDMI CVBS AV Input

    Wireless Video Transmitter Module COFDM Modular Mainboard With HDMI CVBS AV Input


    Key Features:

    • COFDM modulation makes it suitable for NLOS wireless video transmission.
    • H265/H264 video encode, support multiple video formats.
    • Support video input via HDMI and AV interface, 2 channels video compression and transmission.
    • AES256 encryption, military-level data security.
    • Support non-line-of-sight high-speed mobile transmission up to 800km/hour, suitable for UAV Drone video download link.

    Overview:

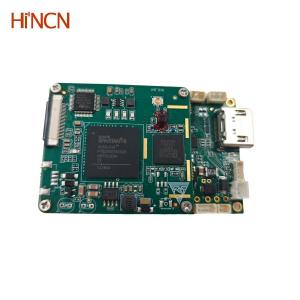

    The COFDM Modular transmitter module features HDMI/AV inputs with COFDM modulation technology and H.265/H.264 encoding that complete video audio transmission in high-speed motion and NLOS (none line of sight) conditions with low latency. It consists of two boards(video codec encoder board and COFDM modulation board) with flat cable connection. The module also provides one transparent transmission uart(one way).


    Technical Specifications:


    Wireless Video Transmitter Module COFDM Modular Mainboard With HDMI CVBS AV Input
    Input / Output interface
    HD video inputHDMI,HDMI type A Connector
    Composite video input4PIN PH1.5mm connector(CVBS Analog Audio Video Input)
    UART Data3PIN 1.5mm pitch connector,default to be TTL3.3V level, standard RS232 level can also be optional before shipment.
    UART Control4PIN PH1.5mm connector,TTL3.3V.It can be connected to our Parameter Configure Board, and can also be connected to a PC or other host computer.
    Power input2PIN PH2.0mm connector (12V Power Supply)
    RF outputIPEX
    COFDM Wireless Modulation Transmission
    Wireless modulationCOFDM(DVB-T)
    IFFT mode2K
    Wireless bandwidth1MHz~8MHz adjustable,1KHz step forward
    FEC1/2, 2/3, 3/4, 5/6, 7/8
    Guard interval1/32, 1/16, 1/8, 1/4
    ConstellationQPSK, 16QAM, 64QAM
    Wireless code stream0.5Mbps to 31.67Mbps( bites per second)
    RF
    Frequency bands200MHz~2300MHz(other bands can be supported with special manufacturing)
    Tunning Step Size1KHz
    Power outConfigurable from -93dBm to -5dBm(subject to frequency)
    Audio and video processing
    Support video inputDefault single-channel video input: HD or SD. Video input is automatically detected after power on. If connected at the same time, it defaults to the preferred HDMI input, and can also be changed to the preferred AV input. Optional dual video input simultaneous encoding and transmission.
    Supported video formats1080@60P, 1080@50P, 1080@30P, 1080@25P, 1080@24P, 1080@60I, 1080@ 50I, 1080@30I, 720@60P, 720@50P, 720@30P, …… 720*480 60I(NTSC), 720*576 50I(PAL)
    Video encodingH265/H264
    Audio inputHDMI embedded audio or analog audio(Specify Mic in/Line in)
    audio formatAAC, 16bit, stereo, 32Kbps
    EncryptionAES256
    LatencyH265:200~250 ms; H264: 50~130 ms
    Monitoring and controlComprehensive setup with our Config Panel or other device via control UART
    Temperature Range
    Full specification0° to +70°C Ambient (Optional: -40° to +85°C )
    Storage–40° to +85°C
    Dimensions
    Size70*45*14mm(not including connectors out of the board)
    Power requirements
    Input range

    7~24VDC

    Power Consumption

    <340mA@12V
