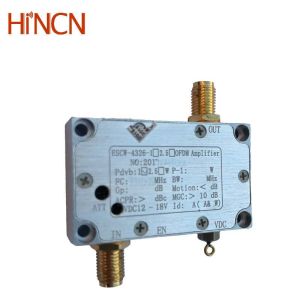

1W 2.5Watt Mini Broadband PA RF Power Amplifier Module For COFDM DVB-T Transmitter

    Buy cheap 1W 2.5Watt Mini Broadband PA RF Power Amplifier Module For COFDM DVB-T Transmitter from wholesalers

    Buy cheap 1W 2.5Watt Mini Broadband PA RF Power Amplifier Module For COFDM DVB-T Transmitter from wholesalers
    • Buy cheap 1W 2.5Watt Mini Broadband PA RF Power Amplifier Module For COFDM DVB-T Transmitter from wholesalers
    • Buy cheap 1W 2.5Watt Mini Broadband PA RF Power Amplifier Module For COFDM DVB-T Transmitter from wholesalers

    1W 2.5Watt Mini Broadband PA RF Power Amplifier Module For COFDM DVB-T Transmitter

    Ask Lasest Price
    Brand Name : Hincn
    Model Number : HCP1-4326
    Price : US$268.00~US$298.00
    Payment Terms : ,T/T,Western Union,MoneyGram,D/P,D/A,L/C
    Delivery Time : 7~14 working days
    Supply Ability : 300 pcs/month
    • Product Details
    • Company Profile

    1W 2.5Watt Mini Broadband PA RF Power Amplifier Module For COFDM DVB-T Transmitter

    1W 2.5 Watts Mini Size PA RF Power Amplifier For COFDM DVB-T Transmitter
    Key Features
    • Does not interfere with GPS signals
    • High linearity and high reliability, open circuit and short circuit will not damage the power amplifier
    • Surface treated with brushed finish or frosted texture, achieving natural conductive oxidation effect
    • Made of pure aluminum with excellent heat dissipation and fully metal shielded structure
    • Wide Voltage Range: 12 ~ 18V, suitable for professional aerial photography transmitters
    • Mini size: 43*26*12mm (Bare board size: 35*18*5mm)
    • Compact design with only 7mm MCX connector protrudes away from the cavity when inserted
    • Gain greater than 43dB (typical value 45/49dB)
    • High output power: Nominal digital power of digital TV is 1W, shoulder ratio greater than 36dB
    • Fixed with 4 through holes (diameter 2.5mm), nuts recessed and hidden inside
    Technical Specifications
    ParameterSpecification
    Frequency570~580MHz (other frequencies available)
    Output Power≥1 W
    Shoulder Ratio≥36 dBc&1W (typical value:38～42dBc)
    GainGreater than 43 dB (typical value: 45/49 dB)
    In-band Group Delay≤50ns
    In-band fluctuations≤ 0.5 dB (typical value ≤0.25 dB)
    Power supply+12V～+18V Vdc
    Working current0.6～0.8A@12.5V
    Working temperature-25～+55℃
    Storage temperature-45～+65℃
    Size43*26*12mm
    RF connectorSMA or MCX
    Product Drawing
    Technical drawing of 1W 2.5 Watts Mini Size PA RF Power Amplifier
    Frequently Asked Questions
    Q1. Can you make the RF Power Amplifier to be other frequencies? Output 2W,5W and more?
    Yes, we have Power Amplifier of different frequencies, different powers and different sizes. Normally, the frequency range is from F0+-15MHz, if you need 600MHz as the center frequency,then we will make frequency range to be 585~615MHz. And we have different power amplifiers with 1W, 2W, 5W,10W,20W,50W.
    Q2. How long is the warranty?
    1 Year warranty and lifetime maintenance.
