    Horizontal Traveling Scraper System - Stainless Steel Wastewater Treatment

    Ask Lasest Price
    Brand Name : longdai
    Model Number : ZBG-3
    Certification : ISO9001 CE
    Price : Negotiatable
    Payment Terms : L/C,T/T
    Supply Ability : 500 sets per Years
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Horizontal Traveling Scraper System - Stainless Steel Wastewater Treatment

    Stainless Steel Traveling Bridge Sludge Scraper and Suction Machine for Wastewater Treatment

    This traveling bridge-type sludge removal system is designed for horizontal sedimentation tanks in municipal and industrial wastewater treatment plants. It efficiently collects and extracts settled sludge by traversing the tank length, simultaneously scraping and pumping out the waste for continuous tank cleaning and optimal sedimentation performance.

    Product Features

    • Robust & Lightweight Truss Structure: The bridge utilizes a high-strength truss design that is lighter than conventional structures, reducing overall weight while extending service life. Travel wheels are made of hardened steel for enhanced durability.

    • Low Operation & Maintenance Costs: Requires minimal maintenance, features low power consumption, and is equipped with optimally selected pumps for stable, reliable, and cost-efficient performance.

    • Precise Travel Control: An advanced drive mechanism ensures synchronized movement on both sides, eliminating tracking errors and preventing deviation during operation.

    Main Components
    The system primarily consists of:

    • Traveling bridge frame

    • Submerged suction pumps

    • Sludge suction pipes and discharge headers

    • Bilateral drive unit

    • Electrical control cabinet

    • Running tracks and travel switches

    • Cable management system (cable reel or sliding collector)

    Working Principle
    The equipment is supported by a dual-beam structure that spans the sedimentation tank, with bilateral drives ensuring balanced movement. Rails installed on both sides of the tank guide the machine. As it travels from one end of the tank to the other, the submerged suction pumps extract sludge while in motion. Upon reaching the end of the tank, the machine automatically reverses direction after contacting the limit switch, returning to the starting position while continuing suction operations, completing a full working cycle.


    Parameters


    ModelNL 3xLNL 4.5xLNL 5xLNL 6xL
    Pool width B(m)34.556
    Recommended pool length L(m)8~168~168~168~16
    Recommended pool depth H(m)3.53.53.53.5
    Driving power(Kw)2.22.22.23
    Scraper moving speed (m/min)1111
    Scrch spacing(m)2222
    Incoming water turbidity(mg/L)≤500≤500≤500≤500

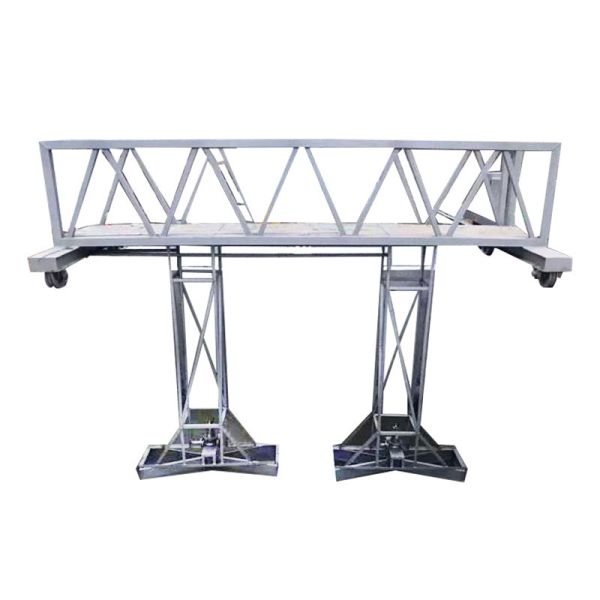

    Real Picture


    Quality Horizontal Traveling Scraper System - Stainless Steel Wastewater Treatment for sale
