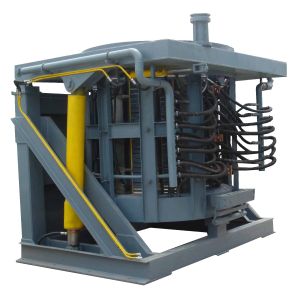

KGPS-2T 1400KW Steel Shell large capacity copper scrap melting
furnace
1. Brief Introduction of Steel Shell Induction Melting Furnace:
The steel structure induction melting furnace adopts 2 hydraulic
cylinders as the way of tilting the furnace, and it is generally
called a steel shell furnace.
Product main features:
a. Automatic equipment, easy to operate, high stability
b. High efficiency and energy consumption less than 550KWH/T
c. Electronic components using well-know brands at home and abroad
2. Technical Parameter of Steel Shell Induction Melting Furnace:
Furnace Model | Rated Capacity | Rated Power | MF Frequency | Power Input Voltage | MF Output Voltage | Melting Time | Electricity Consumption | Transformer Capacity Required |
T | KW | KHZ | V | V | Minutes/T | KWH/T | KVA |
KGPS-250 | 0.25 | 250 | 1 | 380 | 750 | 65 | 680 | 300 |
KGPS-400 | 0.5 | 400 | 1 | 380 | 1600 | 65 | 680 | 400 |
KGPS-500 | 0.75 | 500 | 1 | 380 | 1600 | 65 | 650 | 600 |
KGPS-700 | 1 | 700 | 0.7 | 660 | 2400 | 60 | 640 | 800 |
KGPS-1000 | 1.5 | 1000 | 0.7 | 660 | 2400 | 60 | 640 | 1000 |
KGPS-1400 | 2 | 1400 | 0.5 | 750 | 2400 | 65 | 640 | 1800 |
KGPS-2000 | 3 | 2000 | 0.5 | 950 | 3200 | 65 | 640 | 1800 |
KGPS-3000 | 5 | 3000 | 0.5 | 950 | 3200 | 70 | 620 | 2500 |
KGPS-4000 | 6 | 4000 | 0.5 | 950 | 3600 | 70 | 600 | 3150 |
KGPS-4500 | 8 | 4500 | 0.3 | 950 | 3600 | 70 | 580 | 4000 |
KGPS-6000 | 10 | 6000 | 0.3 | 950 | 3600 | 65 | 550 | 5000 |
KGPS-8000 | 12 | 8000 | 0.3 | 950 | 5000 | 60 | 520 | 6300 |
KGPS-9000 | 15 | 9000 | 0.3 | 950 | 5000 | 70 | 500 | 8000 |
3. Advantages of Steel Shell Melting Furnace:
1) Rugged and elegant, especially for large-capacity furnaces,
which require a strong rigid structure. From the safety point of
the tilting furnace, try to use steel shell furnace.
2) The yoke made of silicon steel sheet shields and emits magnetic
lines generated by the induction coil, reduces magnetic leakage,
improves thermal efficiency, increases production, and saves energy
by 5%-8%.
3) The presence of the furnace cover reduces heat loss and
increases the safety of the equipment.
4) Long service life, steel shell furnace due to less magnetic
leakage, equipment life is much higher than aluminum shell furnace.
The normal service life is generally more than 10 years.
5) Safety performance :The steel shell furnace is much better than
the aluminum shell furnace. When the aluminum shell furnace is
smelted, the aluminum shell is easily deformed due to high
temperature and heavy pressure, and the safety is poor. The steel
shell furnace uses a hydraulic tilting furnace and is safe and
reliable.
4. Large Induction Melting Furnace Application:
(1) iron, pig iron, cast iron;
(2) steel, stainless steel, cast steel, carbon steel and bearing
steel;
(3) gold, silver, platinum;
(4) copper, brass, bronze;
(5) aluminum, aluminum alloy;
(6) zinc, lead, tin, magnesium, nickel, titanium.
