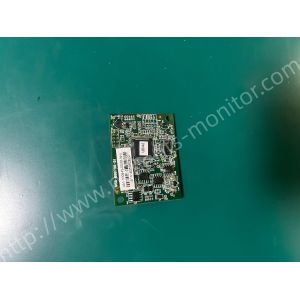

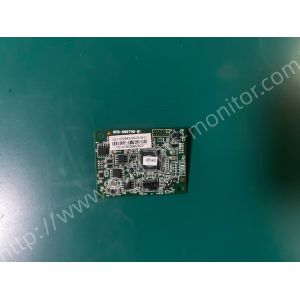

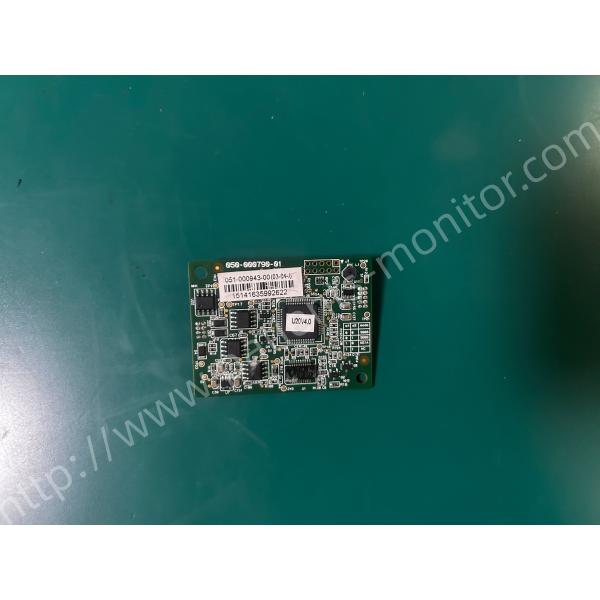

Mindray IPM10 SpO2 Board 050-000790-01 Blood Oxygen Detection PCB

Mindray IPM10 Patient Monitor SpO2 Board Blood Oxygen Detection PCB Board 050-000790-01 051-000943-00

Description

The SpO2 board is specifically responsible for collecting, processing, and calculating blood oxygen saturation (SpO₂) and pulse rate data, converting them into digital signals for display and alarm generation. The oximeter, typically clipped to the patient's finger, toe, or earlobe, contains two light-emitting diodes (LEDs): one emitting red light (approximately 660nm) and the other emitting infrared light (approximately 940nm). The oximeter provides precise, alternating drive currents to these LEDs, causing them to illuminate in a specific sequence and frequency. The calculated SpO₂ value, pulse rate value, and waveform data are transmitted to the monitor's main control system via an internal bus (such as I2C, SPI, or UART) for display and recording, and can be used to trigger alarms (such as those indicating low blood oxygen levels or abnormal heart rate).

How to test the SpO2 function:

1. Connect SpO2 sensor to the SpO2 connector of the monitor. Set [Patient Cat.] to [Adu] and [PR Source] to

[SpO2].

2. Apply the SpO2 sensor to your ring finger (assume that you stay healthy).

3. Check the Pleth wave and PR reading on the screen and make sure that the displayed SpO2 is within 95% and

100%.

4. Remove the SpO2 sensor from your finger and make sure that an alarm of SpO2 Sensor Off is triggered.

Warranty

Whether it is new equipment or used equipment, we provide 90 days long time warranty. Different machines have different shelf life, you can contact us to inquire or extend the shelf life.

Delivery Details

Express delivery method: DHL, FedEx, UPS, etc.

Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.

If your want to know any shipping details, you can contact us at any time.

Quality

Whether it is new equipment or 碳equipment, our engineers will conduct a comprehensive inspection before arranging delivery to ensure the use of the product, and we have a 3 month warranty period. If you have any problems after receiving the goods, you can contact us, we will try our best to help you, so you can order with confidently.

Warning

1. Try to avoid long-term storage, especially in high temperature and high humidity environments.

2. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.

3. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.

4. Please keep it away from water and fire.
