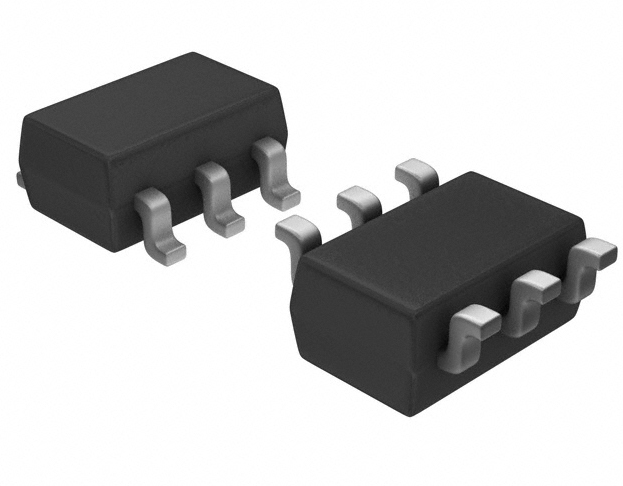

    SN74LVC1T45DBVR Single-Bit Dual-Supply Voltage Level Translator with Auto Direction Control 1.65V to 5.5V High Speed Low Power Tiny Package and 32mA Output Drive

    SN74LVC1T45DBVR Single-Bit Dual-Supply Voltage Level Translator with Auto Direction Control 1.65V to 5.5V High Speed Low Power Tiny Package and 32mA Output Drive

    andnbsp;

    Features

    andbull; ESD protection exceeds JESD 22:

    andnbsp; andndash; 2000V Human-Body Model (A114-A)

    andnbsp; andndash; 200V Machine Model (A115-A)

    andnbsp; andndash; 1000V Charged-Device Model (C101)

    andbull; Available in the Texas Instruments NanoFreeandtrade; package

    andbull; Fully configurable dual-rail design allows each port to operate over the full 1.65V to 5.5V power-supply range

    andbull; VCC isolation feature andndash; if either VCC input is at GND, both ports are in the high-impedance state

    andbull; DIR input circuit referenced to VCCA

    andbull; Low power consumption, 4andmicro;A maximum ICC

    andbull; andplusmn;24mA output drive at 3.3V

    andbull; Ioff supports partial-power-down mode operation

    andbull; Maximum data rates

    andnbsp; andndash; 420Mbps (3.3V to 5V translation)

    andnbsp; andndash; 210Mbps (translate to 3.3V)

    andnbsp; andndash; 140Mbps (translate to 2.5V)

    andnbsp; andndash; 75Mbps (translate to 1.8V)

    andbull; Latch-up performance exceeds 100mA per JESD 78, Class II

    andnbsp;

    Applications

    andbull; Personal electronic

    andbull; Industrial

    andbull; Enterprise

    andbull; Telecom

    andnbsp;

    Description

    This single-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65V to 5.5V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65V to 5.5V. This allows for universal low-voltage bidirectional translation between any of the 1.8V, 2.5V, 3.3V, and 5V voltage nodes. The SN74LVC1T45 is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input activate either the B-port outputs or the A-port outputs. The device transmits data from the A bus to the B bus when the B-port outputs are activated and from the B bus to the A bus when the A-port outputs are activated. The input circuitry is always active on both A and B ports and must have a logic HIGH or LOW level applied to prevent excess ICC and ICCZ.

    The SN74LVC1T45 is designed so that the DIR input is powered by VCCA. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. The VCC isolation feature is designed so that if either VCC input is at GND, then both ports are in the high-impedance state.

    andnbsp;

    NanoFreeandtrade; package technology is a major breakthrough in IC packaging concepts, using the die as the package.

    andnbsp;

    INFORMATION

    Category
    Manufacturer
    Texas Instruments
    Series
    Packaging
    Tape andamp; Reel (TR)
    Cut Tape (CT)
    Digi-Reelandreg;
    Part Status
    Active
    Translator Type
    Voltage Level
    Channel Type
    Bidirectional
    Number of Circuits
    1
    Channels per Circuit
    1
    Voltage - VCCA
    1.65 V ~ 5.5 V
    Voltage - VCCB
    1.65 V ~ 5.5 V
    Input Signal
    -
    Output Signal
    -
    Output Type
    Tri-State, Non-Inverted
    Data Rate
    420Mbps
    Operating Temperature
    -40anddeg;C ~ 85anddeg;C (TA)
    Features
    -
    Mounting Type
    Surface Mount
    Package / Case
    SOT-23-6
    Supplier Device Package
    SOT-23-6
    Base Product Number
