OD-660 Split Frame Pipe Cutting Machine

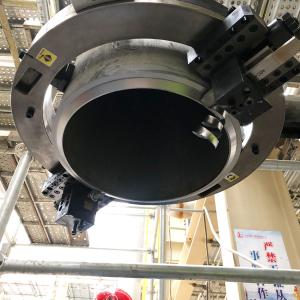

The OD-660 split frame pipe cutting machine is suitable for
pipelines from 500 mm to 660 mm. Its heavy-duty clamshell body
provides stability and durability for industrial field service. The
machine applies cold cutting, preventing sparks and thermal
distortion, ensuring clean and accurate results. The OD-660 is used
in offshore engineering, shipbuilding, power stations, and
petrochemical plants. With adjustable tooling slides, it performs
precise cutting, beveling, and counter-boring operations. Easy
setup, strong clamping, and efficient power drive options make it
an excellent solution for both fabrication shops and demanding
onsite pipeline maintenance projects.
SPECIFICATIONS
| Item | ODM660 (Electric) | ODP660 (Pneumatic) | ODH660 (Hydraulic) |
|---|
| Drive Type | Metabo Electric Motor | Pneumatic Motor | Hydraulic Motor |
| Power | 3.22 Hp / 2.4 Kw | 3.75 Hp / 2.76 Kw | 10 Hp / 7.5 Kw |
| Air Consumption | N/A | 2.8 m³/min @ 0.6 MPa | N/A |
| Voltage | 220-240 V, 50/60 Hz | N/A | 380 V, 50/60 Hz |
| Working Range (OD) | 500–660 mm (20"–26") | 500–660 mm (20"–26") | 500–660 mm (20"–26") |
| Wall Thickness | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm | Standard tool silde: ≤30 mm |
| Wall Thickness | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm | Heavy wall tool slide: 200 mm |
| Feed Rate | 0.083 mm/rev | 0.083 mm/rev | 0.083 mm/rev |
KEY FEATURES
Cold Cutting Technology
OD660 employs mechanical cold cutting to produce thermally
undisturbed pipe ends, maintaining base material integrity and
eliminating the need for post-cut treatment.
Split Frame Advantage
The split-frame technology allows quick mounting around in-service
pipelines, significantly reducing installation time and minimizing
operational disruption.
Steel and Aluminum Body Options
Choose the steel body for superior rigidity in demanding
applications, or opt for the aluminum version to reduce operator
fatigue during extended overhead tasks.
Flexible Accessories and Drives
With modular accessories for various edge preparations and
compatibility with multiple drive types, this machine ensures
versatility across industrial maintenance scenarios.
POWER OPTIONS
Electric Motor, Pneumatic Motor and Hydraulic Motor
ODM (Electric):
Metabo Electric Motor
Model:W24-230MVT
Motor Power:2.4 Kw (3.22 Hp) / 10 A
Power Supply:220-240 V, 50/60 Hz
Made in Germany
Suitable for more than 80% of applications. Requires 220V-50Hz
power supply and is convenient for on-site use.
ODP (Pneumatic):
Pneumatic Motor
Motor Power:2.76 Kw (3.75 Hp)
Air Consumption:2.8 m³/min @ 0.6 Mpa
Suitable for sites with explosion-proof requirements. However,
performance may be affected if the air supply is far from the site
or if air pressure is low.
ODH (Hydraulic):
Hydraulic Motor
BMR-100 (ODH168-ODH457)
BMR-125 (ODH508-ODH830)
BMR-160 (ODH914-ODH1230)
Hydraulic Power Unit
Model: HPU-10E
Motor power: 7.5 Kw (10 Hp)
Power supply: 3 Ph, 380-440 V+N, 50/60 Hz
Max flow: 32 L/min
Pressure: 12.5 Mpa
Recommended for model OD830 and above to ensure greater power.
Please note, however, that hydraulic stations are costly and
inconvenient to transport.
TOOL SLIDE
3" Standard Tool Slide Kit
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD168-OD762.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall
thickness in one pass.
Max. Travel: 75 mm.
3" Cutting Tool Slide, Part No. ODSCT-3001A
3" Beveling Tool Slide, Part No. ODSBT-3002A
4" Standard Tool Slide Kit
(Cutting Tool Slide and Beveling Tool Slide)
Standard Tool Slide for model OD830-OD1230.
With standard 12×20mm beveling tool bits, achieve cut / bevel upto 30 mm wall
thickness in one pass.
Max. Travel: 100 mm.
4" Cutting Tool Slide, Part No. ODSCT-3003A
4" Beveling Tool Slide, Part No. ODSBT-3004A
3" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD168-OD762.
Install 25 mm width tool bits that can cut / bevel tubes of any
wall thickness.
Max. Travel: 75 mm.
3" Heavy Wall Cutting Tool Slide ( Heavy Wall Beveling Tool Slide),
Part No. ODHT-3005A
4" Heavy Wall Tool Slide
Heavy Wall Tool Slide for model OD830-OD1230.
Install 25 mm width tool bits that can cut / bevel tubes of any
wall thickness.
Max. Travel: 100 mm.
4" Heavy Wall Cutting Tool Slide ( Heavy Wall Beveling Tool Slide),
Part No. ODHT-3006A
Tracking Tool Slide
O.D. Tracking Slide- can be solution for all misshapen tubes and
pipes. Tracking Tool Slides feature durable spring and tracking
module that follows the contours of a deformed or less than
perfectly round pipe. Install 25×25 mm tool bits.
Max. Travel: 55 mm.
Tracking Tool Slide, Part No. ODST-3007A
Counterboring Tool Slide
Designed for the precision counterboring of tube and pipe inside
diameter. The Counterboring Tool Slide can be attached directly to
the standard tool slide on all OD machines. Install 08×30 mm tool bits.
Max. Travel: 70 mm.
Counterboring Tool Slide, Part No. ODCBT-3008A
Swivel Counterboring Tool Slide, Part No. ODCBT-3009A
SPLIT FRAME PIPE CUTTING MACHINE SELECTION TABLE
| Model | Working Range (mm) | Working Range (inch) | Tool Slide |
| OD-89 | 18-19 mm | 0.7"-3.5" | 1" |
| OD-168 | 50-168 mm | 2"-6" | 3" |
| OD-230 | 80-230 mm | 3"-8" | 3" |
| OD-275 | 114-275 mm | 5"-10" | 3" |
| OD-325 | 159-325 mm | 6"-12" | 3" |
| OD-377 | 200-377 mm | 8"-14" | 3" |
| OD-426 | 273-426 mm | 10"-16" | 3" |
| OD-457 | 300-457 mm | 12"-18" | 3" |
OD-508 | 355-508 mm | 14"-20" | 3" |
| OD-560 | 400-560 mm | 16"-22" | 3" |
| OD-610 | 457-610 mm | 18"-24" | 3" |
| OD-660 | 500-660 mm | 20"-26" | 3" |
| OD-715 | 560-715 mm | 22"-28" | 3" |
| OD-762 | 600-762 mm | 24"-30" | 3" |
| OD-830 | 660-830 mm | 26"-32" | 4" |
| OD-914 | 762-914 mm | 30"-36" | 4" |
| OD-1066 | 914-1066 mm | 36"-42" | 4" |
| OD-1230 | 1066-1230 mm | 42"-48" | 4" |
TYPES OF GROOVE WELDS
A portable beveling machine can be equipped with different tool
slides and tool bits to process V-grooves, J-grooves, and compound
grooves, as well as perform internal beveling and boring
operations.

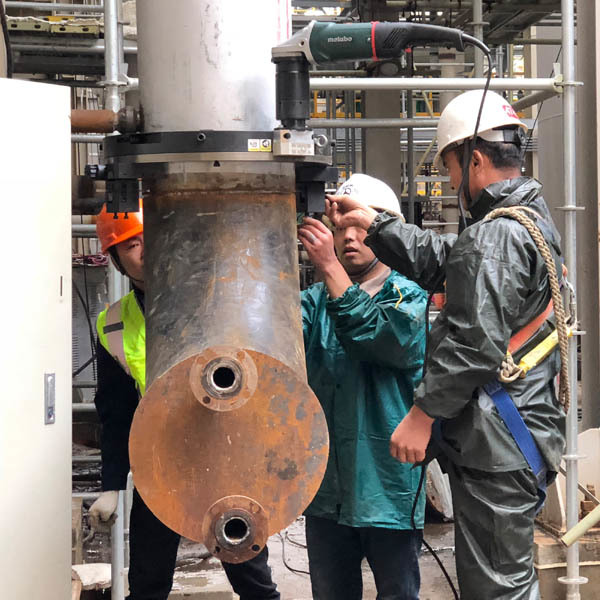

ONSITE SPLIT FRAME PIPE CUTTING MACHINE APPLICATIONS
OD660 Split Frame Pipe Cutting Machine Applications
With a capacity of 500mm to 660mm, the OD660 is used in oil and gas
transmission, petrochemical plants, and power generation
facilities. It performs non-thermal cutting and beveling,
preserving material properties and ensuring weld integrity. The
machine is ideal for large-diameter pipeline construction,
compressor stations, and refinery piping modifications. In offshore
wind farms and marine platforms, it facilitates efficient pipe
preparation under harsh conditions. The split-frame design allows
quick installation, minimizing downtime and operational costs. It
is also employed in water transportation projects and heavy
industrial complexes for reliable, high-quality joint preparation.
The OD660’s adaptability to various drives and tooling
configurations enhances its onsite utility.
