    MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas

    Ask Lasest Price
    Brand Name : Zetron
    Model Number : MIC500S
    Certification : CE ATEX SIL
    Price : USD 890/set - 7298/set
    Payment Terms : T/T
    Supply Ability : 3000 SET / month
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

    MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas

    MIC500S 0-100%LEL Methane CH4 Gas Detector for LPG LNG Natural Gas
    Professional-grade gas detection system with LCD display for continuous monitoring of over 500 gas types. Ideal for industrial safety applications.
    Key Features
    Infrared Remote Control
    ①Standard configuration includes the infrared remote control, it is possible for one-key operation via infrared remote
    control function key, which can achieve the operation without opening the cover under hazardous situations.
    such as: the functions like modification of the alarm point, density calibration, zero-point calibration, noise reduction,
    restoring the factory setting, and so on.

    Multiple Optional Functions, Meet the Personalized Needs ■Integrated sound & light alarming device, split-type sound & light alarming device,
    24V DC stabilized voltage power supply.
    ■Wireless transmission
    ①It is possible to transfer data wirelessly to the cell phone, remote monitoring center, monitoring computers and other monitoring equipment, which will utilize the upper-level host to realize the functions of data analysis, storage, printing or the like on the computer.

    ■ Pretreatment system
    ①Room temperature and high humidity pretreatment system
    ②High temperature and high humidity pretreatment system
    ③High temperature and high humidity and high dust pretreatment system

    ■Accessory for connection with computer for monitoring
    ①Free upper-level host software, RS485 / RS232 converter
    ②For laptop without RS232 interface, USB / RS232 converting and connecting cable is needed, if the network transmission is needed, TCP / IP converter will be further needed.

    ■Installation type accessories optional
    ①wall mounting bracket;
    ②mounting clips for fixation on the pipes (1/2", 3/4" pipe);
    ③stainless steel threaded welding seat or flange to be installed on the pipeline (it is necessary to mark the flange or pipe size, such as DN50, DN15 ...);
    ④Rain cover;
    ⑤24VDC or 220AC sampling pump (sampling distance is 10 m);
    ⑥vacuum pump (sampling distance is greater than 40 m);
    ⑦24V switching power supply;
    ⑧pressure reducing valve;
    ⑨flow meters.

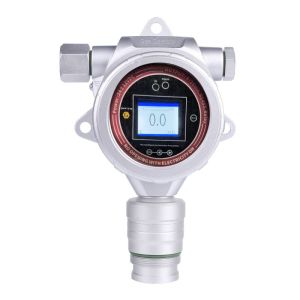

    MIC500S Gas Detector front view showing LCD display and control panel
    MIC500S Gas Detector side view showing ports and connections
    Close-up of MIC500S LCD display showing gas concentration readings
    Example installation of MIC500S Gas Detector in industrial setting
    Technical diagram of MIC500S Gas Detector components
    Detailed view of MIC500S Gas Detector internal components
    MIC500S Gas Detector operating in industrial environment
    Certification details and safety approvals for MIC500S Gas Detector
    Technical Specifications
    Detection GasEX, Toxic gases, oxygen, carbon dioxide, flammable and explosive gases, TVOC, etc.
    Range0~1, 10, 100, 1000, 5000, 50000 ppm (mg/m³); 0~100% LEL; 0~200 mg/L; 0~20%, 50%, 100% VOL; Custom ranges available
    Dimensions210*170*85mm (L*H*W)
    Weight1.8 Kg
    InstallationPipeline Type or Wall Mounting
    Display1.7-inch high-definition color screen
    EnvironmentTemperature: -40℃ ~ +70℃
    Humidity: ≤10 ~ 95% RH (regular)
    ApprovalsIP65; Exd Ⅱ CT6
    Power Supply12-30VDC (standard 24V), DC stabilized voltage switching power supply of 1A or greater
    AccessoriesManual, qualification certificate, warranty card, outer packaging box
    Optional ItemsAlarms, Wireless Transmission, Pretreatment System, SD Card, Temperature/Humidity Measurement, Computer monitoring accessories
    Applications
    Industrial applications of MIC500S Gas Detector in various settings
