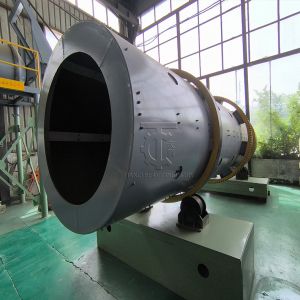

Introduction of rotary drum granulator for fertilizer
The rotary drum granulator (also called a rotary granulator) is a
key machine in the compound fertilizer industry—it shapes materials
into specific granules. It works for both cold and hot granulation
processes, and can produce large quantities of compound
fertilizers, including high-concentration, medium-concentration,
and low-concentration ones.
Its main working principle is wet granulation. Specifically, we add
a controlled amount of water or steam to the basic fertilizer
ingredients. This lets the ingredients react fully inside the drum.
At the same time, the pressure between particles makes the
materials clump into round granules, which finally completes the
granulation.
Parameter
Model | Inner diameter (m) | Inclination (° ) | Rotation speed ( r/min ) | Power ( kw) | Capacity ( t/h ) |
ZG1240 | 1.2 | 2-5 | 4.7 | 5.5 | 1-3 |
ZG1450 | 1.4 | 2-5 | 5 | 7.5 | 3-4 |
ZG1560 | 1.5 | 2-5 | 5 | 11 | 5-8 |
ZG1870 | 1.8 | 2-5 | 3.9 | 15 | 8-10 |
ZG2080 | 2 | 2-5 | 3.9 | 18.5 | 10-15 |
ZG2290 | 2.2 | 2-5 | 3.2 | 22 | 15-20 |
ZG24100 | 2.4 | 2-5 | 3 | 30 | 20-25 |
Applications of Drum Granulators
A drum granulator is highly versatile and can process a wide range
of raw materials, primarily used in fertilizer production (the core
application field) and also applicable to some industrial particle
processing scenarios. The specific raw material categories are as
follows:
Core Application: Raw Materials for Fertilizer Granulation
This is the most common use of drum granulators, suitable for both
organic and inorganic fertilizer production, with raw materials
including:
Inorganic fertilizer (compound fertilizer) raw materials:
Nitrogenous fertilizers: Urea, ammonium nitrate, ammonium sulfate,
ammonium chloride (usually mixed with other materials to avoid
caking).
Phosphatic fertilizers: Superphosphate, diammonium phosphate (DAP),
monoammonium phosphate (MAP), calcium magnesium phosphate
fertilizer.
Potassic fertilizers: Potassium chloride, potassium sulfate.
Mixed nutrients: Blends of the above nitrogen, phosphorus, and
potassium (NPK) raw materials, or with trace elements (such as
boron, zinc, iron compounds) added.
Q&A
Q: Does your factory offer after-sales service for the equipment sold?
A: Yes. We provide after-sales service coverage for all equipment
purchased from our factory.
Q: How much NPK fertilizer can a drum granulator produce in one year?
A: The TIANCI drum granulator can produce 10,000 to 600,000 tons of
NPK compound fertilizer annually. To meet customers' demands for
higher output, we offer customization services.
Q: Could you please confirm whether installation services for the
drum granulator are available following its purchase?
A: Yes. After the equipment arrives at your factory, we will send
experienced engineers to your site to provide installation guidance
and ensure the equipment operates normally.
Q: Could you please specify the hourly output range of your drum
granulator?
A: The standard hourly output of our drum granulator ranges from 1 to
25 tons. If you have higher output demands (e.g., over 25 tons per
hour), we can tailor a customized solution based on your specific
production needs.
