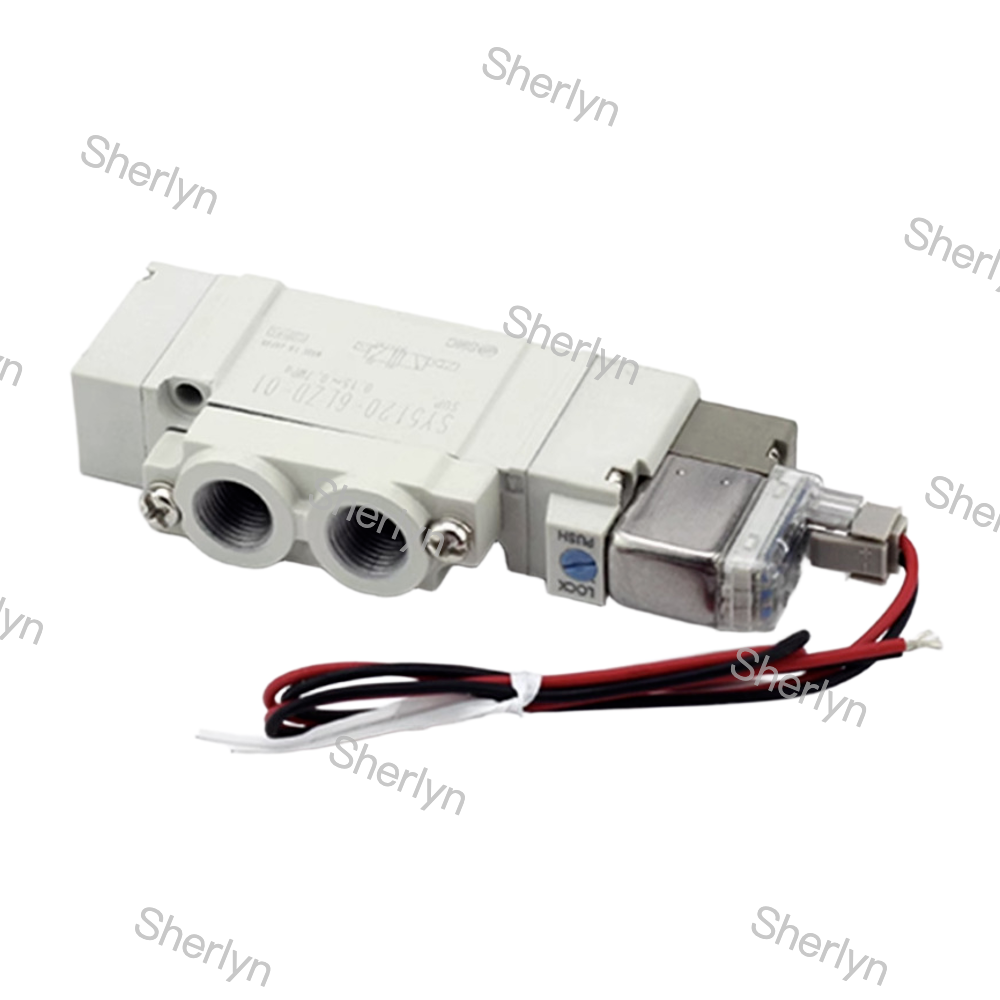

Product Description:
The SMC SY series solenoid valves consist of sub series 5,
including SY3000, SY5000, SY7000, and SY9000, each tailored with
specific performance parameters to cater to different application
requirements. Considered a fundamental component in pneumatic
control for industrial automation, the SMC SY series is recognized
for its reliability, compact design, low power consumption, and
exceptional flow characteristics.
Core structure and working principle:
The SY series operates on a pilot operated principle, where pilot
pressure is generated using a small solenoid valve to actuate the
main spool for directional changes. This innovative design allows
for control of a larger airflow with minimal electromagnetic force,
resulting in reduced power consumption and rapid response times.
The valve body is designed with five ports (1 pressure inlet, 2
working ports, 2 exhaust ports), making it ideal for managing the
reciprocating motion of double-acting cylinders. With a centralized
exhaust system, the SY series helps minimize oil mist discharge and
noise levels, ensuring a clean working environment.
Applications:
The SMC SY series solenoid valve , known for its compact , efficient , and reliable characteristics, finds extensive use in pneumatic control systems across various industrial automation fields . This is particularly true in scenarios where directional control
of dual acting cylinders is required.
Industrial automation production line: The SY series solenoid valves serve as a crucial component in this realm, playing a key role in
controlling the direction changes and actions of different pneumatic actuators (e.g., cylinders, pneumatic motors, pneumatic grippers). They are
essential for enabling motion control in automated production
lines, assembly equipment, material handling, robotic arms, and
other related areas.
Automobile manufacturing industry: In automobile manufacturing plants, models like the SY5120 are used to govern the movement of welding robot arms. The valves'
prompt response and high reliability contribute to higher
production efficiency and reduced rates of equipment failure.
Food and packaging industry: Food processing plants and packaging lines rely on models such as
the SY7120-6LZD-M5 for pneumatic actuator control in food packaging processes. With
exceptional sealing capabilities and resistance to pollution, these
valves adhere to stringent food safety standards.
Paper making and vacuum technology: The SY series solenoid valves find utility in sectors like paper production and vacuum
technology. Their placement on a unified pallet supports
centralized gas supply and individual solenoid valve control,
easing maintenance tasks and enhancing production efficiency.
Other industrial fields: Besides the mentioned applications, these valves are prevalent in
nearly all industrial settings that necessitate pneumatic control
involvement, including metallurgy, chemical industry, electronic
equipment, textile machinery, and more.
- Type
Solenoid Valves
- Application
Single Use
- Number of Ports
5-Port Valve
- Mounting Orientation
Direct
- Specifications
Standard / Lubrication Free
- Number of Solenoids
Double
- Switching Type
2-Position Exhaust
- Status at Power Off
Self-Retaining
- Voltage
DC12V
- Pipe Port Type
One-Touch Plumbing
Support and Services:
SMC offers comprehensive product technical support and services for
their Solenoid Valves. Customers can access resources such as user
manuals, troubleshooting guides, and technical specifications to
assist with installation, operation, and maintenance of the
Solenoid Valves. Additionally, SMC provides training programs and
expert assistance to help customers optimize the performance and
reliability of their valve systems.
Packing and Shipping:
Product Name: SMC Solenoid Valves
Description: High-quality solenoid valves manufactured by SMC
Corporation.
Features: Durable construction, reliable performance, easy
installation.
Package Includes: Solenoid valve, user manual, installation
instructions.
Shipping: This product will be carefully packaged to ensure its
safe delivery to your location. We offer fast and reliable shipping
services.
