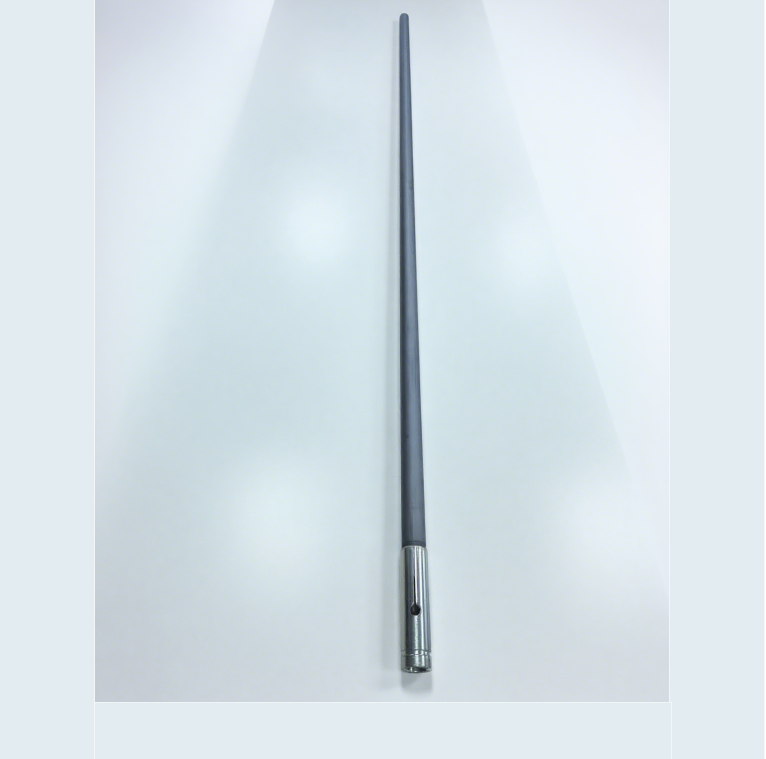

High-Performance Refractory Material/Intelligent Control System
for Roller Hearth Kiln
Description:
This product is a high-performance refractory material or
intelligent control system specifically designed for roller hearth
kilns. It aims to enhance the production efficiency, energy
utilization, and product quality stability of roller hearth kilns.
As a core component of roller hearth kilns, this product combines
advanced material science with automation control technology,
enabling it to withstand the harsh conditions of high-temperature,
high-speed, and continuous production. It is widely applied in
roller hearth kiln production lines across various industries,
including ceramics, building materials, metallurgy, and chemicals.
Typical application:
Primarily used in roller hearth kilns:
1.Ceramics Industry
2.Building Materials Industry
3.Metallurgical Industry
4.Chemical Industry
This product can also be customized according to specific needs,
making it adaptable to other industrial fields requiring
high-temperature continuous processing, such as electronic
materials and new energy materials, demonstrating its versatility
and flexibility.
Feature:
1.Exceptional High-Temperature Resistance
2.Efficient Heat Conduction and Insulation Performance
3.Intelligent Control System (if applicable)
4.Easy Maintenance and Long Service Life
The physical properties of pressureless sintered silicon carbide
ceramics products:
| Physical properties | Unit | SSiC |
| Composition:SiC | Vol% | ≥98 |
| Density 20 ℃ | g/cm3 | ≥3.06 |
| Open Porosity | Vol% | ≈0 |
| Hardness | Rockwell Hardness 45N | R45N | 93 |
| Vickers Hardness HV1 | kg/mm2 | 2350 |
| Flexural Strength | 20°C | MPa | 320-400 |
| 1300°C | MPa | 300-400 |
| Coficient of Thermal Expansion | 10-6K-1 | 4.0 |
| Thermal shock resistance | ℃ | ＞350 |
| hermal Conductivity | 20°C | Wm-1K-1 | 196 |
| 1200°C | Wm-1K-1 | 60 |
| Modulus of Elasticity @ RT | GPa | 410 |
| Max. Service Temp (air) | ℃ | 1650 |
