PVC Insulated PV Solar Cable 1 Core Heat Resistant PV Solar Panle Cable

APPLICATION

• ‌Photovoltaic (PV) Power Plants‌: Used for interconnecting solar panels, inverters, and combiner boxes in utility-scale solar farms. Designed to withstand extreme outdoor conditions, including prolonged UV exposure and temperature fluctuations (-40°C to +120°C)
• Rooftop Solar Systems: Critical for residential/commercial installations where cables are routed through high-heat zones (e.g., under sun-exposed roofs).Ensures uninterrupted power transmission despite thermal expansion/contraction‌
• ‌High-Voltage DC Connections:Supports 1000V–1500V DC systems between solar arrays and inverters, with XLPE insulation for enhanced dielectric strength‌
• ‌Harsh Environments:Deployed in deserts (heat resistance up to 120°C) and coastal areas (anti-corrosion tinned copper conductors)‌. Armored variants protect against mechanical stress in industrial settings‌
• ‌Off-Grid/Remote Systems:Powers weather stations or rural electrification projects, leveraging durability for minimal maintenance‌.

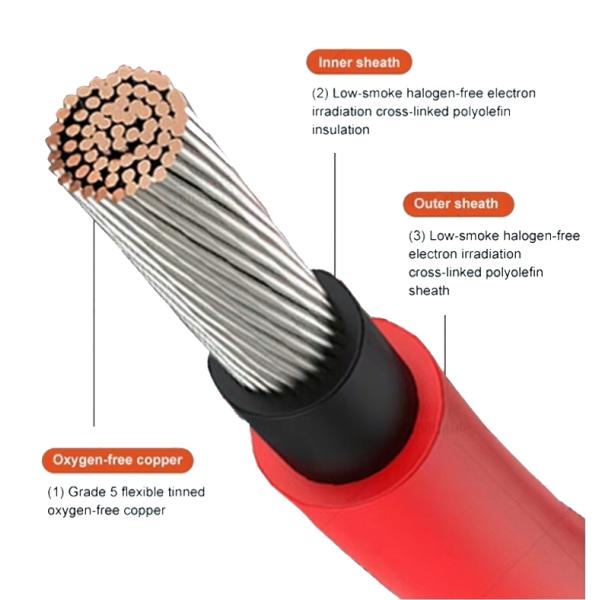

CONSTRUCTION

• Conductor: Class 5 tinned copper conductors
• Insulation: Halogen free flame-retardant insulation material for solar cables
• Outer sheath:Halogen free flame retardant sheath material for solar cables

CHARACTERISTIC

• Voltage Rating: Uo/U:0.6/1kV Um:1.8kV
• Maximum operating temperature of conductor:+120℃
• Operating ambient temperature: -40℃~+905℃
• Cable laying temperature:Not less than -25℃
• Minimum Bending Radius: 6D

SPECIFICATIONS

OUR FACTORY

PROJECTS

PARTNER

FAQ

Q:Are they UV-resistant for outdoor use?‌

A: Yes, featuring ‌dual-wall UV-resistant jackets‌ (compatible with TUV 2 PfG 1169/08.2007) to prevent degradation from prolonged sun exposure.

Q‌:What conductor material is used?‌

A:Tinned stranded copper‌ (Class 5 per IEC 60228) for corrosion resistance and high conductivity

Q‌:Are these cables flame-retardant?‌

A:Halogen-free, flame-retardant (per IEC 60332-1), and low-smoke for safety in fire-prone areas

Q:What certifications ensure reliability?‌

A:Compliant with ‌TUV 2 PfG 1169/08.2007, IEC 62930, and EN 50618‌

Q:Can they be used in humid environments?‌

A:Yes, with ‌moisture-resistant XLPE insulation‌ and 85% humidity tolerance (per EN 60068-2-78)

Q: What is the expected lifespan?‌

A‌: 25+ years‌ under standard conditions, with accelerated aging tests confirming durability

Q‌: Are they suitable for direct burial?‌

A: Armored variants support direct burial, though standard cables require conduit in high-stress zones
