12-1/4" Spiral integral blade stabilizer 8-1/4" OD body with 6-5/8" Reg. box down and box up

    Buy cheap 12-1/4

    Buy cheap 12-1/4
    • Buy cheap 12-1/4

    12-1/4" Spiral integral blade stabilizer 8-1/4" OD body with 6-5/8" Reg. box down and box up

    Ask Lasest Price
    Brand Name : China Brand
    Model Number : 16" String/Near Bit Stabilizer
    Certification : API 7-1
    Payment Terms : T/T
    Delivery Time : 20-40 days
    • Product Details
    • Company Profile

    12-1/4" Spiral integral blade stabilizer 8-1/4" OD body with 6-5/8" Reg. box down and box up

    12-1/4" Spiral integral blade near bit/string stabilizer, 8-1/4” OD body with 6-5/8” Reg. box down and box up.


    Product Specifications
    AttributeValue
    Material4145H
    Blade typeIntergal Blades
    Hard FacingHF1000-HF5000
    Connection6 5/8" Reg.
    Detailed Specifications
    AttributeValue
    Stabilizer TypeNear Bit/String Spiral Welded Blade
    OD12 1/4 inches
    Fishing Neck8 1/4 inches
    Connection6 5/8" Reg. box down and box up
    Application
    We supply a complete line of downhole drilling stabilizers to increase rate of penetration and control hole deviation problems. All stabilizers (including spiral blade, straight blade, integral blade, welded blade, sleeve-type, and stainless steel nonmagnetic types) are designed to meet or exceed strict quality control standards. All alloy stabilizers are manufactured from AISI 4145H modified heat-treated steel for various configurations and hole sizes.
    Five Kinds of Hard Facing
    • HF1000: Crushed tungsten carbide inserts (TCI) held in a nickel bronze matrix
    • HF2000: Trapezoidal tungsten carbide inserts (TCI) held in a sintered carbide nickel bronze matrix
    • HF3000: Embedded with trapezoidal tungsten carbide inserts (TCI) spray welded on the blades
    • HF4000: Tungsten carbide inserts (button type) pressed tightly in the holes of blades at room temperature
    • HF5000: Oxy-acetylene process applies tough molten carbide particles of varying sizes in a nickel chrome matrix
    Technical Datasheet

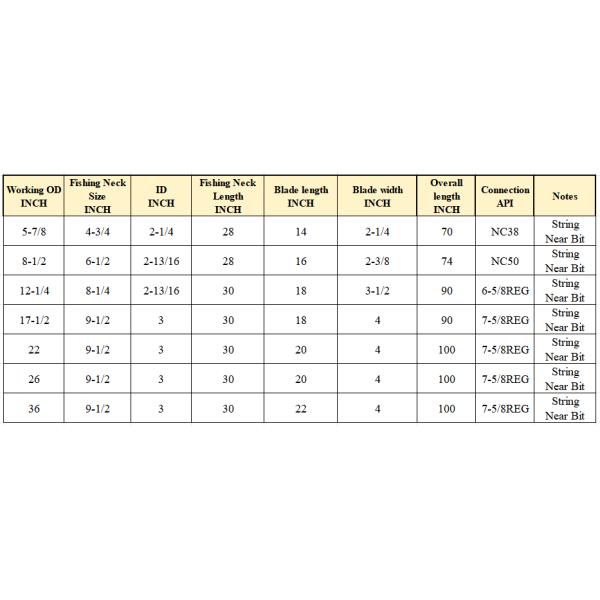

    22 Spiral Welded Blade Stabilizer technical specifications diagram
