Products are used in industrial control system, household appliances, office system, and consumer electronics.

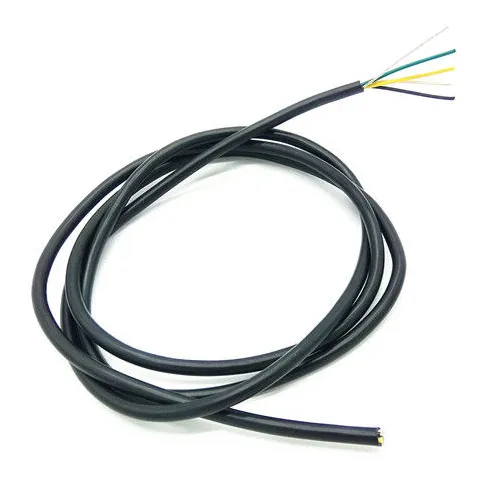

Application: Internal wring or external interconnection of electronic equipment. Application standard: UL758&UL1581&CSA C22.2 No.210Product character:Excellent insulation performance, stable chemical properties Pass UL VW-1 and CSA FT1 vertical flame testHeat resistance, anti-acid and environmental protection etc.Constructure:Tinned or bare copper, stranded or single conductor, 30-4/0AWGPE or PP insulationTwo or more single-core wire are twistedTinned or bare copper wire, spiral or braid shield or Al-mylar
wrapped shieldFRPE jacketTechnical parameter:Rated temperature : 60ºC ,80ºCRated Voltage: 30V| Product Number | Conductor | Insulation | Shield | Jacket | Max. Cond. Resistance (200C)
Ω/km |
| | core | Size AWG | NO./mm | Conductor
Dia .
mm | Nom. Thickness
mm | Nom. Dia.
mm | m/n/d | Nom. Thick.
mm | Nom.
Dia.
mm | |
| HT21089**001 | 10C | 28 | 7/0.127 | 0.38 | 0.20 | 0.78 | 16/6/0.12 | 0.65 | 5.10 | 223 |
| HT21089**002 | 10P | 28 | 7/0.127 | 0.38 | 0.20 | 0.78 | 16/8/0.12 | 0.70 | 6.60 | 223 |
| HT21089**003 | 8C | 28 | 7/0.127 | 0.38 | 0.20 | 0.78 | 16/6/0.12 | 0.60 | 4.60 | 223 |
| HT21089**004 | 6P | 28 | 7/0.127 | 0.38 | 0.20 | 0.78 | 16/7/0.12 | 0.60 | 5.60 | 223 |
| HT21089**005 | 6C | 26 | 7/0.16 | 0.48 | 0.20 | 0.88 | 16/6/0.12 | 0.60 | 4.40 | 140 |
| HT21089**006 | 4P | 26 | 7/0.16 | 0.48 | 0.20 | 0.88 | 16/6/0.12 | 0.60 | 5.20 | 140 |
| HT21089**007 | 4C | 22 | 17/0.16 | 0.76 | 0.20 | 1.16 | 16/6/0.12 | 0.55 | 4.20 | 55.4 |
| HT21089**008 | 2C | 18 | 41/0.16 | 1.18 | 0.25 | 1.68 | 16/7/0.12 | 0.60 | 5.40 | 21.8 |
Company ProfilesFounded in 2004 with 9 million USD capital investment, our HQ
factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB
capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates,
all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety
certificates. We are working with global customers in various
fields through our well-established sales system based on the
management principal HONESTY, INNOVATION and ENVIRONMENTAL
PROTECTION.
Certificates
Production Progress
Shipping
FAQ1.Q:What can you supply?
A: We do produce consumer electronics wires, hock
up wires, industrial cables, robot cables, ev charging cables,
new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs,
Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3
weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before
mass production and final Inspection before shipment.
