Products are used in communication equipment, instruments, industrial control systems, electronic and electrical equipment.

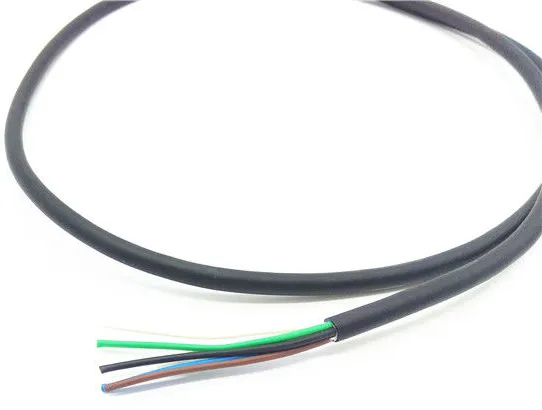

Application: For internal wiring of electronic equipment and appliance.Application standard: UL758&UL1581&CSA C22.2 No.210Product character:Excellent insulation performance, stable chemical properties Pass UL VW-1 and CSA FT1 vertical flame testHeat resistance, anti-acid and environmental protection etc.Constructure:Tinned or bare copper, stranded or single conductor, 32-4/0AWGPVC, SR-PVC, PE or PP insulation.Two or more single-core wires is twisted into pair or cabling againTinned or bare copper wire, spiral or braid shield or Al-mylar
wrapped shieldPU jacket(Halogen free material available)Technical parameter:Rated temperature : 80ºCRated Voltage: 600V , 1000V| Product Number | Conductor | Insulation | Shield | Jacket | Max. Cond. Resistance (200C)
Ω/km |
| | core | Size AWG | NO./mm | Conductor
Dia .
mm | Nom. Thickness
mm | Nom. Dia.
mm | Material | Coverage | Nom. Thick. mm | Nom. Dia.
mm | |
| HT20940**101 | 10C | 20 | 26/0.16 | 0.81 | 0.76 | 2.4 | Mylar | 80% | 0.76 | 8.40 | 35.2 |
| HT20940**102 | 7C | 18 | 41/0.16 | 1.02 | 0.76 | 2.7 | AL | 95% | 0.76 | 9.70 | 22.2 |
| HT20940**103 | 4C | 14 | 41/0.254 | 1.61 | 0.76 | 3.1 | Mylar | 75% | 0.76 | 9.50 | 8.78 |
| HT20940**104 | 3C | 12 | 65/0.254 | 2.03 | 0.76 | 3.6 | AL | 85% | 0.76 | 11.00 | 5.353 |
| HT20940**105 | 2C | 10 | 65/0.32 | 2.57 | 0.76 | 4.2 | AL | 85% | 0.76 | 10.50 | 3.48 |
Company ProfilesFounded in 2004 with 9 million USD capital investment, our HQ
factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB
capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates,
all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety
certificates. We are working with global customers in various
fields through our well-established sales system based on the
management principal HONESTY, INNOVATION and ENVIRONMENTAL
PROTECTION.
Certificates
Production Progress
Shipping
FAQ1.Q:What can you supply?
A: We do produce consumer electronics wires, hock
up wires, industrial cables, robot cables, ev charging cables,
new/green energy cables.
2.Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs,
Reach, ETL certificates.
3.Q:Can we get samples before ordering?
A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
A: Normally we can finish you orders in 2-3
weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
A: Always a pre-production sample before
mass production and final Inspection before shipment.
