Product Description:
Temperature range:
Room temperature membranes are typically suitable for environments
ranging from -25 ° C to 85 ° C.
High temperature membranes can be used in the temperature range of
-25 ° C to 230 ° C.
Lifespan: Generally speaking, the service life of Watson pulse
valve diaphragm can reach 5 years or withstand 1 million operating
cycles.

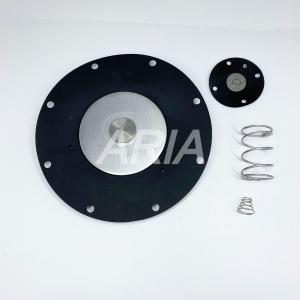

Basic structure: The diaphragm is usually a high-quality rubber
sheet, with rivet heads installed on it to block compressed air
pipelines or valve outlets. At the same time, there are bolt holes
around it for fixing support, which can divide the pulse valve into
two chambers, front and rear.
Thickness specifications: There are various thickness
specifications, commonly including 0.3mm, 0.6mm, 1.0mm, 1.5mm, etc.
Working principle related characteristics: The diaphragm is
equipped with a throttle hole. When the armature of the
electromagnetic pilot head is engaged and the pressure relief hole
is opened, the throttle hole can act as a throttle for the airflow.
When the pressure relief hole is closed, it can quickly fill the
cavity of the pulse valve with pressure gas, thereby causing the
diaphragm to close the channel and stop the pulse valve from
blowing.
Technical Parameters:
| Port Size: | 3'' |
| Color: | Black |
| Seat Material: | Nylon, Rubber, PTFE |
| Diaphragm Material: | TPE, NBR, EPDM, FKM |
| Brand Name: | WATSON |
| Product Name: | Pulse Valve Diaphragm |
Applications:
When it comes to Pulse Jet Valves, the Watson Pulse Valve Diaphragm
is a top choice for various application occasions and scenarios.
This high-quality product is designed for optimal performance and
reliability in a range of industrial settings.
The Watson Pulse Valve Diaphragm is ideal for use in dust collector
systems, gas cleaning plants, and other air purification
applications. Its versatility makes it suitable for a wide range of
industries, including cement, power generation, steel production,
and more. Whether you need to control the flow of air, gas, or
dust, this pulse valve diaphragm is up to the task.
With its CE certification, you can trust the quality and safety of
the Watson Pulse Valve Diaphragm. The minimum order quantity is
just 1 piece, and pricing is open to negotiation, making it
accessible for businesses of all sizes. Each diaphragm is packaged
securely in a carton for protection during shipping.
Orders are processed quickly, with a delivery time of 1-7 workdays
after payment. Payment terms include T/T, Western Union, and
Paypal, offering flexibility for customers. With a supply ability
of 5000 pieces per month, you can rely on a consistent source of
Pulse Valve Diaphragms to meet your needs.
The diaphragm material options of TPE, NBR, EPDM, and FKM provide
durability and compatibility with different operating conditions.
The 3'' port size and seat material choices of nylon, rubber, and
PTFE further enhance the product's versatility and applicability in
various systems.
Choose the Watson Pulse Valve Diaphragm in classic black color for
your pulse valve needs. Its reliable performance, quality
materials, and industry-standard certifications make it a standout
choice for pulse valve applications.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Product Description: Our high-quality pulse valve diaphragm is designed to effectively
control the flow of air in pulse jet valves, ensuring optimal
performance and durability.

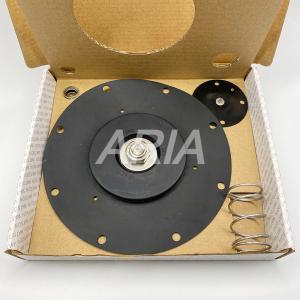

Package Includes:
- 1 Pulse Valve Diaphragm
- Installation Instructions
Shipping Information:
We offer fast and reliable shipping options for your convenience.
Your pulse valve diaphragm will be securely packaged to prevent
damage during transit.
