Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System

    Buy cheap Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System from wholesalers

    Buy cheap Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System from wholesalers
    • Buy cheap Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System from wholesalers
    • Buy cheap Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System from wholesalers

    Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System

    Ask Lasest Price
    Brand Name : RSUN or OEM
    Model Number : RSN Series
    Price : Negotiation
    Payment Terms : L/C,T/T,Western Union
    Supply Ability : 10,000PCS Per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

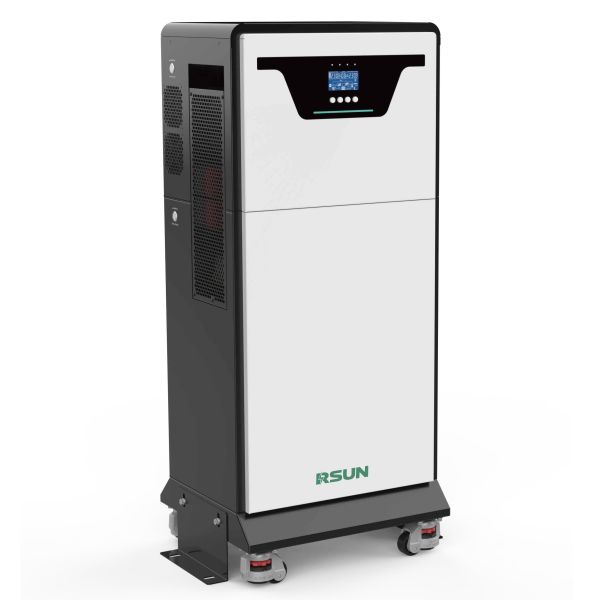

    Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System

    Stackable All-in-One ESS 3.6kWh +6kWh with wide grid input Energy Storage System


    The Stacked RSN Series by RSUN is a space-saving, floor-mounted home energy storage system with a modular battery design. Offering 3kW or 5kW output and scalable LiFePO₄ storage from 5.12kWh to 15.36kWh, it ensures reliable power for household appliances using stored solar energy.

    This all-in-one ESS includes integrated WiFi and Bluetooth for remote system monitoring and control. Its easy stackable setup, sleek design, and autonomous energy use make it a smart, user-friendly choice for modern residential solar applications.


    FEATURES:

    • Stylish all-in-one floor unit with built-in hybrid inverter and battery
    • MPPT solar controller and power source priority selection
    • Compatible with wide grid input voltage ranges
    • Advanced protections for safe and reliable operation
    • Long-life lithium battery with up to 8000 charge cycles
    • Scalable stack design for flexible energy storage
    • Smart connectivity: WiFi, Bluetooth, RS485, SNMP

    PRODUCT OVERVIEW:



    SPECIFICATIONS:

    ModelRSN 1.2kWh+4kWhRSN 3.6kWh+6kWhRSN 6kWh+10kWhRSN 11kWh+16kWh
    AC Input
    Rated Input Voltage208/220/230/240 VAC
    Input Voltage Range170~280VAC(For PC);90~280VAC(For Home Appliances)
    Frequency Range50/60Hz(Auto Sensing)
    AC Charging Current Range2-60A2-100A2-80A2-120A
    Max. Input Current10A20A26A50A
    PV Input
    Solar Charging TypeMPPT
    PV Max. Input Power1KW4KW5.5KW5.5KW*2
    MPPT Tracking Voltage Range120-430 VDC
    Max. PV Input Voltage450 VDC
    PV Charging Current Range100A0~80A
    Max. Charging Current60A100A80A160A
    Output
    Rated Output Voltage1.2kW3.6kW6.0kW11kW
    Output Voltage Range(220V~240V)±5%
    Frequency50/60Hz±0.1%
    Max. Output Current22.7A
    Peak Power2400W7200W12000W11000W*2
    Overload Capacity
    Product Description (Battery Mode)
    1min@102%~110% Load ; 10s@110%~130%Load; 3s@130%~150% Load ;200ms@>150% Load
    Peak Efficiency>94% battery mode >99% line mode
    Transfer Time10ms
    Battery
    Battery Voltage12.8VDC25.6VDC51.2vdc51.2vdc
    Battery Energy4.02kWh8.04kWh10.24kWh16.08kWh
    Cell technologyLiFePO4
    DOD80%
    Product General Data
    Designed Life-span cycle6000
    Communication InterfaceRS232, RS485, CAN(Standard),SNMP/Wifi/Bluetooth(Optional)
    DisplayLCD&LED
    Parallel InterfaceRS485/CAN/RS232/SNMP/WIFI/Bluetooth
    Operation Environment
    Temperature
    0~40℃
    Environment Humidity-15~60℃
    Operation Altitude<3000m
    Cooling ModeActive Cooling
    Noise Emission<50db

    FAQ:

    Q1: Can I get a sample to test?
    A: Absolutely. Samples and mixed model orders are welcome.

    Q2: How fast can you deliver?
    A: Samples in 5 - 7 days. Bulk orders take around 3 - 4 weeks.

    Q3: What’s the smallest order I can place?
    A: Just 1 unit to start.

    Q4: What’s the shipping method and timing?
    A: Express or sea freight. Delivery time varies by region.

    Q5: How do I order?
    A: Tell us your needs, Receive quote, Confirm order, Production begins.

    Q6: Can I customize branding?
    A: Yes, OEM service is fully supported.

    Q7: What’s the warranty policy?
    A: 5 - 10 years depending on the model and agreement.
