    28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles

    Ask Lasest Price
    Brand Name : UCHI
    Model Number : 30JM30K/B2847
    Certification : Completed
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 5000pcs stcoks
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles

    30JM30K/B2847 28mm OD Standard Gearbox BLDC Planetary Gear Motor 4 Poles
    Features
    1.Brushless motor built-in driver, with a positive inversion, speed control, brake (brake) function.
    2.28mm OD Planetary Gearbox,
    Permissible Load Range: 0.3N.m~3.0N.m
    Dimensions


    Brushless Motor Technical Data


    TYPENumber
    of poles
    Number
    of phase
    Operating
    Range
    Rated
    voltage
    VDC
    No- load
    speed
    r/min
    No- load
    current
    mA
    Rated
    torque
    g.cm
    Rated
    speed
    r/min
    Rated
    current
    mA
    Rated
    power
    W
    B2847-1273439V~ 16V12730027013055001307.3
    B2847-2473439V~26V2473001801306000708.0

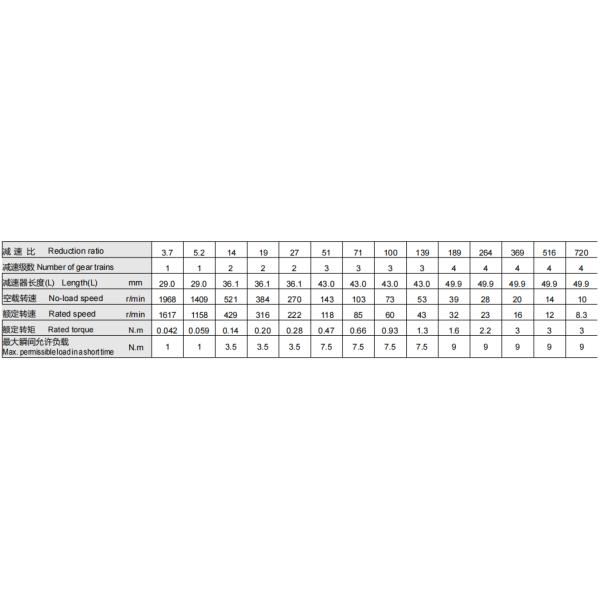

    Brushless Gear Motor Technical Data


    1.B2847-1273 BLDC Motor

    2.B2847-2473 BLDC Motor

    Wire Diagram



    PIN 1# (Blue) Brake control
    PIN 2# (Orange) PWM speed regulation: Input a 20~30kHz PWM signal, and adjust the motor speed by adjusting the duty cycle.
    PIN 3# (Black) Negative pole of power supply
    PIN 4# (White) Forward and Reverse Rotation: Suspended steering is CCW, short circuited to ground steering is CW.
    PIN 5# (Green) Feedback n=60 * F/P, where F is the feedback frequency and P is 4 pairs of motor pole pairs.
    PIN 6# (Red) Positive pole of power supply
    Connection line length 200mm
