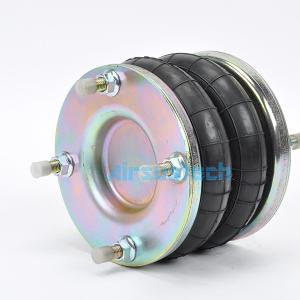

Dunlop SP1482 Double Convoluted Air Cylinder FD 76-14 DI CR
Contitech Rubber Air Spring
OEM NO.
ContiTech: FD 76-14 1/2 M10
ContiTech: FD 76-14 DS G1/2
ContiTech: FD 76-14 DS G1/2 CR
ContiTech: FD 76-14 DS CR G1/2
ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Norgren: M/31062 / M 31062 / M31062
Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
Dunlop FR: SP1482
Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
Double Convoluted Air Spring 2B180-115 D185
Double Convoluted Air Spring 2B180-115 D185
Replaces These Air Springs (Air Bellows)
Specifications and Detailed Technical Parameters: 6×2
Top plate screw (nut) teeth: 4×M10
Screw (nut) teeth of the bottom cover plate: 4×M10
The screw center distance:127mm
- Air hole/air inlet/air fittings
Air hole/air inlet: G1/2
Top plate diameter (width): 153.5 mm
Diameter (width) of the bottom cover plate: 153.5 mm
Material top and bottom plate: aluminum
Bell rubber bellows
Maximum diameter at 7 bar: 175MM
Rubber bellows stroke: 80mm-195mm
Required installation space: 190mm
- Bumper block/bumper block
Without bumper block
With belt loop: One belt loop
Min. pressure: 0 bar
Return force to min.height: ≤180N
Overall weight with clamped plates: 2.6kg
Air springs exhibit nonlinear characteristics, with their stiffness
varying with load. This allows their natural frequency to remain
nearly constant under any load, resulting in a virtually unchanging
spring mechanism. They also offer excellent high-frequency
vibration absorption and sound insulation. They can withstand both
axial and radial loads, and their load-bearing capacity can be
adjusted by adjusting the internal pressure.
Therefore, they can adapt to a wide range of load requirements.
Within their effective travel, air springs can adjust their
stiffness, height, cavity volume, and load capacity by increasing
or decreasing the inflation pressure. Simultaneously, their
stiffness, height, cavity volume, and load capacity undergo smooth,
cyclical, flexible changes as the load increases or decreases,
enabling flexible load transfer, effective travel adjustment, and
efficient control of vibration amplitude and load. Additional air
chambers can be added, utilizing a solenoid valve and air pump for
automatic adjustment.
Due to these characteristics, air springs are increasingly used in
equipment and instruments requiring travel control, vibration
damping, or seismic isolation, such as trains, automobiles,
papermaking machines, lifting platforms, presses, vibrating
conveyors, vibrating screens, air hammers, vibration testing
machines, and foundry machinery.
Other Kind of Flange Air Spring
| Part No. | Gas Hole | Screw |
| FS 76-7 DS | G1/2 | M10 |
| FS 138-8 DS | G1/2 | M10 |
| FS 210-10 DS | G1/2 | M10 |
| FS 412-10 DS | G1/2 | M10 |
| FS 614-13 DS | G1/2 | M10 |
| FS 816-15 DS | G1/2 | M10 |
| FD 76-14 DS | G1/2 | M10 |
| FD 138-18 DS | G1/2 | M10 |
| FD 209-21 DS | G1/2 | M10 |
| FD 210-22 DS | G1/2 | M10 |
| FD 412-18 DS | G1/2 | M10 |
| FD 614-26 DS | G1/2 | M10 |
| FT 76-20 DS | G1/2 | M10 |
| FT 138-26 DS | G1/2 | M10 |
| FT 210-32 DS | G1/2 | M10 |
| FT 412-32 DS | G1/2 | M10 |
| FT 614-36 DS | G1/2 | M10 |
The Related Picture of 2B6×2T
