    GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : GF 40/60-1
    Certification : ISO/TS16949:2009
    Price : $89.9-119.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator

    GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator

    Product Description


    Item: Single Convoluted Type Industrial Air Spring

    Brand: GUOMAT

    Model Number: GF 40/60-1

    Bellows Number: 2.75X1

    Warranty: 12 Months

    Main Material: Rubber

    Position: Industrial Machine

    Function: Reduce Vibration, Cushioning


    OE Manufacturer Number


    DUNLOP PNEURIDE: 2 3/4" x 1

    DUNLOP SPRINGRIDE: SP2906

    DUNLOP SPRINGRIDE: SP 2906

    CONTITECH: FS 22-3

    CONTITECH: FS 22-3 DI

    CONTITECH: FS 22-3 DI CR

    CONTITECH: FS 22-3 DI G1/4

    CONTITECH: FS 22-3 DI G1/4 M6


    GF 40/60-1 Technical Data


    Air Fitting: G1/4

    Blind Nut: M6X8mm

    Center Distance Between Blind Nuts: 36mm

    The Cover Plater Diameter: 78mm

    Maximum Outer Diameter: 80mm

    Maximum Height: 70mm

    Minmum Height: 50mm


    Vibration isolation - dynamic characteristic values
    Pressure Pbar345678Vol V(I)
    Force(Load)KN0.91.21.51.722.30.084
    Spring Rate CN/cm84010301230142016201800
    Natural Frequenz f0Hz4.94.74.64.54.54.4

    Pneumatic application - static characteristic values
    Forcr F (kN)
    Pressure Pbar345678Vol V(I)
    height H(mm)600.841.111.391.681.972.260.08
    501.411.782.162.532.913.30.05

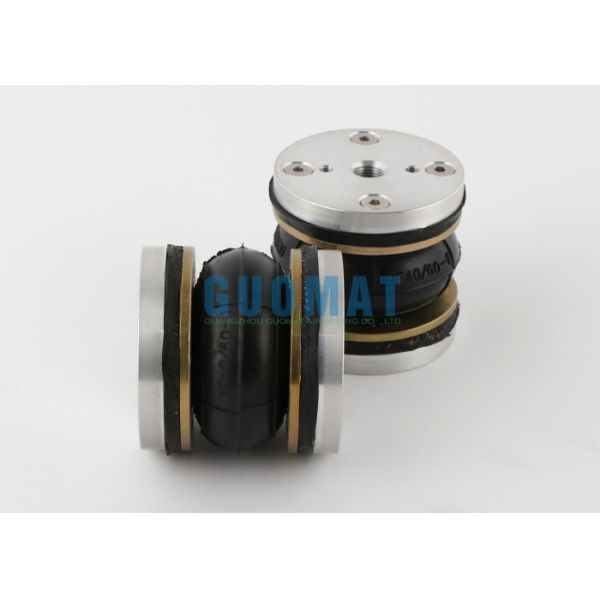

    Product Images


    Quality GF 40/60-1 Convoluted Air Springs FS 22-3 DI CR Contitech Rubber Bellow Air Actuator for sale
