    KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof

    Ask Lasest Price
    Brand Name : KACISE
    Model Number : KLF110
    Certification : CE
    Supply Ability : 1000 Piece/Pieces per Week negotiable
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof

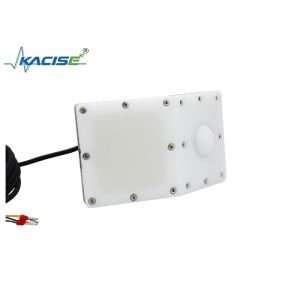

    KLF110 Radar Flow Meter
    The KLF110 radar flow meter utilizes radar technology to measure water flow velocity and level, converting these measurements through an integral model. It provides real-time, around-the-clock water flow monitoring with non-contact measurement that remains unaffected by environmental conditions.
    Key Features
    • Advanced Radar Technology: Uses mixed-band radar for non-contact measurement of flow velocity, liquid level, and flow rate simultaneously without interference
    • Low Maintenance: Not affected by sediment or other environmental factors
    • Robust Design: IP68 waterproof rating suitable for various field environments and extreme weather conditions
    • Compact & Cost-Effective: Small footprint with excellent value
    • Built-in Protection: Integrated anti-reverse connection, lightning protection, and overvoltage protection
    • Easy Integration: Supports Modbus-RTU protocol for simple system integration
    Technical Specifications
    SpecificationValue
    Speed measurement range0.1 m/s - 30 m/s
    Speed measurement accuracy±0.01 m/s (radar simulator calibration)
    Speed measurement pitch angle (auto compensation)0-80°
    Speed measurement antenna beam angle12°×25°
    Ranging blind area8 cm
    Maximum ranging distance60 m
    Ranging accuracy±1 mm
    Ranging antenna beam angle
    Power supply range9-28 VDC
    Working current25 mA @12V
    Communication interfaceRS485
    Communication protocolModbus (9600/115200)
    Operating temperature-30°C to 70°C
    Housing materialAluminum alloy, PBT
    Dimensions142 mm × 84 mm × 94 mm
    Protection ratingIP68
    Installation methodBracket
