ODM Manufactory Supply Indoor Cable Multi Mode 6 12 24 Core GJFJV
Multi-purpose distribution cable uses multiple 900μm
flame-retardant tight-buffered fibers as the optical communication
medium. Each fiber is reinforced with a layer of aramid yarn for
added strength, then completed with a durable PVC or LSZH (Low
Smoke, Zero Halogen, Flame-Retardant) jacket. The tight-buffered
fiber is manufactured by sheathing the fiber with high-quality
buffer material, available in diameters of Φ600μm or Φ900μm.
Carefully selected premium fibers, precision production equipment,
and accurately designed tools ensure excellent transmission
performance, low attenuation, and high reliability. This indoor
cable is lightweight, flexible, and easy to install, making it
ideal for building backbone networks, data centers, and FTTH
(Fiber-to-the-Home) applications.
Characteristics
Excellent mechanical and environmental performance
Flame-retardant properties comply with relevant industry standards
Jacketed design meets mechanical strength requirements
Soft, flexible, easy to install and splice, supporting
high-capacity data transmission
Designed to meet diverse market and customer needs
Optical Characteristics
|
|
G.652D |
50/125um |
625/125μm |
Attenuation |
@850nm |
|
≤3.0dB/km |
≤3.0dB/km |
(+20°C) |
@1300nm |
|
≤1.0dB/km |
≤1.0dB/km |
|
@1310nm |
≤0.36dB/km |
|
|
|
@1550nm |
≤0.22dB/km |
|
|
Bandwidth(ClassA) |
@850nm |
|
2500MHz-km |
2200MHz-km |
|
@1300nm |
|
21000MHz-km |
2600MHz-km |
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
Cable Cut-off Wavelength λcc |
|
≤1260nm | |
Cable diameter
| MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm |
Technical Parameters
| Tight Buffer Indoor Fiber Optic Cale GJFJV |
Cable
Count | Outside
Diameter | Tight
buffer
Diameter | Weight
| Minimum
allowable Tensile
Strength(N) | Minimum allowable
Crush Load (N/100mm) | Minimum Bending
Radius (MM) | Storage
temperature |
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (°C) |
| 2 | 3 | 0.9 | 15 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
4 | 5 | 0.9 | 22 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 6 | 5 | 0.9 | 23 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 8 | 5.5 | 0.9 | 28 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 12 | 6 | 0.9 | 38 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 16 | 7.2 | 0.9 | 42 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 24 | 8.3 | 0.9 | 58 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
| 48 | 10 | 0.9 | 96 | 600 | 200 | 1000 | 200 | 20D | 10D | -40+60 |
Application
Suitable for pigtails and patch cords
Ideal for equipment interconnection lines
Can be used in indoor and outdoor cabling, especially as
distribution cables
Perfect for optical connections in communication rooms and optical
distribution frames
Product Detail

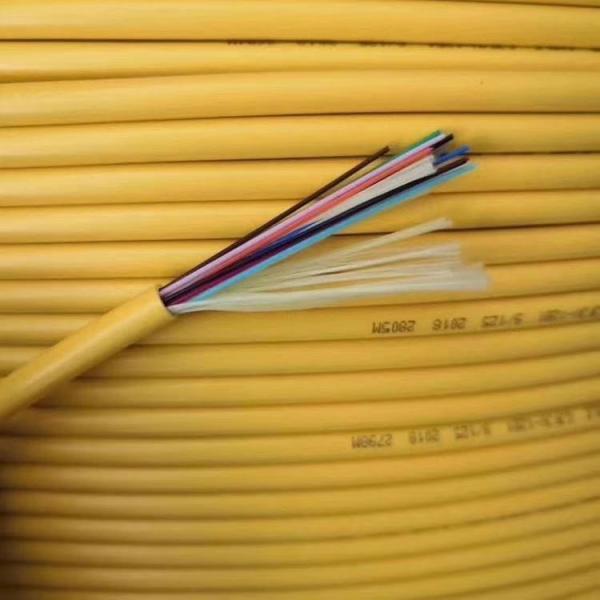

GJFJV indoor fiber optic cable is made by evenly applying strands
of Aramid yarns or High strength glass yarns as the strength member over 900μm or 600μm tight buffer
fibers and then is completed with PVC(LSZH)jacket.
Packing
2km or customized length export wooden drum
FAQ
Why choose us?
Professional manufacturer with low MOQ; free samples available
Stable high-quality products
Quick customer solutions
Competitive pricing to save costs and maximize benefits
Do you accept OEM/ODM?
Yes, we offer OEM and ODM services. Any ideas or custom
requirements from you are welcome.
Can you print our logo?
Yes, we can print your logo on the products or packaging.
What are the shipping methods?
We support all shipping methods, including express delivery, sea,
land, and air transport.
What payment methods are accepted?
We accept LC, TT, Western Union, Alipay, and other common payment
methods.
What is the delivery time?
Usually 3–7 working days, depending on order quantity. We arrange
shipment as soon as possible after payment.
