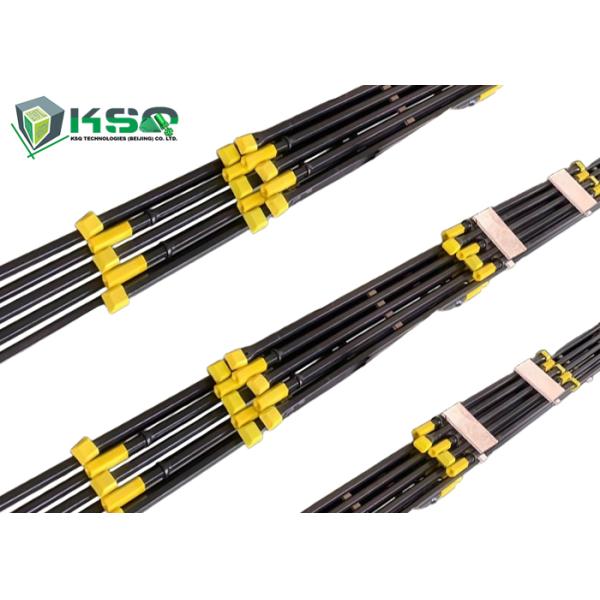

    Integral Drill Rods for Small Hole Drilling with Air Leg and Hand Held Rock Drills in Mining

    Ask Lasest Price
    Brand Name : MIROC
    Model Number : H22x108mm
    Certification : ISO
    Delivery Time : 20-30
    • Product Details
    • Company Profile

    Integral Drill Rods for Small Hole Drilling with Air Leg and Hand Held Rock Drills in Mining

    Application of Integral Drill Rods:
    The integral drill rod is used for rock drilling, blasting holes and other drilling works in the quarries, coal mines, traffic and other constructions.

    Features of Integral drill rods:
    Integral Drill Rod is used by a hand-held drill machine in underground mining for small hole drilling, equipped with small power rock drills, like air leg rock drills, hand held rock drills, etc.
    It can reduces the expense of impact energy, improves the drilling speed and efficiency, also it can be used for drilling bore hole diameter from 28mm to 41mm usually.
    According to different application, different lengths are available from 400mm to 4800mm usually.
    Regarding Integral drill steels, the quality of a steel material and a tungsten carbide is very important to get good drilling performance.

    Integral Drill Rods Specification:

    1. Head diameter: 28mm to 41mm
    2. Shank size: hex19/hex22/hex25*108mm/159mm
    3. Length: 400mm to 4800mm

    H22 x 108mm Integral Drill rod Specification

    Hex22 Chisel Bit Dia 22/24mm Plug Hole Integral Drill Rod For Small Hole 1

    Length

    Bit diameter

    Weight

    Part number

    mm

    ft

    mm

    Kg


    800

    2 5/8

    34

    3

    4148300035

    1600

    5 1/4

    33

    5.2

    4148300036

    2400

    7 7/8

    32

    8

    4148300037

    3200

    10 1/2

    31

    10.2

    4148300038

    4000

    13 1/8

    30

    12.9

    4148300039

    4800

    15 3/4

    29

    15.1

    4148300040

    5600

    18 3/8

    28

    17.6

    4148300041

    6400

    21

    27

    20.1

    4148300042

    7200

    23 5/8

    26

    22.5

    4148300043

    800

    2 5/8

    40

    3

    4148300044

    1600

    5 1/4

    39

    5.2

    4148300045

    2400

    7 7/8

    38

    8

    4148300046

    3200

    10 1/2

    37

    10.2

    4148300047

    4000

    13 1/8

    36

    12.9

    4148300048

    4800

    15 3/4

    35

    15.1

    4148300049

    5600

    18 3/8

    34

    17.6

    4148300050

    6400

    21

    33

    20.1

    4148300051

    7200

    23 5/8

    32

    22.5

    4148300052

    8000

    26 1/4

    31

    25

    4148300053

    400

    1 1/3

    34

    1.7

    4148300054

    800

    2 5/8

    33

    3

    4148600055

    1200

    4

    32

    4.1

    4148900056

    1600

    5 1/4

    31

    5.2

    4149200057

    2000

    6 5/9

    30

    6.7

    4149500058

    600

    2

    41

    2.4

    4148300059

    1200

    4

    40

    4.3

    4148300060

    1800

    6

    39

    6.2

    4148300061

    2400

    7 7/8

    38

    8

    4148300062

    400

    1 1/3

    41

    1.7

    4148300063

    800

    2 5/8

    29

    3

    4148300064

    800

    2 5/8

    38

    3.1

    4148300065

    1200

    4

    39

    4.3

    4148300066

    1600

    5 1/4

    36

    5.2

    4148300067

    1800

    6

    36

    6

    4148300068

    2000

    6 5/9

    32

    6.7

    4148300069

    2400

    7 7/8

    27

    8

    4148300070

    3200

    10 1/2

    27

    10.2

    4148300071

    3200

    10 1/2

    32

    10.3

    4148300072

    6400

    21

    30

    20.1

    4148300073

    8000

    26 1/4

    26

    25

    4148300074


    Quality Integral Drill Rods for Small Hole Drilling with Air Leg and Hand Held Rock Drills in Mining for sale
