Industrial and Commercial Energy Storage Scalable High Voltage

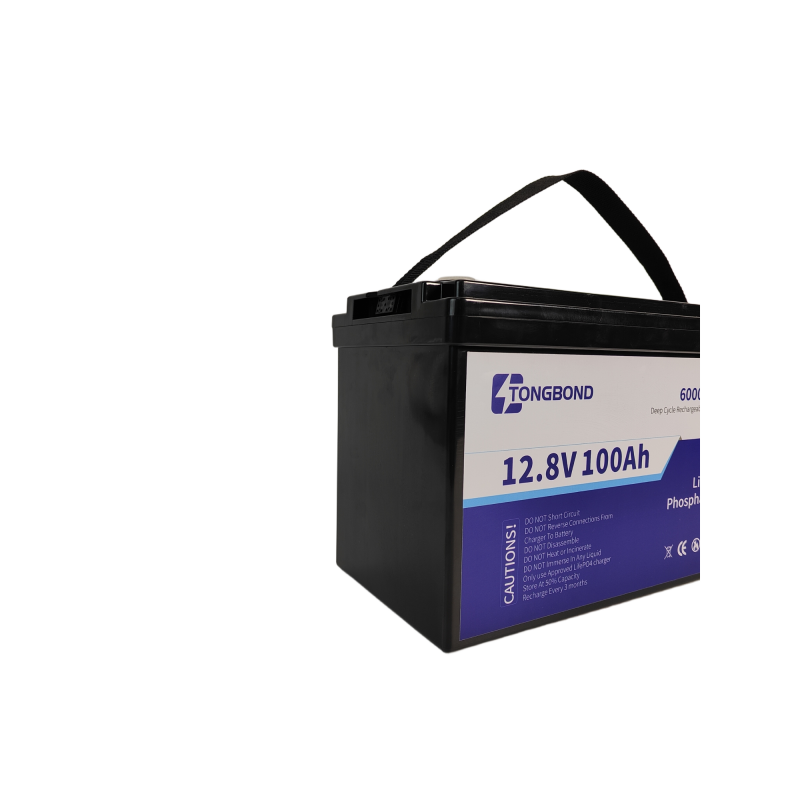

LiFePO4 System 12.8V 100Ah
The 12V 100Ah LiFePO4 battery is engineered with advanced lithium
iron phosphate chemistry and a robust Battery Management System.
This integrated BMS safeguards the battery by preventing
overcharging, over-discharging, excess current, and thermal issues,
while minimizing risks from short circuits. It also balances
individual cells for consistent performance and supports rapid
charging, ensuring both operational safety and extended cycle life.
Technical Parameters:
Charge and discharge parameter
| Charging voltage | 14.4-14.6V |
Discharge cut-off voltage | 10V±0.5V |
Maximumdischarge current | 100A |
Maximum charging current | 50A |
Operating temperature | Discharge | -20℃~55℃ |
| Charging | 0℃~55℃ |
Storage temperature | Within a mont | -20℃~45℃ |
| Within a year | 0℃~35℃ |
Series-parallel quantity | Series connection | 4 |
In parallel | 4 |
Series parallel connection diagram
Series diagram:
Packing and Shipping:
Our LiFePO4 Lithium Battery is carefully packaged to ensure safe
delivery to our customers. Each battery is securely wrapped and
placed in a sturdy box with appropriate cushioning materials to
prevent damage during transit.
For shipping, we partner with reliable courier services to deliver
your order efficiently and securely. All shipments are tracked to
provide you with real-time updates on the status of your delivery.
FAQ:
Q1: How long can the battery run my appliances?
A: For example, a 51.2V 200Ah (≈10kWh) battery can run a 100W light
for about 100 hours or a 500W fridge for about 20 hours. Actual
time depends on load and inverter efficiency.
Q2: Is the system noisy during operation?
A: No, lithium battery storage systems are silent, unlike fuel
generators. Only small cooling fans may be heard.
Q3: Can I install it by myself at home?
A: Smaller units (like wall-mounted models) are user-friendly, but
for larger high-voltage systems, we recommend professional
installation for safety.
Q4: Is it safe to use indoors?
A: Yes, LiFePO4 chemistry is stable and safe. With built-in BMS
protection against overcharge, overheating, and short circuits,
it’s safe for home or business use.
Q5: Can I connect it with solar panels?
A: Yes, it integrates easily with solar panels and inverters, so
you can store excess solar power during the day and use it at night
or during outages.
