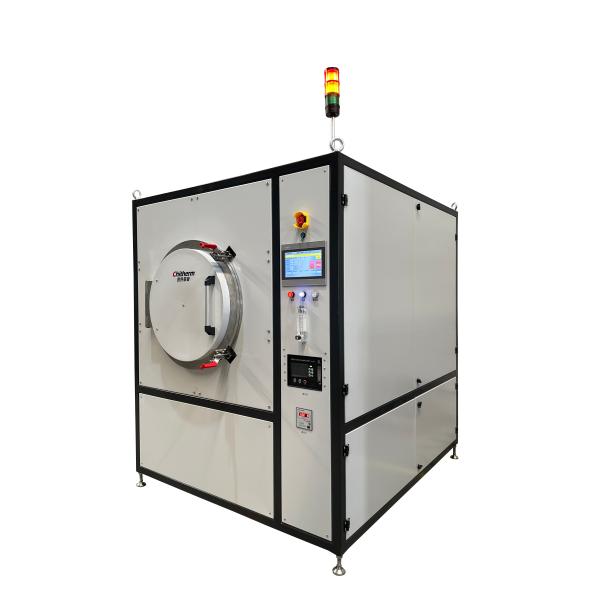

I. Equipment Composition
The equipment consists of the following main components:
•Outer frame
•Heating furnace
•Vacuum chamber
•Sealing door
•Vacuum system
•Atmosphere system
•Control system
•Common Temperature: 1000°C
•Maximum Temperature: 1100°C
•Temperature Stability: ±1°C, with PID parameter self-tuning
function
•Temperature Uniformity: ±5°C (at 1000°C platform, constant
temperature for 1 hour, empty furnace test, with reserved
inspection port)
•Maximum Heating Rate: 10°C/min
•Temperature Control Points: 3 points; Temperature Control
Thermocouple: N-type
•Additional Independent Temperature Measurement Points: 1 point;
with reserved temperature measurement holes for customer's own
temperature measurement
Tank and Structural Parameters
•Tank Material: Inconel 601
•Tank Dimensions: Φ630×900 (diameter × depth, unit: mm)
•Effective Uniform Temperature Zone Dimensions: 400×400×500mm
(width × height × depth)
•Material Support Method: Bottom support plate inside the tank,
load capacity ≥40kg, with 2 workbenches
Heating System
•Heating Elements: FEC ceramic fiber heaters, arranged outside the
furnace chamber, lifespan ≥10,000 hours
•Maximum Heating Power: 48kW
•Typical Empty Furnace Insulation Power: ≤20kW
Control and Program Functions
•Program Steps: 30 steps
Atmosphere and Vacuum Parameters
•Sintering Atmosphere: Argon or air
•Oxygen Content: Better than 10ppm + oxygen content of gas source
•Oxygen Monitoring: Equipped with a micro-oxygen analyzer to
monitor oxygen content in the furnace in real-time (not available
in air state)
•Ultimate Vacuum Degree: ≤100Pa, evacuation time ≤10 minutes
Cooling System
•Cooling Method: External forced cooling with blower
•Cooling Rate: When below 500°C, cooling rate ≥2°C/min
Safety Protection and Alarms
•Alarm Protection Functions: Including overtemperature,
thermocouple break, low air pressure, low water pressure, vacuum
degree not meeting standards, etc., with audible and visual alarms
•Protection Function: Overtemperature heating cutoff protection
function
Basic Equipment Information
•Equipment Weight: Approximately 1000 kg
•Equipment Color: Light gray
•Reference External Dimensions: 1500×1900×1800 mm (width × height ×
depth), specific dimensions subject to actual product
IV. Delivery List
| Table 1 Delivery list |
| Item | Note | Qty. |
| Basic Components | Furnace |
| 1 Unit |
| inspection certificate | Certificate of major outsourced components | 1 Set |
| Technical Documents | Instructions, technical documents of the major outsourced parts,
etc | 1 Set |
| Key Components | Heating Element |
| 1 Set |
| Vacuum system |
| 1 Unit |
| Temperature control module |
| 1 Unit |
| Oxygen Analyzer | Nanoaonai | 1 Unit |
| Touch Screen |
| 1 Unit |
| Spare Parts | SSR |
| 1 PC |
1.Temperature range: -10~+50ºC
2.Humidity: 10%-95% R.H. (at 95% R.H., the temperature is 35ºC)
3.Pressure: 90~105 kPa
