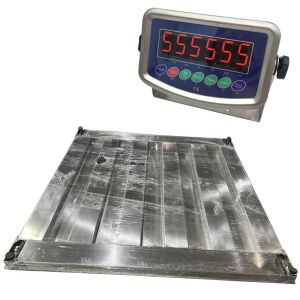

Material Multi-function Weighing 1t Digital Electrical Floor Scale with Optional Platform Size and 40mm Digit Height

Add to Cart

Contact us now to get the exact price according to your needs.

40mm digit height weight scale 1t digital electrical floor scale with rs232

Main Features:

Internal Resolution 1,000,000
6 digit display, 7 functional keys
Digit height: 30mm (LED), 40mm(LCD)
Good software technology to enhance the instrument’s vibration resistance ability
Auto screen protection and auto power off function
Counting and animals weighing function
HI-LO limit alarm function
Accumulation, percentage weighing
Peak value holding function
Optional: RS232 port, USB or bluetooth port

Technical Parameter:

Load Cells	Up to 4 load cells of 350Ω
Excitation Voltage	DC 5V
Full Scale Input Signal Range	1~10mV
Zero Point Input Signal Range	0~5mV
Unit	kg, lb
Power Supply
External Power Supply	AC100~240V
Battery	6V/4Ah

Scale Body Specifications:

Model NO.	Capacity	Length (mm)	Width (mm)	Platform to Ground Height (mm)	Product Weight (kg)
XH8720-1010-1~3t	1~3t	1000	1000	110	65
XH8720-1010-5t	5t	1000	1000	110	65
XH8720-1012-1~3t	1~3t	1000	1200	110	80
XH8720-1012-5t	5t	1000	1200	110	80
XH8720-1212-1~3t	1~3t	1200	1200	110	100
XH8720-1212-5t	5t	1200	1200	110	100
XH8720-1215-1~3t	1~3t	1200	1500	110	125
XH8720-1215-5t	5t	1200	1500	110	125
XH8720-1515-1~3t	1~3t	1500	1500	110	150
XH8720-1515-5t	5t	1500	1500	110	150
Customized size is acceptable

Big Digit Weight Indicator help reading weight easily.

40mm digit height weight scale 1t digital electrical floor scale with rs232

We only use 5mm and 6mm platform plate for regular size floor scales!
