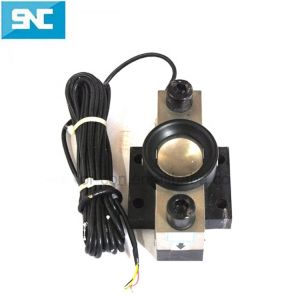

    Competitive C2 Accuracy Class Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67 Weight Sensor for Truck Scale

    Ask Lasest Price
    Model Number : SC9
    Brand Name : SNC
    Supply Ability : 1000 Piece/Pieces per Month
    Price : $55/units 4-39 units
    • Product Details
    • Company Profile

    Competitive C2 Accuracy Class Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67 Weight Sensor for Truck Scale

    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67

    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67


    Feature:


    Model: SC9

    Capacity:10-50T

    Voltage: 10-15V

    Type: super beam load cell with side connector

    Application: weighbridge, on board truck scale, weigh balance


    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67


    Product Description

    Capacity10T, 20T, 25T, 30T, 40T,50T
    rated output2.0±0.004mV/V
    Accuracy classC2 C3
    maximum number of verification intervals2000 Nmax 3000 Nmax
    Minimum loadcell certification intervalsEmax/5000Vmin Emax7500 Vmin
    Combined error≤±0.030 % RO ≤±0.020 % RO
    Creep0.03 %RO/30min 0.02 %RO/30min
    Temp. effect on sensitivity0.003 %RO/℃ 0.0016 %RO/℃
    Temp.effect on zero0.003%RO/℃ 0.002%RO/℃
    Zero balance±1.0 %RO
    Input resistance700±3 ohm 2050±10 ohm (optional)
    Output resistance700±5 ohm 2000±10 ohm (optional)
    insulation resistance5000 MΩ(50V)
    Recommended excitation voltage5-18V
    Compensated temperature range-10-+40℃
    operating temperature range-30-+70 ℃
    safe overload150 %RO
    Ultimate overload250%RO
    loadcell materialAlloy steel
    Connecting cable10-20T: Φ6.3x12m
    25-30T: Φ6.3x16m
    40-50T: Φ6.3x18m
    Method of connecting wireRed- input+, black- Input-. Green- Output+, White- output -

    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67


    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67

    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67


    Related Products

    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67


    Sensorcon Product Lists
    Strain GaugeLoad CellTorque SensorDisplay
    Linear Strain gauge-AAWireless sensorSlip ring rotary torque sensorPlatform scale display
    Half bridge strain gauge-BB,HA,GB,FBMicro load cellContactless rotary torque sensorTruck scale display
    Shear/torque strain gauge-AB,HASingle point load cellStatic torque sensorController
    Full bridge strain gauge-EB, FG,FDButton load cellMetersJunction box
    Tee Rosettes strain gauge-CA,BAShear beam load cellCouplingBig screen display
    Round type strain gaugeS type load cellAmplifier
    Semi-conductor strain gaugeColumn load cell
    Bridge type load cell

    Production Process

    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67

    Company Information

    Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.


    Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67

    Packaging & Shipping

    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67

    Why Choose Us

    SC9 Weight Sensor For Truck Scale Double End Beam Type Bridge Load Cell 10T 20T 30T 40T 50T IP67

    FAQ

    1.How to place an order ?
    Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

    2.Does SNCoffer any discount ?
    Yes, if you buy large QTY, please contact us, we will give you a big discount.

    3.What terms of payment are available ?
    We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

    4.When will you arrange the production ?
    We will arrange the production immediately after receiving your payment.

    5.How do you ensure good product quality ?
    We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

    before shipping to our clients.

    6.Do you have warranty ?
    Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
